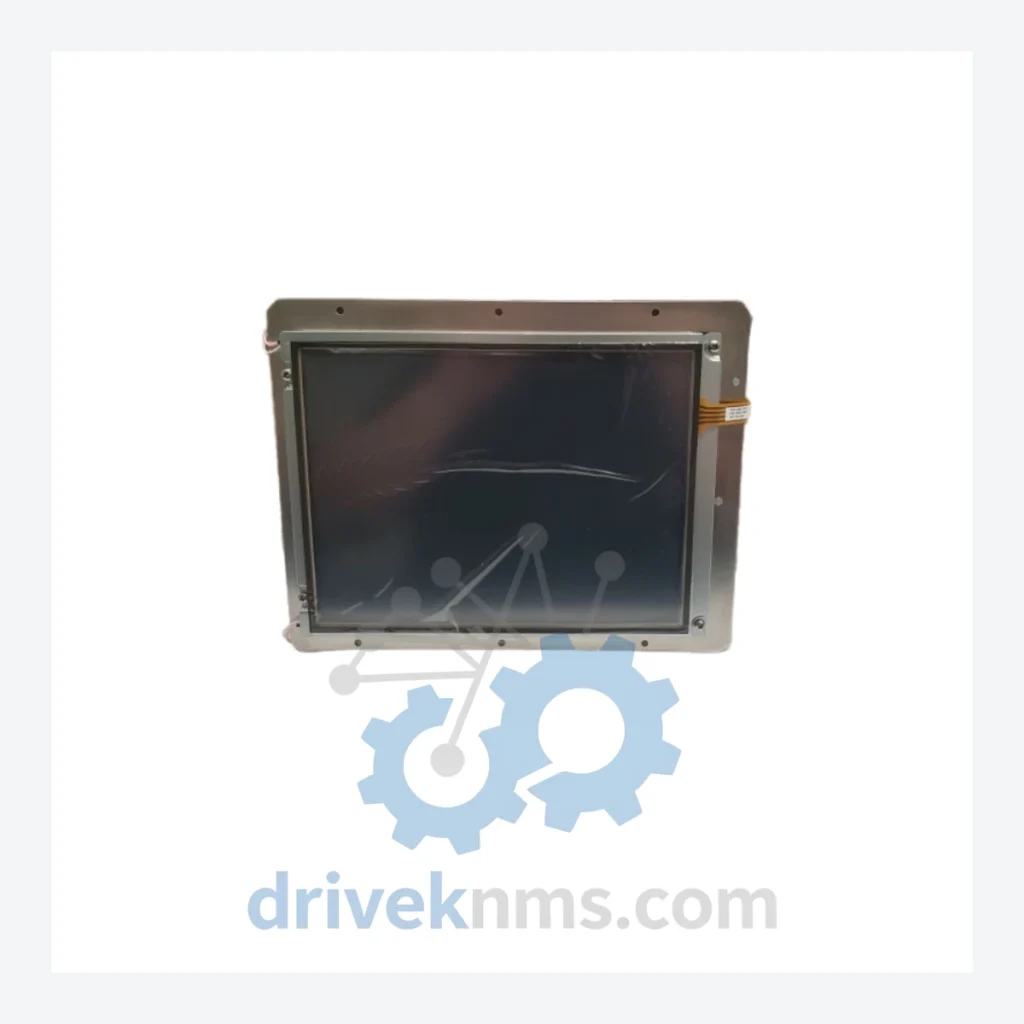

Foxjet Holland 2465-159/D Touch Screen Display

Technical Dossier

Product Details And Specifications

Foxjet Holland 2465 Series: Comprehensive Module Range and Technical Overview

The Foxjet Holland 2465 series touch screen display platform has established a significant installed base across global heavy industry sectors, including petrochemical plants, offshore refineries, nuclear auxiliary systems, and continuous-process manufacturing facilities. The 2465-159/D operator interface unit represents the mid-generation display controller within this family, designed for panel-mount integration into DCS and PLC control cabinets where operator visibility and input reliability are critical. Its resistive touch technology, industrial-grade backlight, and serial/parallel communication interfaces made it a standard specification in European and Asian process automation projects throughout the 1990s and 2000s. Many of these installations remain operational today, creating sustained demand for exact-match replacement units and tested refurbished stock.

The Evolution of 2465 Architecture

The Foxjet Holland 2465 display architecture evolved through several hardware revisions, each addressing field-reported limitations in backlight longevity, touch controller firmware stability, and communication protocol compatibility. Early suffix variants (e.g., /A, /B) used CCFL backlighting with analog resistive overlays and RS-232 host interfaces. Mid-generation revisions (/C, /D) introduced improved EL or LED backlight drivers, revised touch controller ASICs with improved noise immunity, and expanded support for RS-485 multi-drop configurations. Later variants incorporated updated firmware ROMs to address Y2K-era timing register issues and extended the operating temperature range for outdoor cabinet applications. The 2465-159/D sits within the mature /D revision tier, offering stable firmware and a well-documented communication protocol, but it is no longer manufactured. Replacement procurement now relies entirely on refurbished, tested, or new-old-stock (NOS) channels. Facilities still operating /A or /B suffix units should note that direct cross-compatibility with /D firmware is not guaranteed without hardware-level verification.

2465 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Foxjet Holland 2465 display and operator interface series. Each unit is categorized by primary function:

Touch Screen Display Units

2465-159/A: Early-revision 5.7″ resistive touch display, RS-232, CCFL backlight.
2465-159/B: Revised touch controller firmware, improved RS-232 noise filtering.
2465-159/C: LED backlight upgrade, extended temperature range, RS-485 support added.
2465-159/D: Current refurbished-market standard; stable /D firmware, dual serial interface.
2465-160/D: 7.4″ variant of the 159 platform, same /D firmware base, wider viewing angle.
2465-161/D: High-brightness version for high-ambient-light cabinet environments.
2465-162/C: Compact 4.7″ panel-mount display, RS-232 only, single-touch resistive.

Operator Interface Controllers

2465-200/B: Standalone OI controller module, interfaces with 2465-159 display heads.
2465-201/B: Dual-port OI controller, supports two display heads on independent serial channels.
2465-202/C: Enhanced OI controller with onboard EEPROM for parameter storage.
2465-210/A: Rack-mount OI controller, 19″ format, for centralized display management.

Communication & Interface Adapters

2465-300/A: RS-232 to RS-485 protocol converter for 2465 series network expansion.
2465-301/B: Profibus DP adapter module for 2465 display integration into Siemens DCS environments.
2465-302/A: DeviceNet gateway adapter, enables 2465 OI integration with Allen-Bradley PLC networks.

Power Supply Modules

2465-400/A: 24 VDC panel power supply, 5A rated, designed for 2465 display cabinet assemblies.
2465-401/B: Redundant power supply module, hot-swap capable, for critical-process 2465 installations.

Sourcing Hard-to-Find & Obsolete 2465 Series Parts

The Foxjet Holland 2465 series has been discontinued by the original manufacturer. No new production units are available through standard distribution channels. DriveKNMS maintains a dedicated inventory program for end-of-life industrial display and OI modules, with a focus on exact-match replacements for installed base continuity. For the 2465-159/D and related SKUs, DriveKNMS sources units through verified industrial surplus channels, decommissioned plant asset recovery, and authorized refurbishment partners. All units are inspected for physical integrity, backlight function, touch overlay calibration, and communication interface continuity before being listed as available stock. For facilities operating under long-term maintenance contracts or asset integrity programs, DriveKNMS can provide consignment stock agreements and priority allocation for critical-path spares. Customers requiring documentation packages (test reports, photos, revision labels) for regulatory or insurance purposes can request these at the time of inquiry.

Quality Control for the 2465 Series Range

The 2465 series presents specific quality verification challenges due to its multi-layer construction: the display panel, touch overlay, backlight driver board, and main controller PCB are discrete assemblies that must each be independently verified. DriveKNMS applies the following test protocol to all 2465 series units prior to dispatch:

1. Visual inspection: Bezel integrity, connector pin condition, label legibility, revision suffix confirmation.
2. Backlight function test: Full-brightness and dimming-range verification under 24 VDC supply.
3. Touch overlay calibration: 9-point calibration grid test using the unit's native firmware calibration routine.
4. Serial communication test: RS-232 and RS-485 loopback test at 9600, 19200, and 38400 baud.
5. Display pixel integrity: Full-white, full-black, and RGB pattern screens to identify dead pixels or column/row failures.
6. Burn-in soak: 48-hour powered operation at ambient temperature prior to final packaging.

Units that do not pass all six stages are either returned for component-level repair or classified as parts-only stock and sold accordingly with full disclosure.
