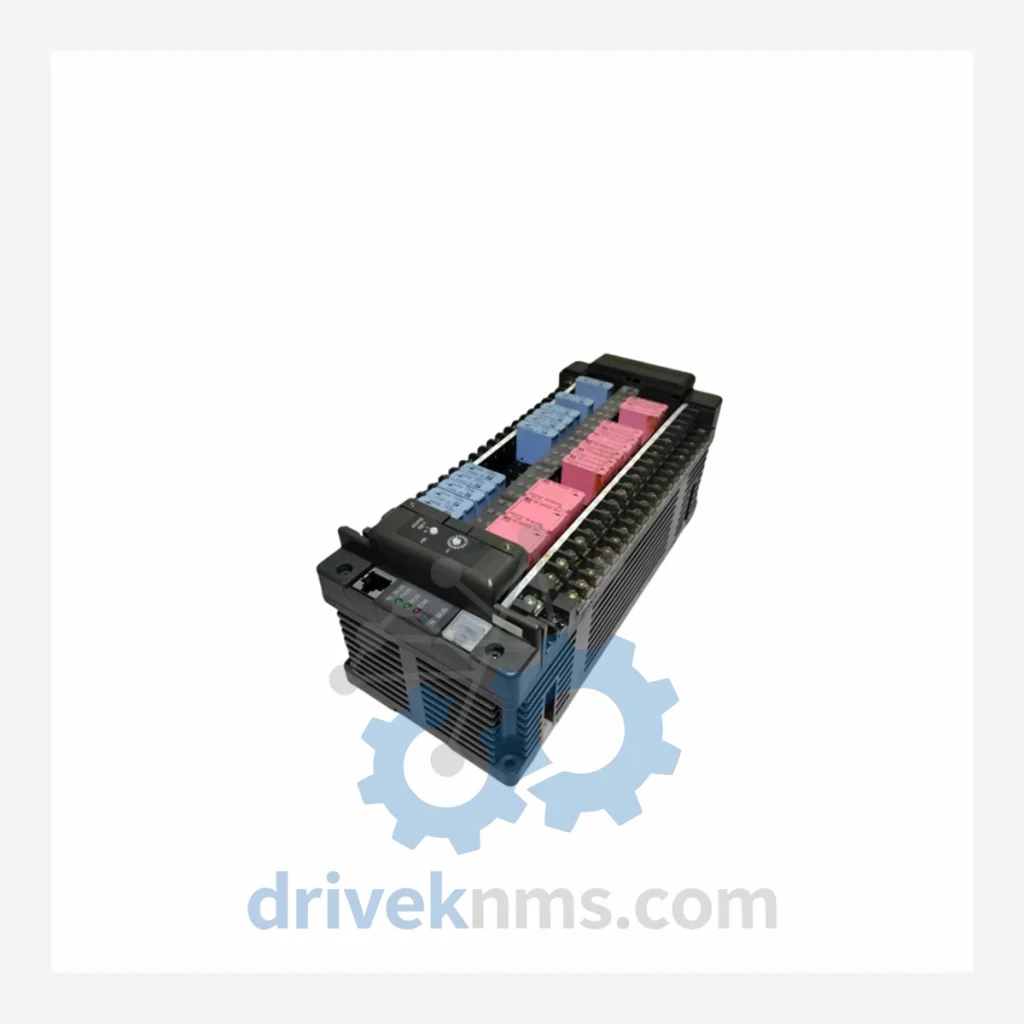

Fuji NB1-P40X-AC Programmable Controller – Obsolete NB Series Spare Part

Technical Dossier

Product Details And Specifications

Fuji NB1-P40X-AC Programmable Controller – Obsolete NB Series Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters beyond those listed above are not published here to avoid inaccuracy. Please share your system documentation with our team for a verified compatibility check before purchase.

Solving the Discontinued Hardware Crisis

The Fuji NB Series was deployed extensively in manufacturing, material handling, and process control applications through the 1990s and into the 2000s. Many of these installations remain operational today — not because the hardware is fragile, but because the control logic embedded in them represents years of process tuning that cannot be trivially migrated to a modern platform.

The NB1-P40X-AC sits at the core of many NB Series configurations. Its unavailability on the open market is not a temporary supply chain disruption — it is a permanent condition. Facilities that have extended the life of comparable legacy Fuji systems by 5 to 10 years have done so through a combination of three practices: maintaining a minimum two-unit spare inventory for critical CPU and power modules, scheduling annual preventive inspections focused on capacitor condition and connector integrity, and documenting all firmware versions and program backups in an offline archive. None of these measures require capital expenditure at the scale of a platform migration. All of them require deliberate planning before the next failure event, not after.

Condition & Reliability Assurance

Every NB1-P40X-AC unit that leaves our facility has passed a structured 5-step inspection protocol developed specifically for obsolete industrial control hardware:

• Step 1 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in PLC hardware of this era. Each unit is inspected for bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned or rejected.
• Step 2 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known stable releases. Customers are informed of the version prior to shipment so compatibility with existing program files can be confirmed.
• Step 3 – Connector and Pin Integrity Check: All I/O connectors, backplane connectors, and terminal blocks are inspected under magnification for corrosion, pin deformation, and contact oxidation. Affected contacts are cleaned or the unit is rejected.
• Step 4 – Power-On Functional Test: Units are powered and tested for basic operational response where test infrastructure permits. Results are logged.
• Step 5 – Packaging for Long-Term Storage: Units are packaged in anti-static materials with desiccant. Units intended for spare inventory rather than immediate installation are sealed for extended shelf life.

Key Features for System Maintenance

• Drop-in replacement: The NB1-P40X-AC is a direct hardware replacement within compatible NB Series rack configurations. No rewiring of the control cabinet is required.
• No reprogramming required: Existing PLC programs stored on the original unit or in a backup file load directly onto the replacement module. There is no need to engage a controls engineer for software re-commissioning.
• Avoids engineering reconstruction costs: Replacing a failed NB1-P40X-AC with a verified spare eliminates the need for panel redesign, new PLC platform procurement, I/O remapping, and the associated validation and testing cycles that a platform migration demands.
• Extends asset service life: A single verified spare can extend the operational life of an NB Series installation by years, protecting the process knowledge and tuning embedded in the existing control program.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through documented industrial channels. Physical markings, board revision codes, and component layouts are verified against known-good reference units. We do not source from unverified secondary markets.

Can you verify compatibility with my specific system configuration before I order?
Yes. Send your system documentation, rack configuration, and firmware version details to our technical team. We will confirm compatibility before the order is placed.
