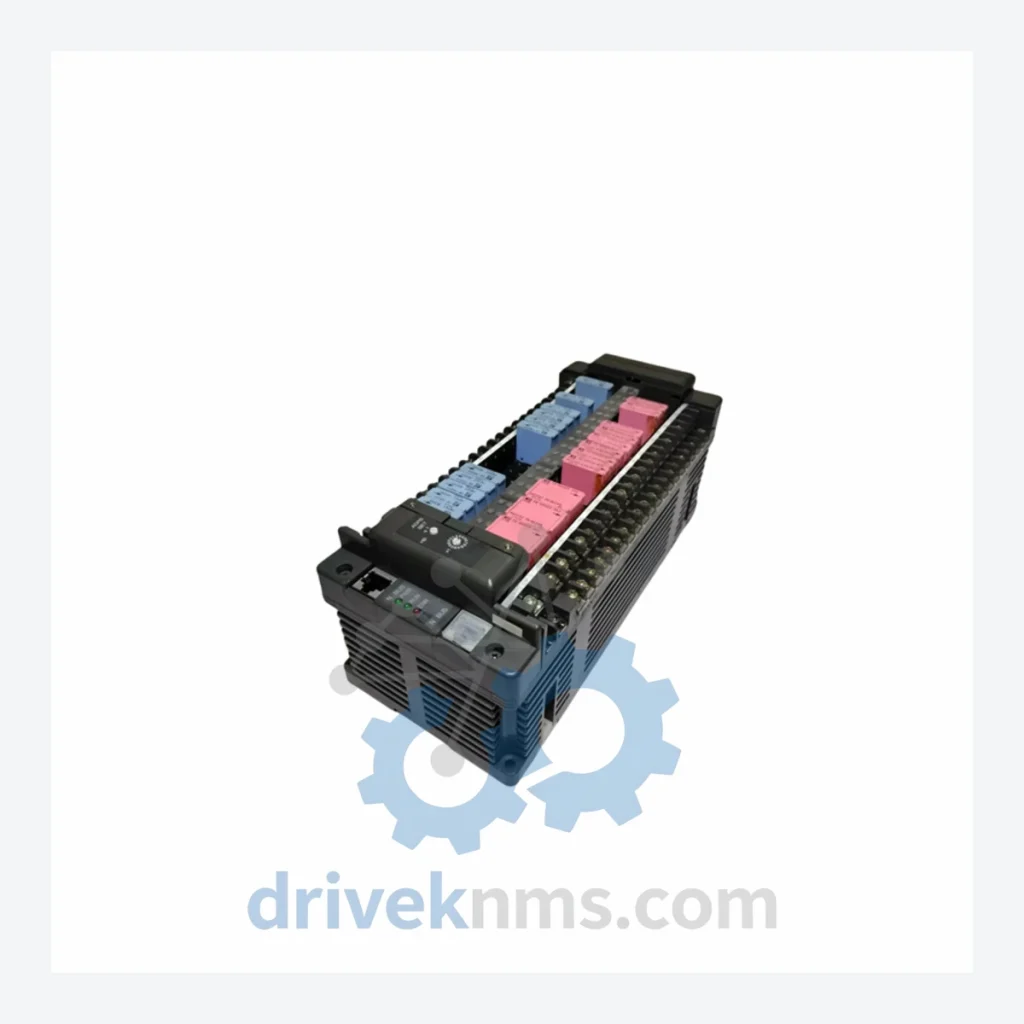

Fuji NB1W40X-01 Expansion Unit – Obsolete MICREX-F Series Spare Part

Technical Dossier

Product Details And Specifications

Fuji NB1W40X-01 Expansion Unit – Obsolete MICREX-F Series Spare Part

When a single expansion unit fails in a legacy Fuji MICREX-F control system, the consequences extend far beyond the cost of the part itself. A full production line shutdown pending system migration can expose manufacturers to engineering redesign fees, new PLC hardware procurement, software re-commissioning, and operator retraining — costs that routinely exceed hundreds of thousands of dollars, and in continuous-process industries, can reach into the millions. The NB1W40X-01 is a discontinued I/O expansion unit that remains the structural backbone of many MICREX-F installations still in active service. DriveKNMS maintains limited verified stock of this unit specifically to serve facilities that cannot afford the disruption of a forced upgrade.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, I/O channel counts, bus specifications) are confirmed upon inquiry to ensure accuracy. No parameters are published without verified documentation.

Solving the Discontinued Hardware Crisis

The Fuji MICREX-F platform was widely deployed across manufacturing, utilities, and process control facilities throughout the 1990s and 2000s. Its reliability earned it long service lives — which is precisely why so many installations remain operational today, years after Fuji Electric ceased production of supporting hardware.

The NB1W40X-01 expansion unit occupies a non-negotiable role in these architectures. It extends the I/O capacity of the base CPU rack, and in most MICREX-F configurations, the system cannot operate at designed capacity without it. There is no native drop-in replacement from the current Fuji Electric product line. Sourcing this unit from the secondary market is not a workaround — it is the only viable path to maintaining system integrity without a full control system overhaul.

Facilities that have attempted to migrate away from MICREX-F prematurely have encountered multi-month project timelines, significant capital expenditure, and in some cases, production quality deviations during the transition period. For plant managers operating under tight capital budgets, maintaining the existing system with verified spare parts is a defensible, low-risk strategy that preserves asset value and defers major expenditure to a planned cycle.

Extending the operational life of a MICREX-F installation by 5 to 10 years through strategic spare parts procurement is achievable. The approach requires three disciplines: first, identifying all single-point-of-failure modules within the existing rack configuration and securing at least one verified spare for each; second, establishing a relationship with a specialist supplier — such as DriveKNMS — who maintains traceable stock and can respond within days rather than weeks; third, scheduling periodic functional testing of stored spares to confirm readiness before they are needed under emergency conditions. This is not reactive maintenance. It is asset protection with a measurable return on investment.

Condition & Reliability Assurance

Discontinued hardware sourced from the secondary market carries inherent risk if not properly evaluated. DriveKNMS applies a structured 5-step qualification process to every NB1W40X-01 unit before it is offered for sale:

Step 1 – Visual and Mechanical Inspection: All boards and connectors are examined under magnification for physical damage, corrosion, and pin deformation. Units with compromised housings or connector damage are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are a primary failure mode in hardware of this era. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Where degradation is confirmed, capacitors are replaced with specification-matched components before the unit proceeds.

Step 3 – Firmware Version Verification: Where applicable, firmware or EPROM versions are documented and cross-referenced against known MICREX-F compatibility matrices to confirm the unit will integrate correctly with the target system revision.

Step 4 – Pin and Contact Integrity Check: Backplane connector pins are inspected and cleaned. Oxidation on contact surfaces is treated to restore reliable electrical connection.

Step 5 – Functional Power-On Test: Units are powered and tested under controlled conditions. Only units that pass all five stages are released for sale.

Key Features for System Maintenance

The NB1W40X-01 is a direct hardware replacement for the original unit. Installation does not require PLC program modification, re-engineering of the rack configuration, or recalibration of connected field devices. The unit slots into the existing backplane and resumes operation under the existing application logic — a true drop-in replacement in the context of MICREX-F architecture.

This characteristic is critical for facilities where the original system integrator is no longer available, where source code documentation is incomplete, or where any modification to the control program would trigger a costly revalidation process. Avoiding engineering intervention is not merely a convenience — in regulated industries such as pharmaceuticals, food processing, and utilities, it is a compliance requirement. The NB1W40X-01 allows maintenance teams to restore system function without opening the software layer.

FAQ

What warranty applies to a discontinued unit like the NB1W40X-01?
DriveKNMS provides a 90-day functional warranty on all tested refurbished units. New sealed units are offered with a 180-day warranty. Warranty covers failure under normal operating conditions and excludes damage resulting from incorrect installation or electrical overstress.

How do I know the unit is genuine and not a counterfeit?
All units sourced by DriveKNMS are traceable to documented supply chain origins. We do not purchase from unverified brokers. Each unit carries its original Fuji Electric markings, and our QA process includes cross-referencing part markings against known authentic references. Documentation is available upon request.

Should I purchase more than one unit as a long-term reserve?
For any MICREX-F installation that is expected to remain in service for more than two years, holding a minimum of one additional NB1W40X-01 as a cold spare is a sound risk management decision. Secondary market availability of discontinued Fuji hardware is finite and decreasing. Units available today may not be available in 18 months. The cost of a spare unit is a fraction of the cost of an unplanned production stoppage.

Can DriveKNMS source other MICREX-F components?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple platforms. If you require additional MICREX-F modules, CPU units, power supplies, or communication cards, contact us with your part numbers for availability and lead time.
