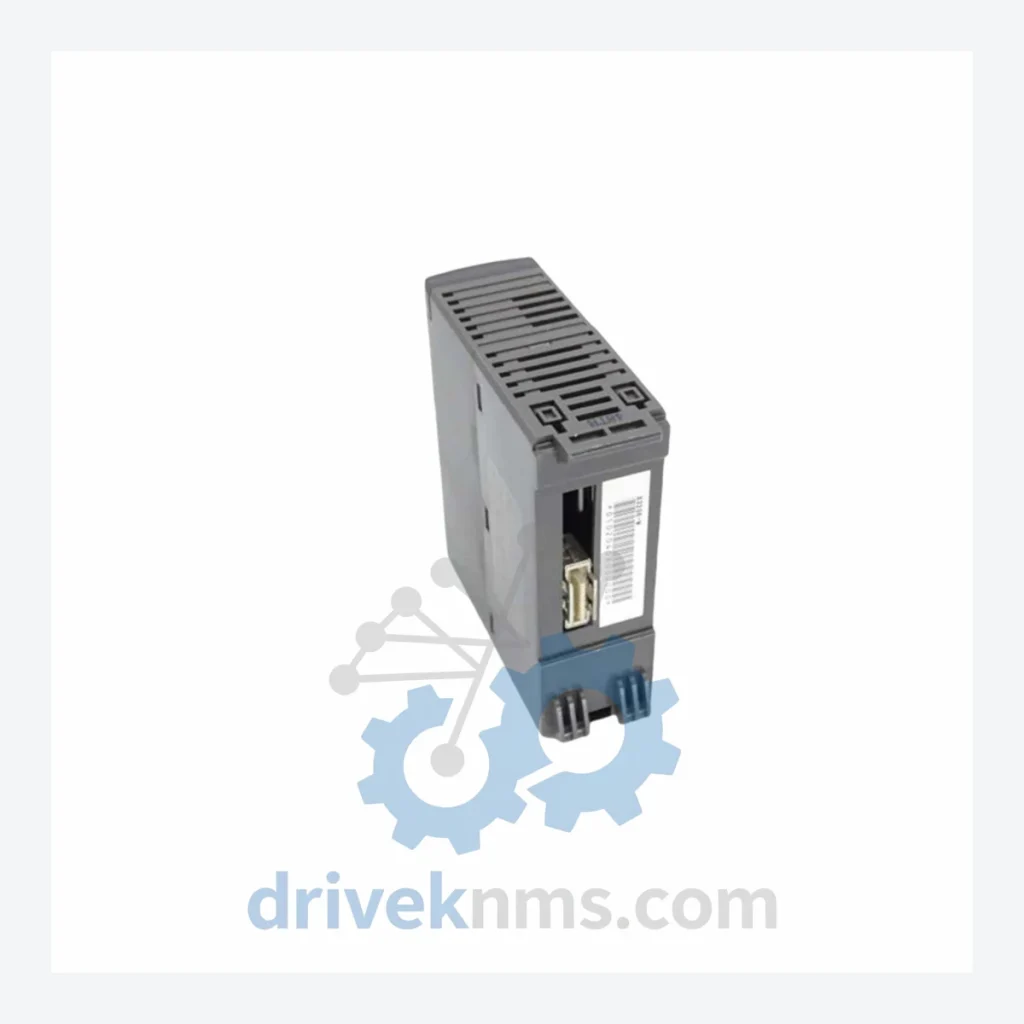

Fuji NP1X3206-W Power Supply Module – Obsolete MICREX-F Series Spare Part

Technical Dossier

Product Details And Specifications

Fuji NP1X3206-W Power Supply Module – Obsolete MICREX-F Series Spare Part

When a power supply module fails inside a Fuji MICREX-F programmable controller system, the consequences extend far beyond a single component. The MICREX-F series has been discontinued, and sourcing a direct replacement on the open market is no longer straightforward. A single unplanned line stoppage caused by this failure can cost a manufacturing facility tens of thousands of dollars per hour. A forced system-wide migration to a modern PLC platform — including engineering redesign, I/O rewiring, software reprogramming, operator retraining, and production validation — routinely runs into the hundreds of thousands, sometimes millions, of dollars. The NP1X3206-W is not a commodity item. It is a load-bearing component of an aging but still-productive automation asset, and its availability directly determines whether that asset continues to generate revenue or becomes a liability.

DriveKNMS maintains verified physical stock of the NP1X3206-W. This is not a brokered listing. Inventory is inspected, tested, and held in controlled storage conditions. If your facility is running MICREX-F hardware, securing a spare now is a straightforward decision with a measurable return.

Technical Specifications

Note: Electrical parameters (input voltage range, output ratings, power capacity) are confirmed only against verified datasheets. No parameters are published here without physical documentation. Contact us for the full technical datasheet.

Solving the Discontinued Hardware Crisis

The Fuji MICREX-F platform was widely deployed across process manufacturing, packaging lines, and discrete assembly operations throughout the 1990s and early 2000s. Many of these installations remain in active production today — not because the hardware is new, but because the cost and disruption of replacement have never been justified against the output these systems continue to deliver.

The power supply module is the most operationally critical component in any rack-based PLC system. It is the single point of failure that, if it fails without a spare on hand, takes the entire controller offline. Unlike CPU or I/O modules, a failed power supply cannot be worked around or bypassed. The line stops.

For facilities running MICREX-F hardware, the NP1X3206-W represents a direct, validated replacement path that requires no engineering intervention. Procurement of one or two spare units is the lowest-cost insurance policy available against an unplanned outage. The alternative — emergency sourcing from secondary markets at premium prices during a live production stoppage, or initiating a full system migration under time pressure — is a scenario that plant managers and maintenance engineers consistently identify as among the most disruptive and expensive events in an asset's lifecycle.

Extending the operational life of a MICREX-F installation by five to ten years through proactive spare parts management is not a compromise. It is a deliberate capital allocation decision. The total cost of maintaining a functioning legacy system with verified spare parts is, in most cases, a fraction of the cost of a forced migration. The NP1X3206-W is one of the components that makes that strategy viable.

Condition & Reliability Assurance

Every NP1X3206-W unit processed by DriveKNMS passes a structured five-stage inspection protocol before it is offered for sale. This protocol is designed specifically for discontinued industrial components, where age-related degradation — not physical damage — is the primary failure risk.

Stage 1 – Visual and Mechanical Inspection: Full external examination for case damage, connector deformation, PCB contamination, and label integrity. Units with evidence of prior field failure are quarantined.

Stage 2 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point in power supply modules. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation. Units showing capacitor degradation are either recapped with equivalent-specification components or rejected.

Stage 3 – Firmware and Configuration Verification: Where applicable, firmware version is confirmed against known-good reference data for the NP1X3206-W. No unauthorized modifications are accepted.

Stage 4 – Pin and Connector Integrity Check: All backplane connector pins are inspected under magnification for oxidation, corrosion, and mechanical deformation. Affected pins are cleaned and treated or the unit is rejected.

Stage 5 – Functional Power-On Test: Units are powered and output stability is verified under load conditions consistent with MICREX-F rack requirements before final packaging.

Key Features for System Maintenance

The NP1X3206-W is a direct drop-in replacement for the original module position in the MICREX-F rack. Installation requires no software changes, no PLC reprogramming, and no modification to existing I/O configurations. Maintenance personnel familiar with the MICREX-F platform can complete a module swap during a scheduled maintenance window without engineering support.

This matters because the alternative — sourcing a non-original replacement or initiating a platform migration — introduces engineering hours, validation time, and production risk that a direct spare part replacement eliminates entirely. There are no hidden integration costs. The module seats, powers up, and the system resumes operation.

For facilities with multiple MICREX-F installations, holding a small buffer stock of NP1X3206-W units across sites is a standard asset protection practice. The cost of holding two spare units is negligible relative to the cost of a single unplanned outage. DriveKNMS can support multi-unit procurement inquiries for facilities building a structured spare parts inventory.

FAQ

What warranty applies to a discontinued module like the NP1X3206-W?
DriveKNMS provides a 90-day functional warranty on all refurbished units and a 180-day warranty on verified New Old Stock units. Warranty covers functional failure under normal operating conditions and excludes physical damage caused after delivery.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through documented industrial channels — decommissioned plant inventories, authorized distributor closeouts, and verified surplus lots. Each unit carries original Fuji Electric labeling. We do not source from unverified secondary markets. Physical inspection records are available on request.

Should I buy more than one unit?
For any facility where the MICREX-F system is critical to production, holding at least one spare NP1X3206-W is the minimum prudent position. For multi-line or multi-site operations, we recommend a structured spare parts review. Contact us to discuss volume pricing and long-term reservation options.

Can you source other MICREX-F components?
Yes. DriveKNMS specializes in the full MICREX-F component range. If you have a broader spare parts requirement for your MICREX-F installation, contact us with your full BOM and we will advise on availability.
