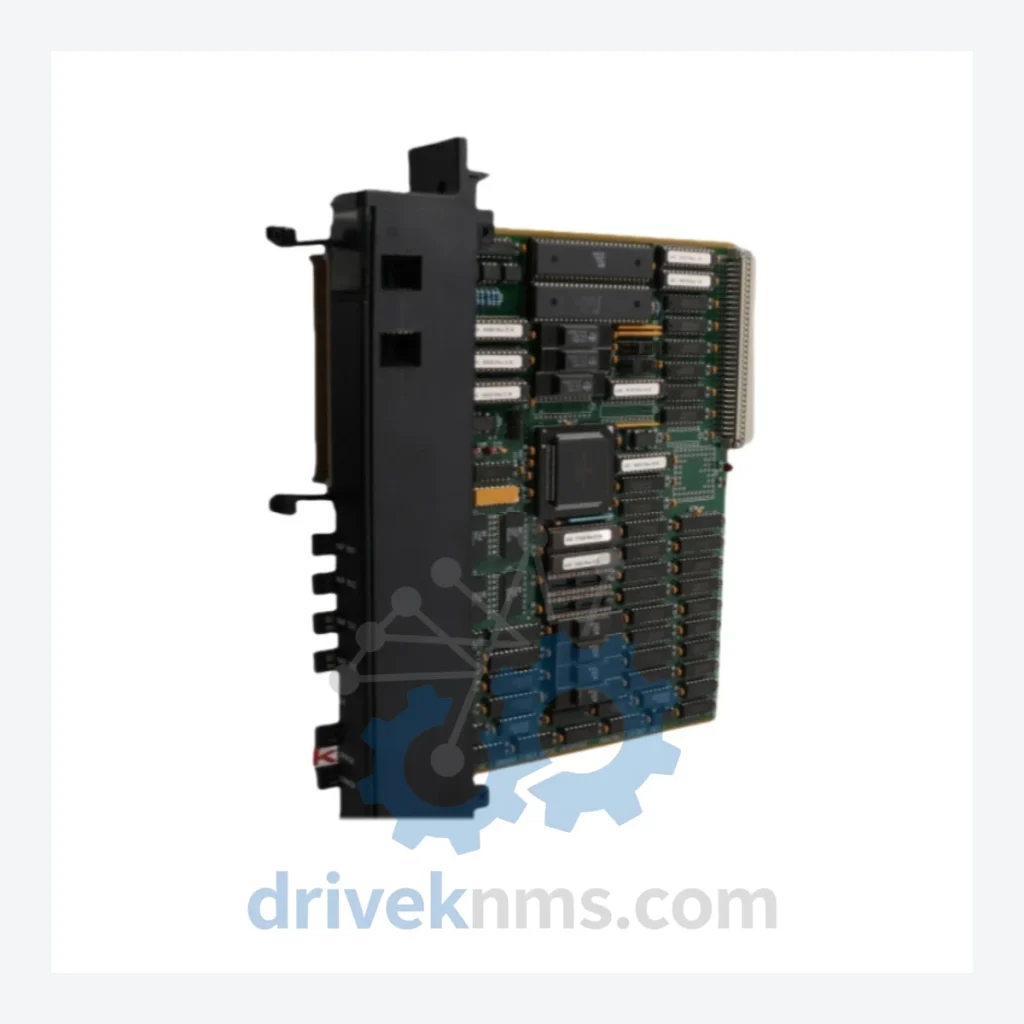

GE 151X1225 Power Converter Modules

Model: 151X1225DF01PC03RA

Brand General Electric

Series 151X1225 Power Converter

Model 151X1225DF01PC03RA

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

GE 151X1225 Series: Comprehensive Module Range and Technical Overview

The GE 151X1225 series designates a family of power converter and conditioning modules deployed within GE's turbine control infrastructure, including Mark IV, Mark V, and associated LM-series gas turbine control panels. These modules are installed across heavy industrial sectors — petrochemical refineries, combined-cycle power plants, offshore platforms, and nuclear auxiliary systems — where DC bus regulation and signal-level power conversion are critical to continuous operation. The 151X1225 series occupies the power supply and conversion tier of the GE control architecture, interfacing directly with the turbine control panel backplane and providing regulated outputs to downstream I/O and processor cards. Field installations of this series span multiple decades, with units still in active service in plants commissioned in the 1980s and 1990s.

The Evolution of 151X1225 Architecture

The 151X1225 part number family was introduced as part of GE's standardized turbine control module ecosystem during the Mark IV and early Mark V control system era (approximately 1983–1995). Early revisions (suffix codes AA, AB) provided basic DC-to-DC conversion with analog feedback loops. Subsequent revisions (PC01, PC02, PC03) introduced improved thermal management, tighter output voltage regulation tolerances (±1%), and enhanced EMI filtering to comply with evolving IEC 61000 standards. The RA suffix on the 151X1225DF01PC03RA denotes a factory-refurbished or revision-A production run, a common GE designation for modules re-released after design corrections.

Compatibility across revisions is not guaranteed without engineering review. PC01 and PC02 variants share the same backplane connector pinout but differ in firmware-controlled calibration registers. PC03 introduced a revised gate driver circuit incompatible with certain early Mark IV backplane revisions. Plants operating mixed-revision panels must verify compatibility before substitution. GE ceased active production of the 151X1225 family as the Mark VI and Mark VIe platforms (introduced 1995–2005) replaced the Mark V architecture. The 151X1225 series is now classified as a mature/end-of-life product line with no OEM new-production availability.

151X1225 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the GE 151X1225 power converter and associated module family. Each entry reflects a distinct hardware revision or functional variant.

151X1225DF01PC01AA: DC power converter, revision PC01, initial production run, Mark IV compatible.
151X1225DF01PC01RA: DC power converter, PC01 revision, factory-refurbished release variant.
151X1225DF01PC02AA: DC power converter, PC02 revision, improved thermal regulation, Mark V compatible.
151X1225DF01PC02RA: DC power converter, PC02 revision, refurbished/re-released production variant.
151X1225DF01PC03AA: DC power converter, PC03 revision, revised gate driver circuit, enhanced EMI filtering.
151X1225DF01PC03RA: DC power converter, PC03 revision, refurbished variant — primary stocked SKU.
151X1225DF02PC01AA: Dual-output power converter, PC01 revision, dual-rail DC bus output.
151X1225DF02PC02AA: Dual-output power converter, PC02 revision, improved load regulation.
151X1225DF02PC03AA: Dual-output power converter, PC03 revision, enhanced ripple suppression.
151X1225DF02PC03RA: Dual-output power converter, PC03 refurbished, common replacement unit.
151X1225EF01PC02AA: Extended-range power converter, PC02 revision, wider input voltage tolerance.
151X1225EF01PC03AA: Extended-range power converter, PC03 revision, full IEC 61000-4 compliance.
151X1225EF01PC03RA: Extended-range converter, PC03 refurbished, suitable for high-vibration environments.
151X1225GF01PC02AA: High-current output variant, PC02 revision, for high-load I/O panel configurations.
151X1225GF01PC03AA: High-current output variant, PC03 revision, upgraded current limiting circuit.
151X1225GF01PC03RA: High-current output, PC03 refurbished, stocked for emergency replacement programs.
151X1225HF01PC03AA: Isolated output power converter, PC03 revision, galvanic isolation for sensitive signal circuits.
151X1225HF01PC03RA: Isolated output converter, PC03 refurbished, long-term maintenance stock variant.

Sourcing Hard-to-Find & Obsolete 151X1225 Parts

The 151X1225 series has been out of OEM production for over two decades. GE (now GE Vernova) does not supply new-manufacture units and has formally discontinued spare parts support for Mark IV and Mark V control systems. This creates a critical sourcing gap for plants operating legacy turbine control panels with remaining service lives of 5–15 years.

DriveKNMS maintains a dedicated inventory program for the 151X1225 family, sourcing units through controlled decommissioning projects, OEM surplus channels, and certified third-party refurbishment pipelines. All units are catalogued by full part number including suffix codes (DF01, DF02, EF01, PC01–PC03, AA/RA) to ensure exact-match fulfillment. For plants requiring long-term maintenance agreements or multi-unit blanket orders, DriveKNMS offers reserved stock allocation with documented chain-of-custody records. Emergency same-day quotation is available for critical plant shutdowns.

Quality Control for the 151X1225 Range

Power converter modules in the 151X1225 family present specific test challenges due to their mixed analog/digital architecture and backplane-dependent calibration requirements. DriveKNMS applies the following test protocol to all 151X1225 units prior to shipment:

Input voltage sweep test: Units are subjected to full input voltage range (per nameplate specification) to verify regulation stability across the operating envelope. Output ripple measurement: DC output ripple is measured at rated load using a calibrated oscilloscope; units exceeding OEM ripple specifications are rejected. Thermal cycling: Each unit undergoes a minimum 4-hour thermal cycle (0°C to 55°C) to identify latent component failures. Backplane interface verification: Connector pin continuity and insulation resistance are verified against GE Mark V backplane wiring diagrams. Gate driver functional test: PC03-revision units receive additional gate driver circuit verification using a dedicated load bank. Documentation: Each unit ships with a test report, revision identification label, and ESD-compliant packaging.
