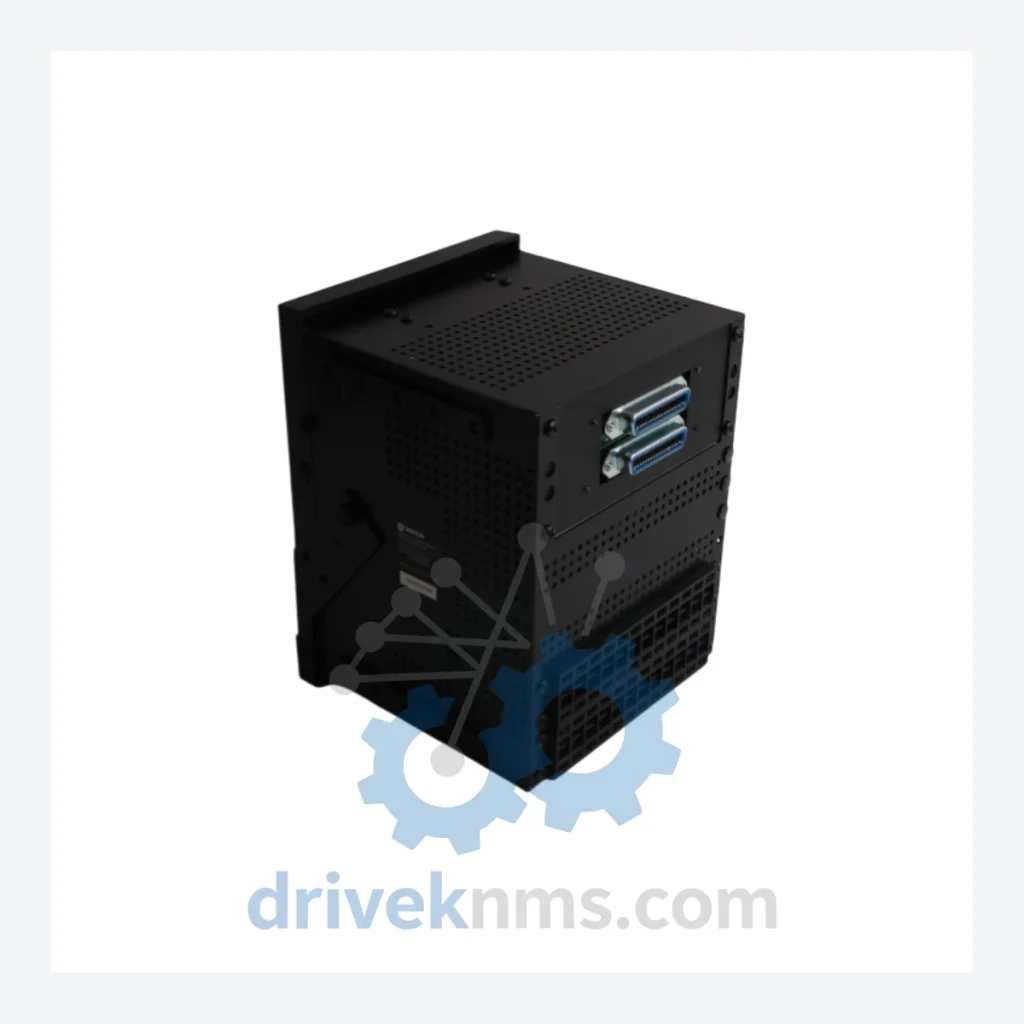

GE Multilin 469-P5-HI-A1 Motor Management Relay – Obsolete 469 Series Spare Part

Technical Dossier

Product Details And Specifications

GE Multilin 469-P5-HI-A1 Motor Management Relay – Obsolete 469 Series Spare Part

When a GE Multilin 469 Motor Management Relay fails in a running plant, the consequences extend far beyond the cost of the component itself. The 469 series is deeply embedded in legacy motor control architectures across oil & gas, mining, pulp & paper, and heavy manufacturing facilities worldwide. A single unplanned failure of this relay — without a replacement unit on hand — can force plant managers into an impossible choice: halt production indefinitely, or commit to a full motor protection system upgrade that carries six- to seven-figure engineering, procurement, and commissioning costs. DriveKNMS maintains verified stock of the 469-P5-HI-A1 specifically to eliminate that forced decision. This is not a commodity item. It is a production continuity asset.

Technical Specifications

Solving the Discontinued Hardware Crisis

The GE Multilin 469 series was the industry standard for medium-voltage motor protection for over two decades. It is still actively deployed in thousands of facilities that were built or last upgraded between the 1990s and early 2010s. The relay handles thermal overload protection, differential protection, ground fault detection, and motor starting supervision — functions that are tightly integrated into the plant's existing wiring, PLC logic, and SCADA communication architecture.

The core problem facing plant engineering teams today is not whether the 469 is obsolete — it is. The problem is the cost and risk of the alternative. Migrating from a 469-based motor protection scheme to a modern 869 or equivalent platform requires new CT wiring, updated relay settings, revised PLC I/O mapping, SCADA tag reconfiguration, and a full protection coordination study. In a mid-sized facility with 20–50 protected motors, this migration can realistically cost USD $500,000 to $2,000,000 in engineering labor, downtime, and commissioning — before accounting for production losses during the transition window.

Maintaining a strategic inventory of 469-P5-HI-A1 units extends the operational life of the existing system by 5 to 10 years at a fraction of that cost. Each unit held in reserve is, in practical terms, a deferred capital expenditure of tens of thousands of dollars per protected motor circuit. For plant managers operating under capital budget constraints, this is not a maintenance decision — it is an asset protection strategy.

The 469-P5-HI-A1 variant specifically supports RS-485 Modbus RTU communication (P5) with a high-range voltage input configuration (HI), making it the correct unit for facilities where the communication backbone and voltage sensing infrastructure are already in place and cannot be changed without broader system impact.

Condition & Reliability Assurance

Sourcing obsolete industrial relays from the open market carries real risk. DriveKNMS applies a structured 5-step quality assurance process to every 469-P5-HI-A1 unit before it leaves our facility:

• Step 1 – Visual & Mechanical Inspection: Full external inspection for physical damage, connector integrity, and panel mounting hardware condition. Units with cracked housings, bent pins, or corroded terminals are rejected at intake.
• Step 2 – Electrolytic Capacitor Assessment: Internal inspection targets electrolytic capacitors, which are the primary failure point in aged relay hardware. Units showing capacitor bulging, leakage, or ESR deviation are flagged for component-level refurbishment or rejected.
• Step 3 – Firmware Version Verification: The installed firmware version is documented and cross-referenced against known stable releases. Units carrying firmware versions with documented field issues are identified and disclosed to the buyer prior to shipment.
• Step 4 – Pin & Connector Corrosion Check: All I/O terminal blocks, communication ports, and power input connectors are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned to IPC-610 standards or the unit is rejected.
• Step 5 – Functional Power-On Test: Where test infrastructure permits, units are powered and basic self-diagnostic routines are verified. Test results are documented and available upon request.

Units are classified and sold as: New Surplus (factory-sealed, never installed), Refurbished (tested and reconditioned to above criteria), or Used – Tested (pulled from service, functionally verified). Condition is stated explicitly on every quotation.

Key Features for System Maintenance

• Drop-in Replacement: The 469-P5-HI-A1 installs directly into existing 469-series panel cutouts and wiring harnesses. No mechanical modifications required.
• No Reprogramming Required: Settings files created in GE Multilin's EnerVista 469 Setup software are portable. Existing configuration files can be uploaded directly to the replacement unit, eliminating the need for a protection engineer to re-enter relay settings on-site.
• Modbus Continuity: The P5 RS-485 Modbus RTU interface maintains full compatibility with existing SCADA and DCS communication configurations. No changes to PLC Modbus maps or SCADA driver configurations are required.
• Avoids Engineering Reconstruction Costs: Replacing a like-for-like 469-P5-HI-A1 unit avoids the protection coordination study, wiring redesign, and commissioning costs associated with migrating to a non-compatible successor platform.
• Long-Term Spare Strategy: Facilities with multiple 469-protected motors should consider holding 1–2 units in bonded spare inventory. The cost of a spare unit is recoverable in avoided downtime within the first hour of a production-critical motor trip event.

FAQ

Q: What warranty applies to an obsolete part like the 469-P5-HI-A1?
A: DriveKNMS provides a 12-month warranty on New Surplus units and a 6-month warranty on Refurbished units against defects in materials and workmanship under normal operating conditions. Warranty terms for Used – Tested units are stated per quotation. All warranty claims are handled directly by DriveKNMS.

Q: How do I confirm the unit is genuine GE Multilin and not a counterfeit?
A: Every unit is inspected for GE Multilin manufacturer markings, date codes, and internal construction consistency. We provide full traceability documentation — including photos of the unit's nameplate and serial number — prior to shipment upon request. We do not source from unverified brokers.

Q: Should we hold multiple units in long-term spare inventory?
A: For facilities with three or more 469-protected motor circuits, holding a minimum of two spare units is a defensible maintenance strategy. The 469 series is no longer manufactured, and open-market availability will continue to decline. Procurement cost today is substantially lower than emergency sourcing cost during an unplanned outage. We can discuss volume pricing for multi-unit spare packages.

Q: Can you source specific firmware versions?
A: We document firmware versions on all units in stock. If your facility requires a specific firmware revision for compatibility with existing EnerVista configuration files, contact us before ordering and we will confirm availability.
