GE 531X Series Modules – 531X301DCCAGG2DC

Technical Dossier

Product Details And Specifications

GE 531X Series Technical Notes

The GE 531X Series represents a core family of control boards deployed within GE's Mark V and Mark VI turbine control systems. These modules are installed across critical global infrastructure including petrochemical refineries, nuclear power stations, combined-cycle gas turbine plants, and offshore oil and gas platforms. The 531X board family handles analog I/O conditioning, DC power conversion, communication interfacing, and processor-level control functions within the Mark V TMR (Triple Modular Redundant) and simplex architectures. Due to the long operational lifecycles of turbine assets — frequently exceeding 25–30 years — the 531X Series remains one of the most actively sourced legacy control board families in the industrial spare parts market.

The Evolution of 531X Architecture

The 531X board series was introduced as part of GE's Mark V turbine control platform in the late 1980s and early 1990s, succeeding the earlier Mark IV architecture. The Mark V system introduced a fully digital, microprocessor-based control philosophy with redundant I/O and communication buses. The 531X boards were designed to interface directly with the Mark V's VCMI (VME Communication Module Interface) and JBus backplane infrastructure.

As GE transitioned to the Mark VI platform (mid-1990s onward) and subsequently the Mark VIe (2000s), the 531X Series entered a maintenance and obsolescence phase. GE ceased active production of most 531X variants, making third-party sourcing and refurbishment the primary supply channel for operators maintaining legacy Mark V installations. Compatibility between 531X boards and Mark VI systems is limited and requires engineering validation; direct substitution is not supported without system-level modification.

The current installed base of Mark V systems — particularly in developing markets and long-lifecycle baseload plants — ensures continued demand for 531X spare parts through at least the 2030s.

531X Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the GE 531X Series, categorized by primary function. Each model is a discrete board assembly designed for slot-specific installation within the Mark V control cabinet.

DC Power & Analog Conditioning Boards

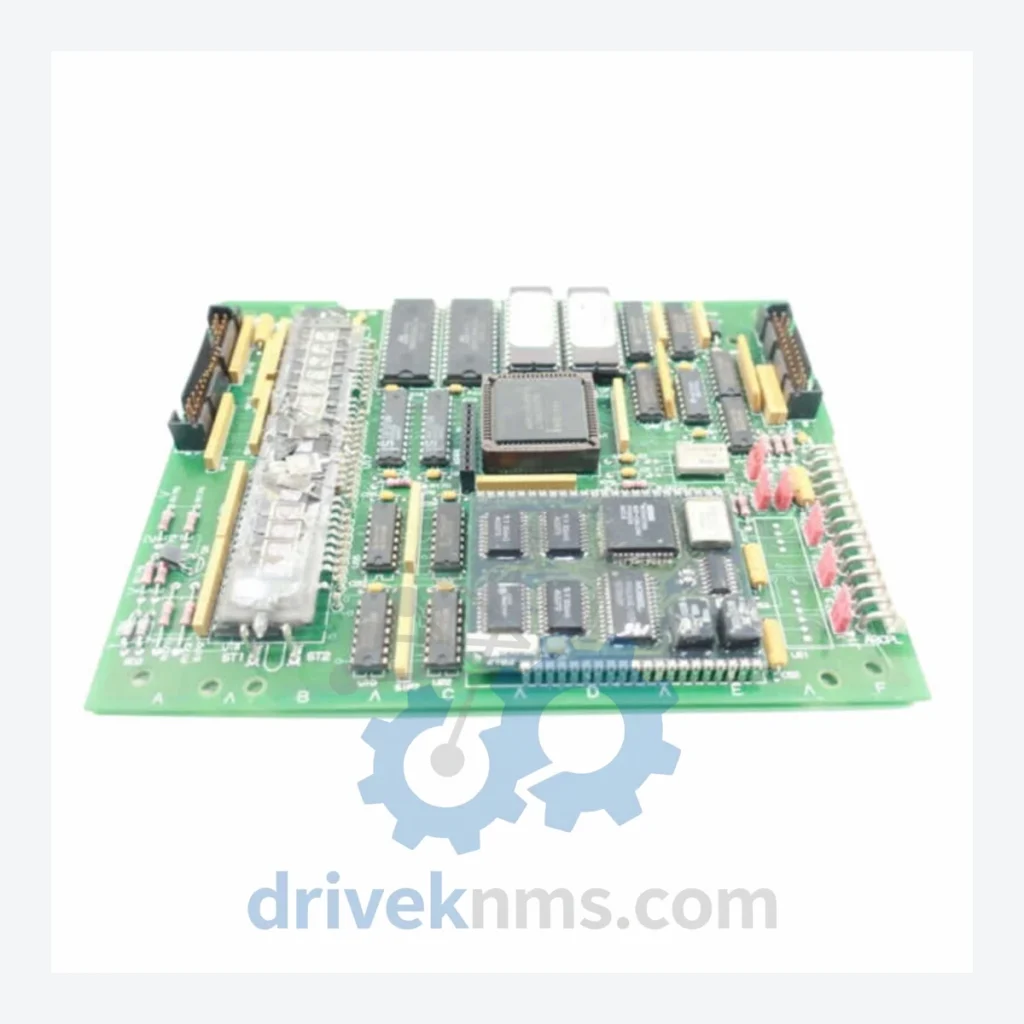

• 531X301DCCAGG2DC: DC-to-DC power converter and analog conditioning board for Mark V I/O core power rail distribution.
• 531X301DCCAPG1: DC power conditioning assembly, primary variant for Mark V simplex panel configurations.
• 531X111PSHARG1: Power supply board providing regulated DC output to Mark V processor and I/O racks.
• 531X121PCHARG1: High-current DC power conditioning module for Mark V TMR cabinet power distribution.
• 531X180PCHARG1: Extended-range DC power board used in high-load Mark V installations.

Analog Input / Output (AI/AO) Boards

• 531X307LTBAJG1: Low-level thermocouple input board; supports Type K, J, and T thermocouple inputs for turbine temperature monitoring.
• 531X309LTBAJG1: Extended thermocouple input board with additional channel capacity for exhaust temperature arrays.
• 531X135PRGARG1: Analog output board providing 4–20 mA signals to actuators and valve positioners.
• 531X122PCHARG1: Analog input conditioning board for pressure and flow transmitter signals.

Digital Input / Output (DI/DO) Boards

• 531X301DCCARG1: Digital contact input board for discrete field device status monitoring within Mark V I/O racks.
• 531X113PSHARG1: Digital output relay board for solenoid valve and trip relay actuation.
• 531X124PCHARG1: High-density digital input board for turbine protection logic inputs.
• 531X308LTBAJG1: Digital I/O combination board used in Mark V TMR voting logic configurations.

Communication & Processor Boards

• 531X158APCAJG1: Application processor board; executes control application code within the Mark V VCMI architecture.
• 531X139APCAJG1: Communication processor board supporting JBus and serial data exchange between Mark V panels.
• 531X174APCAJG2: Advanced processor board variant with expanded memory for complex turbine control sequences.
• 531X301DCCAGG1DC: DC bus communication and conditioning board, predecessor variant to the DCCAGG2DC revision.

Sourcing Hard-to-Find & Obsolete 531X Series Parts

GE formally discontinued active manufacturing of the 531X Series boards concurrent with the Mark V end-of-life announcement. Operators running Mark V systems are responsible for maintaining their own spare parts inventory or sourcing from the secondary market. DriveKNMS maintains a dedicated inventory of 531X Series boards sourced from decommissioned Mark V panels, controlled shutdowns, and OEM surplus channels.

Quality Control for the 531X Range

The 531X Series boards incorporate multi-layer PCB assemblies with surface-mount and through-hole components operating in high-vibration, high-temperature industrial environments. DriveKNMS applies a structured inspection and functional test protocol to all 531X units prior to dispatch:

• Visual Inspection: Full board examination for capacitor bulge, trace corrosion, connector pin damage, and conformal coating integrity.
• Backplane Interface Test: Verification of edge connector continuity and impedance matching to Mark V VME backplane specifications.
• DC Bus Functional Test: For power boards including 531X301DCCAGG2DC, output voltage regulation is tested under simulated load conditions across the full operating range.
• Communication Bus Validation: JBus and serial interface boards are tested for correct framing, baud rate compliance, and error-free data transmission.
• Burn-In Cycle: Selected boards undergo 48-hour powered burn-in to screen for early-life component failures prior to shipment.
