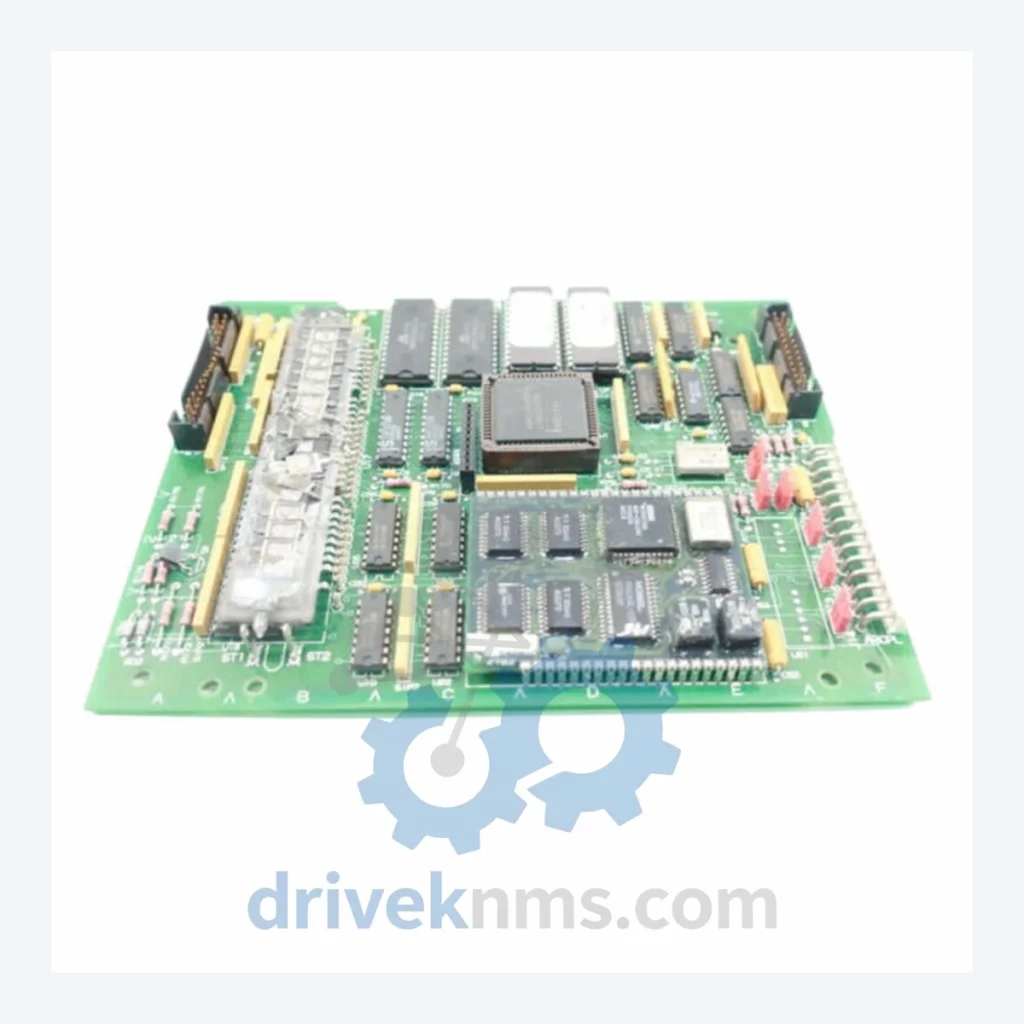

GE 531X Series Modules: 531X306LCCBCG3

Technical Dossier

Product Details And Specifications

GE 531X Series Technical Notes

The Evolution of 531X Architecture

The 531X series was introduced as part of GE's Speedtronic Mark V control system in the early 1990s, replacing the earlier Mark IV relay-based logic with fully digital, microprocessor-driven control boards. The original Mark V platform used a triple-redundant voting architecture (TCCA, TCDB, TCDC) with dedicated I/O boards communicating over a proprietary serial bus. As the platform matured through the late 1990s and into the 2000s, GE introduced the Mark VI, which retained physical compatibility with many 531X-format boards while migrating to Ethernet-based IONet communications and a more modular I/O marshalling approach.

Key architectural transitions include: the shift from ISA-bus to VME-bus backplanes, the introduction of IONET Ethernet replacing ARCNET in Mark VI, and the migration from discrete wiring to terminal board (TB) marshalling. Many 531X boards are cross-compatible between Mark V and early Mark VI installations, though firmware and configuration differences require careful validation. As of 2026, the 531X series is in the mature-to-end-of-life phase. GE (now GE Vernova) has transitioned new installations to the Mark VIe platform. However, the installed base of Mark V and Mark VI systems remains extensive, and OEM support for 531X boards has been formally discontinued for many part numbers, creating significant demand for third-party lifecycle support and certified refurbished inventory.

531X Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced part numbers within the GE 531X series. Each module is classified by primary function:

Control & Processor Modules

• 531X306LCCBCG3: Mark V/VI drive control board, LCC-type processor with ARCNET interface, triple-redundant voting support
• 531X300CCHAFM: Core control board, high-availability configuration, Mark V primary controller
• 531X301DCCAFG: Digital control card, Mark V redundant controller module, VME backplane compatible
• 531X309SPCAJG: Signal processing card, analog input conditioning for turbine speed and temperature signals
• 531X308PCSAAG: Process control sub-module, interfaces with primary TCCA voting logic

I/O Modules

• 531X305NTBAPG: Analog/digital I/O terminal board, 16-channel mixed signal interface
• 531X307LTBAKG: Low-level terminal board, thermocouple and RTD input conditioning
• 531X121PCRASG: Pulse count and resolver analog input card, turbine speed measurement
• 531X123PCRAJG: Resolver interface card, shaft position encoding for gas turbine applications
• 531X124ISKAGG: Isolated analog input card, 4–20 mA process signal acquisition
• 531X139APMARG: Analog pulse modulation card, actuator drive output for fuel control valves

Communication & Network Adapters

• 531X111PSFARG: Power supply filter and ARCNET network interface card
• 531X113PSFARG: Enhanced ARCNET communication card, Mark V inter-controller bus
• 531X175SSBAAG: Serial communication board, RS-422/RS-485 interface for HMI and historian connectivity

Power Supply Modules

• 531X132PRUALG: Regulated power supply module, 28 VDC output for Mark V I/O bus
• 531X133PRUAMG: Dual-output regulated power supply, primary and redundant rail support
• 531X134EPSAMG: Enhanced power supply assembly, high-current output for large I/O configurations

Quality Control for the 531X Range

The 531X series presents specific test challenges due to its VME backplane bus architecture, ARCNET communication protocol, and triple-redundant voting logic. Standard bench power-up is insufficient to validate these boards. DriveKNMS applies the following test protocol to all 531X units:

• Backplane bus integrity test: VME address and data lines verified for signal integrity and termination compliance
• ARCNET communication validation: Each board is placed in a live ARCNET ring and verified for correct node addressing, packet transmission, and error recovery
• Analog I/O calibration: All analog input and output channels are calibrated against NIST-traceable references; 4–20 mA loops verified at 0%, 25%, 50%, 75%, and 100% of span
• Processor functional test: Control boards are loaded with Mark V diagnostic firmware and exercised through full scan-cycle operation
• Thermal soak: Units are operated at rated temperature for a minimum of 4 hours to screen for latent component failures
• Visual and component inspection: All electrolytic capacitors, EPROM chips, and battery-backed SRAM are inspected and replaced as required prior to shipment
