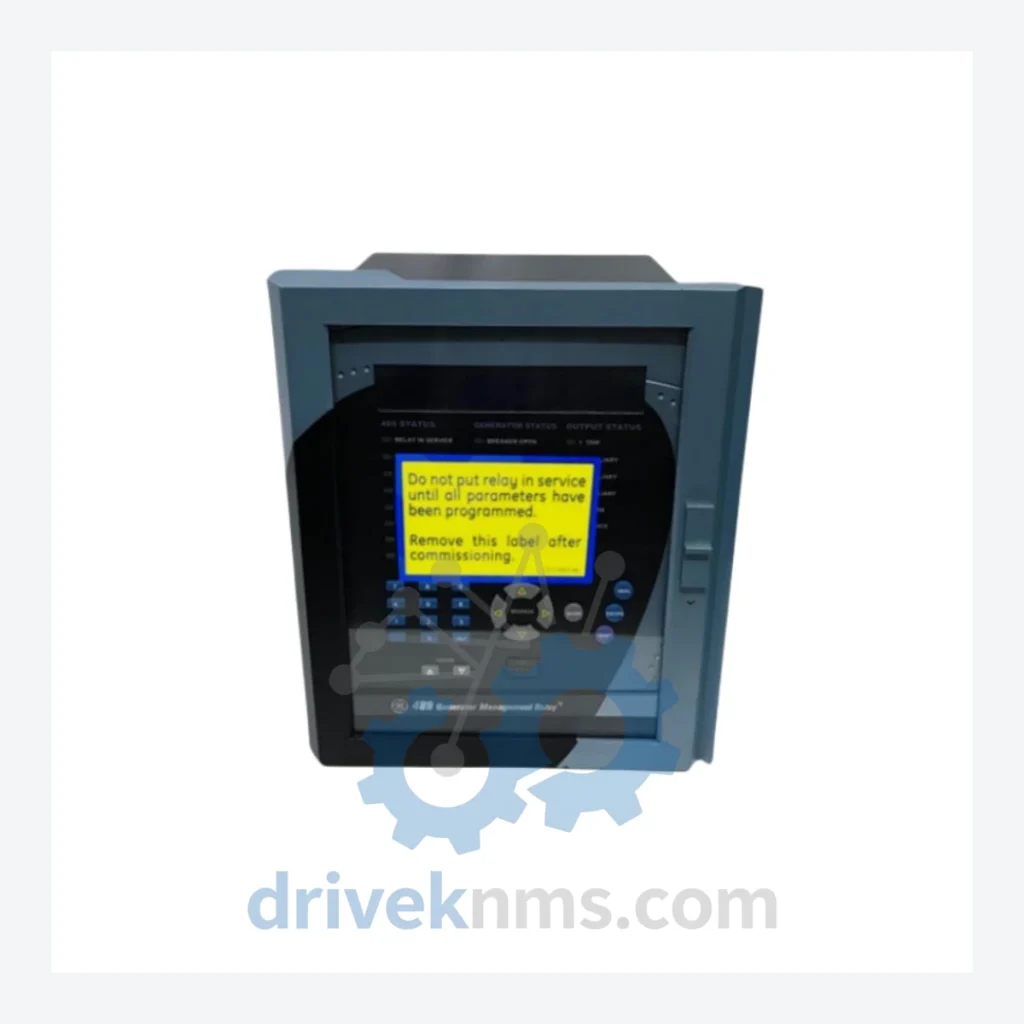

GE Multilin 750 Series Management Relays

Technical Dossier

Product Details And Specifications

GE Multilin 750 Series: Comprehensive Module Range and Technical Overview

The GE Multilin 750 Series Motor Management Relay is a purpose-engineered protection and control platform deployed across global heavy industry, including petrochemical complexes, nuclear auxiliary systems, offshore platforms, and refinery motor control centers (MCCs). Designed to protect medium- and low-voltage induction motors rated from fractional horsepower to several thousand horsepower, the 750 Series integrates multi-function protection, metering, and communications into a single 19-inch rack-mountable or panel-mount chassis. Its installed base spans decades of continuous operation in facilities where unplanned motor downtime carries six-figure-per-hour cost implications. The relay's modular ordering structure — encoding protection functions, I/O configuration, communications, and power supply directly into the model number — allows end users and OEMs to specify exact functionality without over-provisioning hardware.

The Evolution of 750 Series Architecture

The GE Multilin 750 platform was introduced in the mid-1990s as a successor to discrete electromechanical and early solid-state motor protection schemes. Its architecture is built around a fixed-function DSP core with a modular I/O backplane, allowing field configuration of protection elements via front-panel keypad or RS-485/Modbus RTU communications link. Early firmware revisions (v1.x–v3.x) supported basic overload, phase unbalance, and ground fault protection. Subsequent firmware generations added thermal model sophistication, RTD-based stator and bearing temperature monitoring, and expanded communications options including DeviceNet and Profibus DP adapters.

The model number structure encodes the hardware build at the factory. For the unit 750-P5-G5-S5-HI-A20-R-E: P5 denotes the standard protection module; G5 specifies the ground fault sensing input; S5 indicates the standard I/O module; HI selects the high-interrupting output relay configuration; A20 specifies 120 VAC control power input; R adds the RS-485 communications port; E denotes the enhanced display option. Compatibility between firmware versions and hardware modules is strictly version-controlled — field mixing of mismatched module generations causes initialization faults and must be avoided. Units manufactured before 2005 use a 68HC16-based processor; post-2005 units transitioned to a 32-bit RISC core with expanded memory for event logging (up to 1,024 time-stamped events at 1 ms resolution).

GE Multilin formally classified the 750 Series as a mature product in 2018, with active repair and spare parts support continuing through authorized service channels. The recommended modern replacement platform is the GE Multilin 869 Motor Protection System, which offers IEC 61850 GOOSE messaging, enhanced cybersecurity (role-based access control), and a wider CT input range. However, the 750 Series remains the dominant installed relay in brownfield MCC retrofits where panel space, wiring infrastructure, and existing SCADA Modbus polling configurations make a like-for-like replacement the lowest-risk option.

750 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked configurations within the GE Multilin 750 Series. Each unit is a discrete factory-configured assembly; field reconfiguration of hardware modules is not supported.

750-P5-G5-S5-HI-A20-R-E: Standard protection, ground fault, std I/O, high-interrupt output, 120VAC, RS-485, enhanced display — the subject unit of this listing.

750-P5-G5-S5-HI-A20-R: Identical to above without enhanced display; standard 4-line LCD front panel.

750-P5-G5-S5-HI-A20: Base configuration, 120VAC power, no communications port, standard display.

750-P5-G5-S5-HI-A24-R-E: As 750-P5-G5-S5-HI-A20-R-E but with 240VAC control power input.

750-P5-G5-S5-HI-D24-R-E: 24VDC control power input variant; used in battery-backed MCC applications.

750-P5-G5-S5-LO-A20-R-E: Low-interrupting output relay configuration; suited for lower fault-current environments.

750-P5-G5-S5-LO-A20-R: Low-interrupt output, 120VAC, RS-485, standard display.

750-P5-G5-S5-HI-A20-N-E: DeviceNet communications option in place of RS-485; for Allen-Bradley DeviceNet scanner integration.

750-P5-G5-S5-HI-A20-P-E: Profibus DP communications option; used in Siemens SIMATIC S7 and ABB System 800xA environments.

750-P5-G5-S5-HI-A20-E-E: Ethernet (10Base-T Modbus TCP) communications option; later firmware revisions only.

750-P5-G5-S1-HI-A20-R-E: Simplified I/O module (S1) with reduced discrete input/output count; cost-optimized for basic motor starters.

750-P5-G5-S3-HI-A20-R-E: Mid-range I/O module (S3); adds two additional analog inputs for process variable monitoring.

750-P5-G1-S5-HI-A20-R-E: Simplified ground fault module (G1); residual connection ground fault only, no zero-sequence CT input.

750-P5-G5-S5-HI-A20-R-E-N: NEMA 4X front panel option; for wash-down or outdoor-rated enclosure installations.

750-P5-G5-S5-HI-A20-R-E-T: Conformal-coated PCB option; for high-humidity or corrosive-atmosphere installations (offshore, pulp and paper).

750-P5-G5-S5-HI-A20-R-E-H: Extended temperature range option; rated for ambient operation to +70°C without derating.

750-P5-G5-S5-HI-A20-R-E-C: CSA/UL dual-certified variant; required for Canadian and US NEC-compliant installations.

Sourcing Hard-to-Find & Obsolete 750 Series Parts

DriveKNMS maintains a dedicated inventory program for GE Multilin 750 Series units and sub-assemblies, including factory-discontinued configurations that are no longer available through GE Grid Solutions' standard distribution channels. Our sourcing scope covers complete relay assemblies, replacement display modules, communications adapter cards (RS-485, DeviceNet, Profibus DP), power supply boards, and output relay modules. All units sourced through DriveKNMS are subject to provenance verification — we do not accept units of unknown origin or units with evidence of unauthorized internal modification.

Quality Control for the 750 Series Range

Each GE Multilin 750 Series unit processed by DriveKNMS undergoes a structured functional verification protocol prior to dispatch. The test sequence addresses the relay's primary failure modes as identified from field return analysis: output relay contact degradation, RS-485 transceiver failure, display backlight failure, and power supply capacitor aging.

The verification protocol includes: control power input acceptance test across the rated voltage range (±15%); protection element pickup verification for overload (thermal model), phase unbalance, ground fault, and undercurrent elements using a three-phase relay test set (Omicron CMC or equivalent); output relay contact resistance measurement (acceptance threshold: <100 mΩ); communications port loopback test with Modbus RTU function code 03/06 read-write verification; front panel display pixel integrity check; and event log clear and timestamp accuracy verification. Units that fail any element of the protocol are quarantined and not offered for sale. Test records are retained for a minimum of five years and are available to customers on request.
