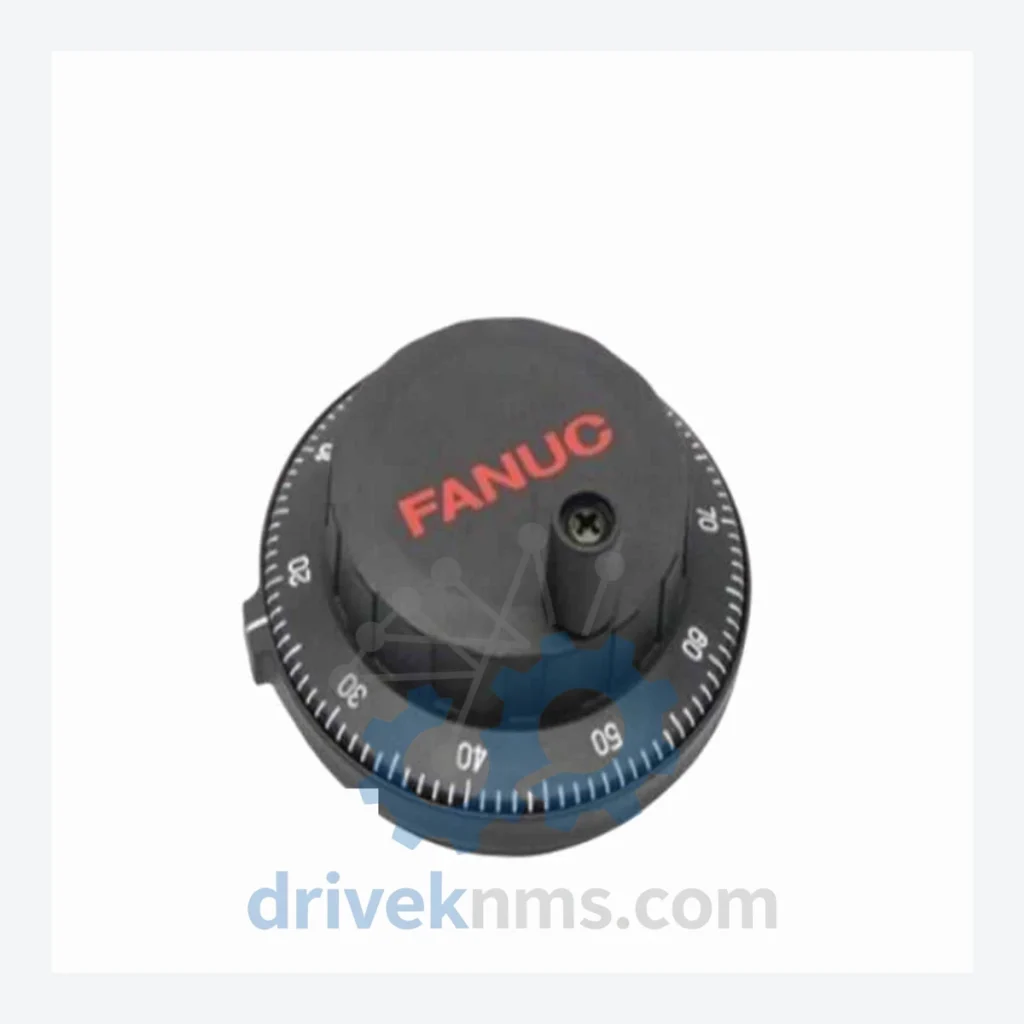

Fanuc A860-0203 Pulse Generator Modules: A860-0203-T001

Technical Dossier

Product Details And Specifications

Fanuc A860-0203 Series: Comprehensive Module Range and Technical Overview

The Fanuc A860-0203 series comprises manual pulse generators (MPGs) and position encoders deployed across CNC machining centers, turning centers, and multi-axis servo systems in heavy industrial environments including petrochemical plants, nuclear facility maintenance operations, and large-scale precision manufacturing. These units interface directly with Fanuc αi-series and βi-series servo amplifiers, providing handwheel-based axis control and position feedback in applications where operator-level manual intervention is required during setup, probing, and maintenance cycles. The A860-0203 series has accumulated a substantial installed base across Fanuc 0i, 16i, 18i, 21i, 30i, 31i, and 32i CNC control platforms, making it one of the most widely referenced MPG part families in the global CNC spare parts market.

The Evolution of A860-0203 Architecture

The A860-0203 series was introduced as part of Fanuc's standardized handwheel interface ecosystem, designed to replace earlier discrete encoder assemblies with a self-contained, sealed pulse generator unit. Early variants (T001–T006) used a 25-pulse-per-revolution mechanical encoder with a 4-pin connector interface compatible with the Fanuc I/O Link and direct MPG input boards. Subsequent revisions (T010–T018) introduced improved sealing ratings (IP54 and above), revised cable lengths, and connector types adapted for panel-mount and pendant-mount configurations. The T020 and T021 variants represent the most recent production configurations, featuring reinforced cable strain relief and revised detent mechanisms for improved tactile feedback in high-cycle environments. Compatibility across the series is largely maintained at the signal level (A/B phase differential output, 5V DC supply), but connector pinouts and cable lengths vary by suffix — substitution without verification of the mechanical and electrical interface is not recommended. As of 2024, the majority of T001–T006 variants are classified as end-of-life by Fanuc, with T010 onward remaining in active production or available through authorized distribution channels.

A860-0203 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented A860-0203 series range. Each unit is a manual pulse generator (MPG) variant differentiated by cable length, connector type, and mechanical configuration:

A860-0203-T001: Standard MPG, 25 PPR, 4-pin connector, 1m cable, panel-mount body
A860-0203-T002: Standard MPG, 25 PPR, 4-pin connector, 2m cable, panel-mount body
A860-0203-T003: Standard MPG, 25 PPR, 4-pin connector, 3m cable, panel-mount body
A860-0203-T004: Standard MPG, 25 PPR, 4-pin connector, 4m cable, panel-mount body
A860-0203-T005: Standard MPG, 25 PPR, 4-pin connector, 5m cable, panel-mount body
A860-0203-T006: Standard MPG, 25 PPR, 4-pin connector, 6m cable, panel-mount body
A860-0203-T010: Revised MPG, improved IP54 sealing, 1m cable, updated connector housing
A860-0203-T011: Revised MPG, IP54, 1.5m cable, pendant-mount configuration
A860-0203-T012: Revised MPG, IP54, 2m cable, pendant-mount configuration
A860-0203-T013: Revised MPG, IP54, 3m cable, pendant-mount configuration
A860-0203-T014: Revised MPG, IP54, 4m cable, pendant-mount configuration
A860-0203-T015: Revised MPG, IP54, 5m cable, pendant-mount configuration
A860-0203-T016: Revised MPG, IP54, 6m cable, pendant-mount configuration
A860-0203-T017: Revised MPG, IP54, 7m cable, extended-reach pendant application
A860-0203-T018: Revised MPG, IP54, 8m cable, extended-reach pendant application
A860-0203-T020: Current production MPG, reinforced strain relief, 2m cable, updated detent mechanism
A860-0203-T021: Current production MPG, reinforced strain relief, 3m cable, updated detent mechanism

Sourcing Hard-to-Find & Obsolete A860-0203 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life Fanuc A860-0203 variants, with particular focus on T001 through T006 units that are no longer available through Fanuc's standard distribution network. For facilities operating legacy Fanuc 0i-A, 16i-A, or 18i-A systems where the original MPG interface board is not compatible with current-production T020/T021 units, sourcing a functionally equivalent legacy variant is the lowest-risk path to restoring machine operability without control system modification. DriveKNMS sources A860-0203 units through verified industrial surplus channels, performs incoming inspection against Fanuc's published electrical specifications, and maintains traceability records for each unit. Customers requiring long-term maintenance agreements for multi-machine fleets can contact DriveKNMS to discuss consignment stock arrangements and priority allocation for critical spare parts.

Quality Control for the A860-0203 Range

Each A860-0203 unit processed by DriveKNMS undergoes a structured verification protocol prior to dispatch. Electrical testing includes supply voltage verification (4.75–5.25V DC), A/B phase output signal integrity check at rated PPR, and differential signal amplitude measurement. Mechanical inspection covers detent engagement force, shaft play within Fanuc's specified tolerance, and cable jacket integrity including strain relief condition. Connector pins are inspected for corrosion, deformation, and correct retention force. Units exhibiting encoder signal dropout, irregular phase relationship, or mechanical shaft binding are quarantined and not offered for sale. Test records are retained and available upon request for quality-critical procurement processes.
