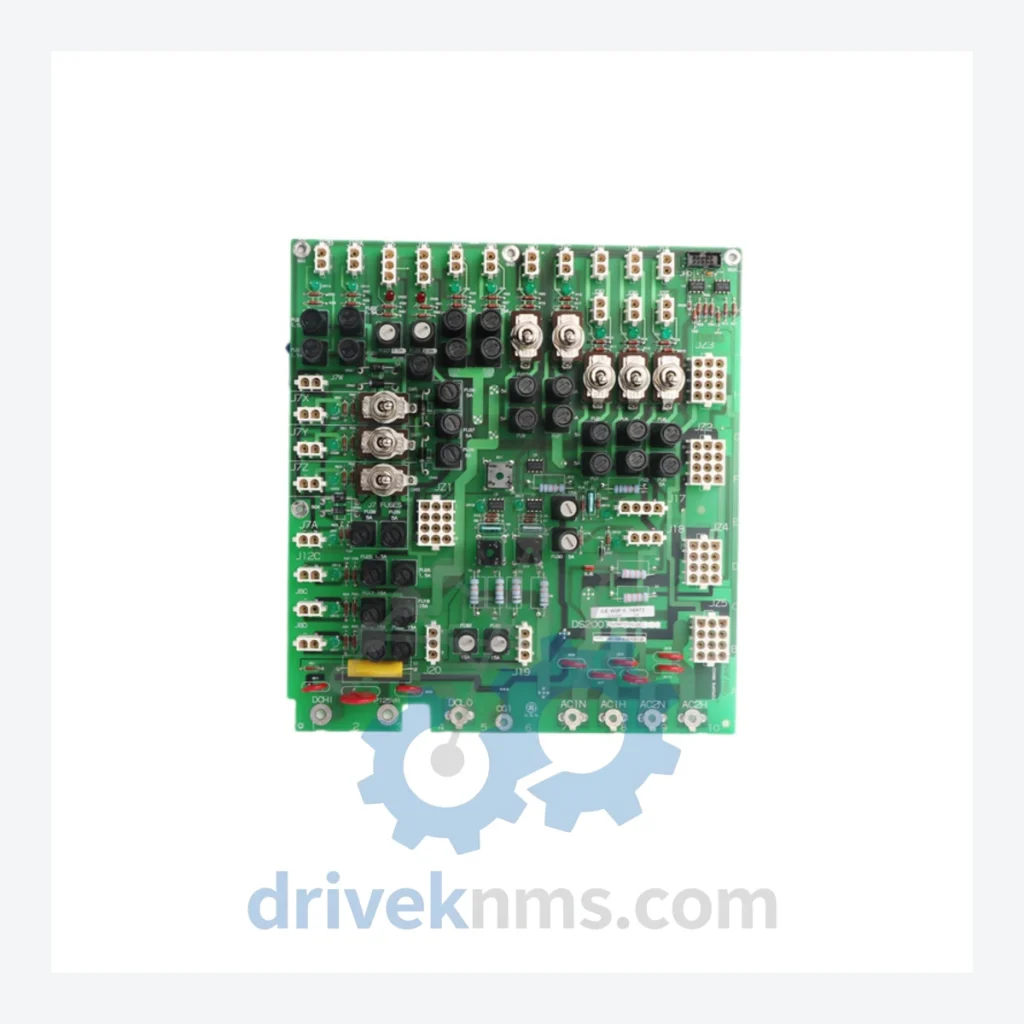

GE AINP Series Modules – AINP-01 64530275E

Technical Dossier

Product Details And Specifications

GE AINP Series Technical Notes

The GE AINP (Analog Input) Series of input bridge control boards occupies a critical position in GE's legacy drive and motion control architecture, deployed extensively across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and continuous-process chemical plants. These boards serve as the analog signal conditioning and bridge interface layer between field instrumentation and GE's drive control processors, making them essential components in long-lifecycle industrial installations where replacement sourcing is operationally critical.

The AINP-01 (Code 64530275E) is among the most widely referenced variants in the field, used in GE DC drive systems as the primary analog input processing board. Its continued demand in the aftermarket reflects the scale of installed base across facilities that have operated GE drive systems for 15–30+ years without full system replacement.

The Evolution of AINP Series Architecture

The AINP Series was developed as part of GE's modular analog interface strategy for its DC drive product lines, including the GE DC300, DC500, and related drive families. Early revisions of the AINP board (pre-revision D) used through-hole component construction with discrete op-amp signal chains. Later revisions (E and beyond, including the 64530275E code) transitioned to mixed SMT/through-hole construction, improving noise immunity and reducing board footprint.

As GE's drive division transitioned through ownership changes (GE → Converteam → GE Power Conversion → ABB), support for legacy AINP boards shifted from OEM to third-party aftermarket channels. No direct modern equivalent exists; system upgrades typically require full drive replacement, making long-term spare parts availability the primary maintenance strategy for facilities not yet scheduled for capital replacement.

AINP Series Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed variants and associated components within the GE AINP and related analog input/bridge control board families used in GE DC drive systems. Each entry reflects a distinct functional role within the drive control architecture.

AINP-01 (64530275E): Primary analog input bridge control board, Rev E assembly, DC drive systems.
AINP-01 (64530275D): Rev D variant; earlier op-amp topology, compatible with pre-Rev E backplanes.
AINP-01 (64530275C): Rev C; through-hole construction, used in early DC300 series drives.
AINP-02: Dual-channel analog input variant; used in multi-axis bridge configurations.
AINP-03: Extended-range analog input board; supports ±15V field signal inputs.
AINP-04: High-isolation analog input board; designed for high-voltage drive environments.
DS3800AINP: Mark IV turbine control system analog input board; functionally related, separate product line.
DS200AINPG1A: Mark V analog input board; 16-channel differential input, used in GE turbine control.
DS200AINPG1B: Mark V analog input board Rev B; updated isolation transformer specification.
IS200AINPAH1A: Mark VI analog input board; 16-channel, 4–20mA and ±10V compatible.
IS200AINPAH1B: Mark VI analog input board Rev B; revised EMC filtering.
IS215AINPAH1A: Mark VIe analog input board; DIN rail mount, EtherNet/IP compatible.
531X111AINPAM1: GE Fanuc Series 90 analog input module; 16-channel, 12-bit resolution.
IC693ALG221: Series 90-30 analog input module; 4-channel, 0–10V / 4–20mA.
IC693ALG222: Series 90-30 analog input module; 4-channel, ±10V bipolar input.
IC693ALG223: Series 90-30 analog input module; 8-channel, current input, 4–20mA.
IC693ALG392: Series 90-30 combination analog I/O module; 4 inputs / 2 outputs.
IC694ALG221: Series 90-30 enhanced analog input; improved noise rejection vs IC693 series.

Sourcing Hard-to-Find & Obsolete AINP Series Parts

The GE AINP-01 and its revision variants are no longer manufactured by the OEM. GE Power Conversion (now ABB) does not offer new production of these boards, and OEM repair services have been discontinued for most revision codes. The installed base, however, remains active across hundreds of industrial facilities globally, creating sustained demand for tested surplus and refurbished units.

Quality Control for the AINP Series Range

AINP series boards present specific testing challenges due to their role as precision analog signal conditioners. Standard go/no-go power-on testing is insufficient to verify functional integrity. DriveKNMS applies the following test protocol to all AINP series units:

Visual Inspection: Full PCB inspection under magnification for solder joint integrity, capacitor ESR degradation indicators, and relay contact condition (where applicable). Boards with evidence of thermal stress, corrosion, or prior unauthorized repair are quarantined for engineering review before proceeding.

Component-Level Verification: Critical analog components (precision resistors, reference ICs, op-amp arrays) are verified against original GE schematic values using in-circuit test equipment. Out-of-tolerance components are replaced with OEM-equivalent or superior-specification parts.

Functional Signal Chain Test: Each board is tested under simulated drive operating conditions. Input signal ranges (voltage and current) are applied across the full specified range, and output signals are measured for linearity, offset error, and gain accuracy against GE's original published specifications.

Backplane Bus Communication Test: Where applicable, boards are tested in a representative backplane fixture to verify bus communication integrity, address decoding, and interrupt response — the failure modes most commonly introduced by counterfeit or improperly refurbished boards.
