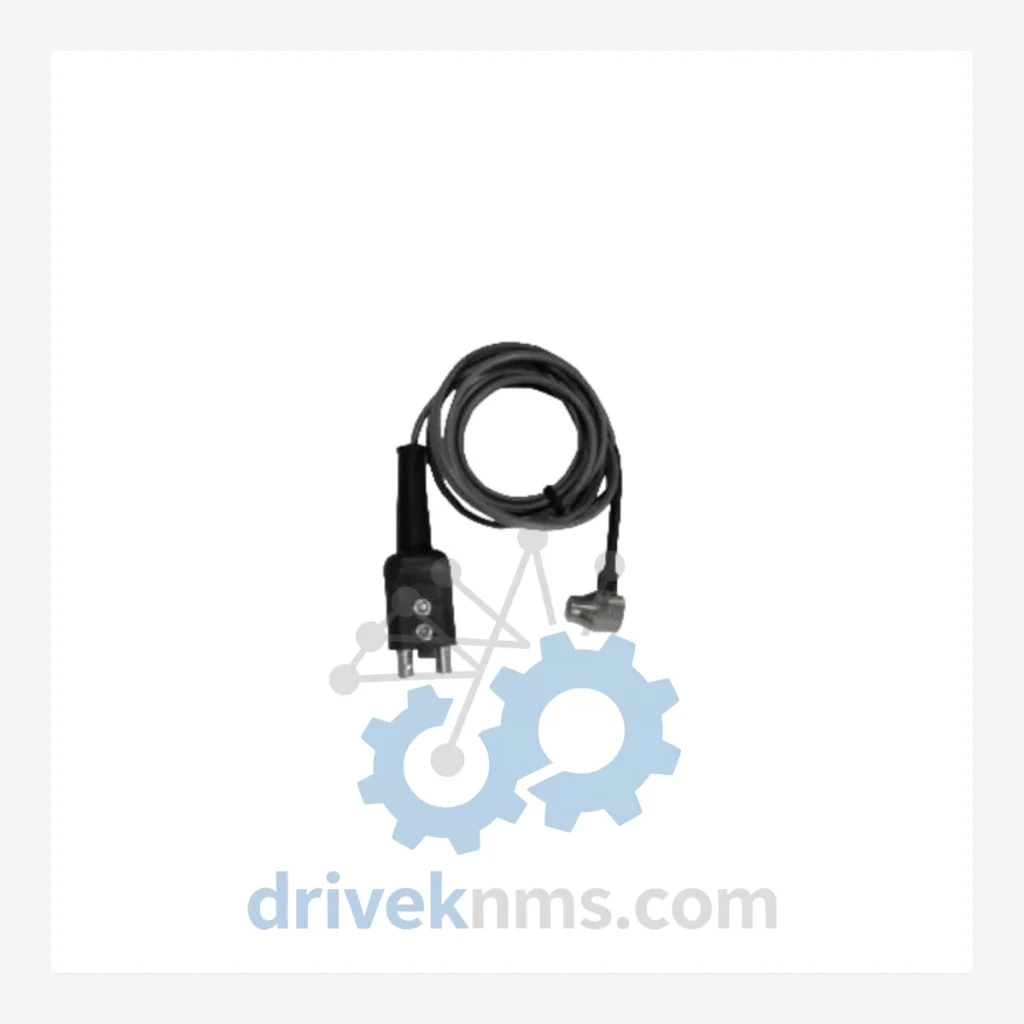

GE Bently Nevada DA512 Modules — DA512 Thickness Probe

Technical Dossier

Product Details And Specifications

GE Bently Nevada DA512 Series: Comprehensive Module Range and Technical Overview

The GE Bently Nevada DA500 series — of which the DA512 is a primary field instrument — represents one of the most widely deployed ultrasonic thickness measurement platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and crude oil refineries, the DA500/DA512 architecture provides continuous, non-intrusive wall-thickness monitoring for pressure vessels, pipelines, and heat exchangers operating under extreme temperature and pressure conditions. The series is engineered to interface directly with Bently Nevada 3500 and System 1 condition monitoring frameworks, making it a standard reference instrument in asset integrity management programs governed by API 510, API 570, and ASME PCC-2 standards.

The Evolution of DA512 Architecture

The DA500 platform was introduced by Bently Nevada (subsequently acquired by GE Energy in 2002) as a dedicated corrosion and erosion monitoring solution for fixed-plant applications. Early-generation DA500 probes operated on single-element piezoelectric transducer technology, requiring periodic manual calibration and offering limited temperature compensation. The DA512 represents a second-generation refinement: it incorporates a dual-element transducer configuration that separates the transmit and receive functions, significantly reducing near-surface dead zones and improving accuracy in high-attenuation materials such as duplex stainless steel and carbon steel with internal corrosion product buildup.

Integration compatibility evolved across three distinct eras. First-generation DA500 units communicated via analog 4–20 mA loops to standalone data loggers. Second-generation DA512 units added RS-485 Modbus RTU capability, enabling direct integration with DCS platforms including Honeywell TDC 3000, ABB Advant, and Yokogawa CENTUM. Third-generation variants introduced HART protocol overlay, allowing coexistence on existing 4–20 mA wiring infrastructure while transmitting digital diagnostic data. Current installations in mature refineries frequently mix all three generations, creating compatibility challenges that require careful signal conditioning and termination management during system upgrades or module replacements.

DA512 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified DA500/DA512 series components and compatible Bently Nevada field instruments. Each entry reflects a distinct functional role within the ultrasonic thickness monitoring and condition monitoring ecosystem.

DA512: Dual-element ultrasonic thickness probe, standard temperature range, 5 MHz nominal frequency
DA500: Single-element ultrasonic thickness probe, first-generation baseline instrument, analog output only
DA501: DA500-series probe with extended cable assembly, 10-meter integral cable, field-splice rated
DA505: High-temperature variant, rated to 200°C continuous contact, ceramic delay line
DA510: Immersion-style thickness probe for liquid-coupled applications, stainless steel housing
DA515: DA512 variant with integral temperature compensation module, dual-output 4–20 mA + RS-485
DA520: Wide-beam probe for coarse-grain materials (cast iron, austenitic weld zones), 2.25 MHz
DA530: Miniature profile probe for restricted-access piping, OD ≥ 1 inch, 10 MHz
DA540: Clamp-on permanent installation probe with integral couplant reservoir, ATEX Zone 1 rated
DA550: DA500-series transmitter/receiver electronics module, DIN-rail mount, pairs with passive probes
DA560: Multiplexer interface module, supports up to 16 DA512-series probes on single RS-485 bus
DA570: Wireless HART adapter for DA512 series, ISA100.11a compatible gateway interface
330130-080-00-00: Bently Nevada 3300 XL 8mm proximity transducer, commonly co-deployed with DA512 in rotating equipment skids
330180-91-00: Bently Nevada 3300 series extension cable, 5-meter, used in DA512 installation assemblies
3500/42M: Bently Nevada 3500 Proximitor/Seismic Monitor module, primary rack-based companion to DA512 field data
3500/60: Bently Nevada 3500 Temperature Monitor, co-installed with DA512 for combined thickness/temperature trending
3500/22M: Bently Nevada 3500 Transient Data Interface, archives DA512 waveform data for System 1 analysis
135489-01: DA512 replacement couplant pad kit, 50-unit pack, silicone-based, rated -40°C to +180°C

Sourcing Hard-to-Find & Obsolete DA512 Parts

GE Bently Nevada formally transitioned the DA500 series to a mature/end-of-active-production status following the broader consolidation of GE's condition monitoring portfolio under Baker Hughes. OEM new-build orders for DA512 units are no longer fulfilled through standard distribution channels. However, the installed base across global refining and power generation assets remains substantial, and demand for replacement probes, extension cables, and compatible electronics modules continues at high volume.

DriveKNMS maintains a dedicated inventory of DA512-series components sourced through certified secondary market channels, including decommissioned plant asset liquidations, authorized distributor overstock, and factory-refurbished units. All DA512 probes in DriveKNMS inventory are subject to dimensional verification against OEM drawings, couplant interface inspection, and functional output testing prior to dispatch. For facilities operating under long-term service agreements or turnaround maintenance schedules, DriveKNMS offers consignment stocking arrangements to ensure DA512 availability without capital commitment.

Quality Control for the DA512 Range

The DA512 dual-element transducer design presents specific quality verification requirements that differ from standard single-element ultrasonic probes. DriveKNMS applies the following test protocol to all DA512 units processed through its facility:

Transducer element integrity check: Each transmit and receive element is individually excited and the response waveform is compared against a reference signature captured from a known-good unit. Delamination, crystal fracture, or backing material degradation produces characteristic waveform distortions that are flagged for rejection.

Dead-zone measurement: The probe is coupled to a calibration block of known geometry (typically a 25 mm carbon steel step block per ASTM E797) and the minimum measurable thickness is recorded. DA512 units must achieve a dead zone of ≤ 2.5 mm to pass.

Temperature cycling: High-temperature DA505/DA512 variants are subjected to a 4-hour thermal soak at rated maximum temperature followed by functional re-verification to confirm that the delay line bond and crystal mounting have not degraded.

Cable and connector inspection: Integral cable assemblies are tested for continuity, insulation resistance (minimum 100 MΩ at 500 VDC), and connector pin retention force. Lemo and BNC connector variants are both supported.

Output signal verification: For DA512 units with active electronics (4–20 mA or RS-485 output), the full output range is swept against a calibrated thickness reference and linearity error is recorded. Units exceeding ±0.1 mm linearity deviation across the 2–50 mm measurement range are rejected.
