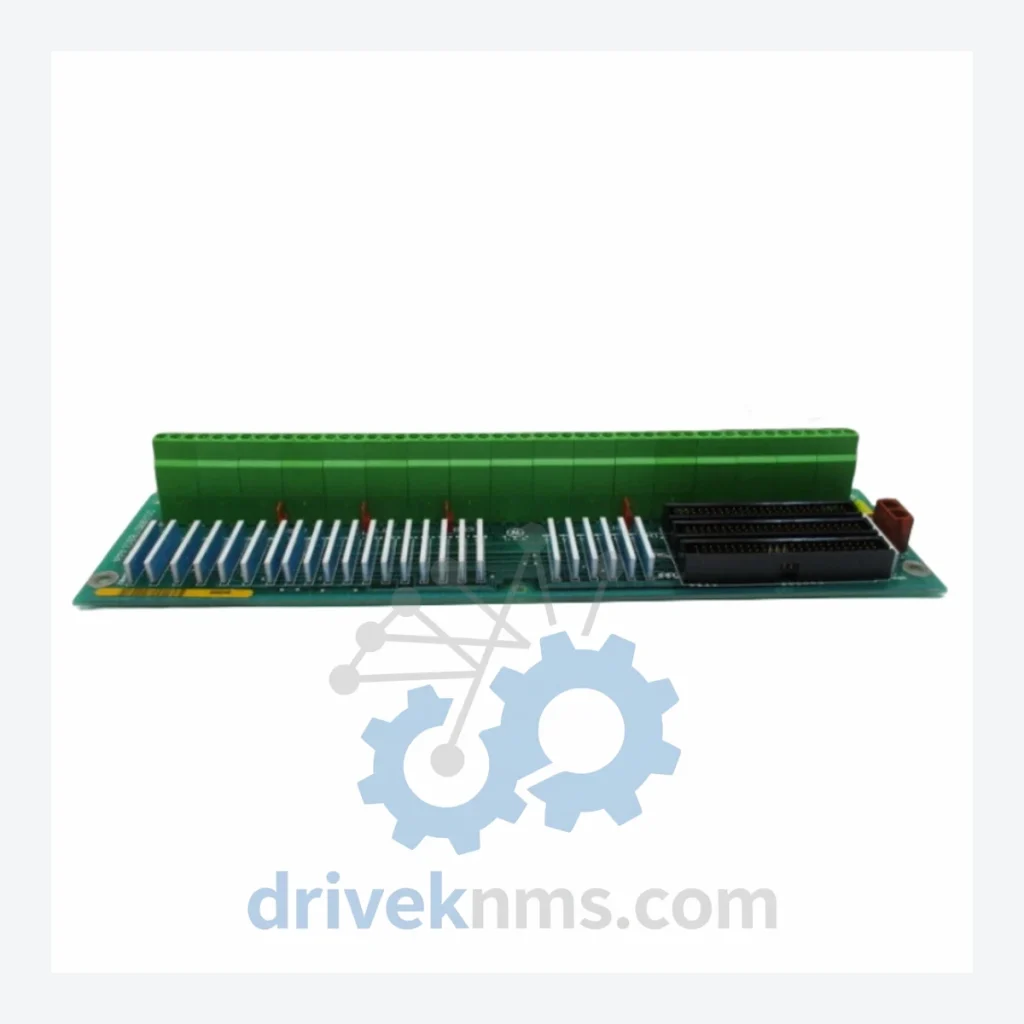

GE DS200DTBBG1AAA Relay Board: DS200 Series

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The GE DS200 series is a family of printed circuit board assemblies developed by GE Energy (now Baker Hughes) for use within the Mark V and Mark VI Speedtronic turbine control systems. These systems are deployed globally in gas turbine, steam turbine, and combined-cycle power generation facilities, including petrochemical plants, nuclear auxiliary systems, offshore platforms, and oil refineries. The DS200 series represents the backbone of turbine protection, sequencing, and I/O interfacing in installations that demand continuous uptime measured in decades. Installed base estimates place Mark V-based systems in thousands of heavy industrial sites worldwide, making DS200 boards among the most critically sourced spare parts in the power generation sector.

The Evolution of DS200 Architecture

The DS200 board family was introduced alongside the Mark V Speedtronic platform in the early 1990s as GE's successor to the Mark IV control system. The Mark V architecture introduced triple-redundant processor voting (R, S, T cores) and distributed I/O via the IONET and ARCNET communication buses. DS200 boards were designed to slot into the Mark V panel backplane, with each board assigned a specific functional role — relay output, analog input, digital I/O, power conditioning, or communication bridging.

DS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced DS200 series part numbers classified by functional category. Each board is a field-replaceable unit (FRU) within the Mark V panel.

Relay Output Boards

• DS200DTBBG1AAA: Relay output terminal board; interfaces relay coil drive signals to field wiring for turbine protection circuits.
• DS200DTBAG1AAA: Alternate relay terminal board variant; used in earlier Mark V panel configurations with modified relay mapping.
• DS200TBCAG1ABB: Terminal board for contact input/output; provides screw-terminal field wiring interface for discrete I/O signals.
• DS200TBQDG1ACA: Quad relay output board; supports four independent relay channels for sequencing and alarm annunciation.

Digital & Analog I/O Boards

• DS200SDCIG1AFA: Servo driver and control interface board; drives electro-hydraulic servo valves for fuel and inlet guide vane control.
• DS200SDCCG1AEC: Servo driver board variant; compatible with specific servo actuator configurations in steam turbine applications.
• DS200AAHAH1AKF: Analog input board; processes thermocouple and RTD signals for exhaust temperature monitoring arrays.
• DS200SLCCG1AFG: Speed and load control card; handles turbine speed sensing inputs and load reference signal conditioning.

Processor & Control Boards

• DS200TCQAG1BHF: Turbine control processor board (TCQA); primary sequencing and protection logic processor for Mark V R/S/T core.
• DS200TCPDG1AEC: Turbine control processor board (TCPD); handles I/O scanning and inter-processor communication within the Mark V voting architecture.
• DS200PCCAG1ACB: Power condition and control board; regulates internal panel DC bus voltages and monitors power supply health.
• DS200CTBAG1ADD: Control terminal board; central backplane interface board connecting processor cards to field I/O terminal strips.
• DS200DSPCH1ADA: Digital signal processor card; executes high-speed control algorithms for combustion dynamics and vibration monitoring.

Communication & Network Boards

• DS200IMCPG1ACB: Inter-module communication processor; manages ARCNET and IONET data exchange between Mark V panel sections.
• DS200DCFBG1BEC: Data communication and field bus board; bridges Mark V internal bus to external SCADA and historian systems via serial protocols.
• DS200SHCBG1AAA: Signal conditioning and hardware communication board; conditions analog feedback signals from field instrumentation before processor input.

Sourcing Hard-to-Find & Obsolete DS200 Parts

All DS200 boards in DriveKNMS inventory are catalogued by full part number including revision suffix, which is critical for Mark V compatibility — a board with suffix G1A may not be a drop-in replacement for a G1C revision in all panel positions. Customers are advised to provide the complete part number from the board label or the Mark V Bill of Materials (BOM) when placing inquiries. DriveKNMS can cross-reference revision compatibility and advise on acceptable substitutions where GE engineering documentation supports interchangeability.

Quality Control for the DS200 Range

DS200 boards present specific test challenges due to their integration with the Mark V backplane bus and the triple-redundant voting architecture. DriveKNMS applies the following verification procedures to all DS200 units prior to shipment:
