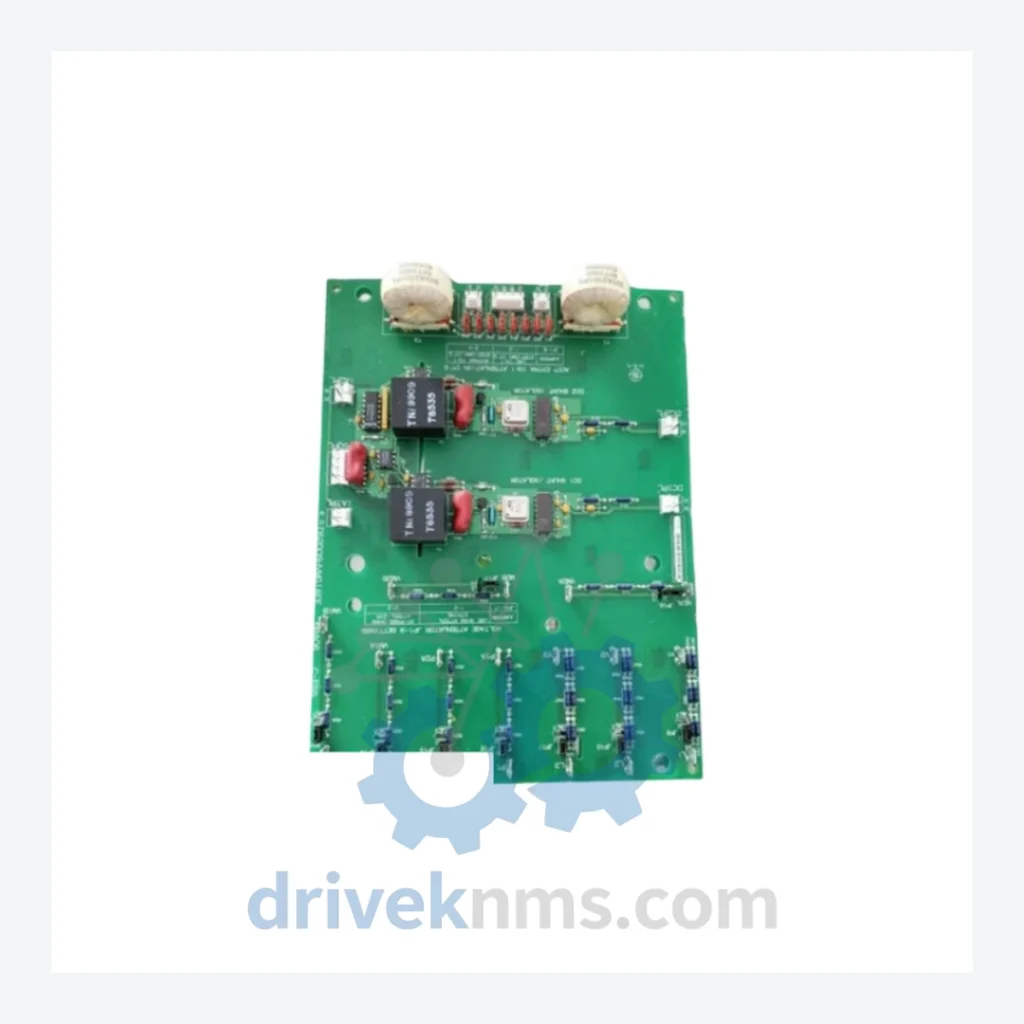

GE DS200SHVMG1AFE: Mark V DS200 Series M-Frame Interface Board

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The Evolution of DS200 Architecture

The DS200 series was introduced alongside the Mark V control system (circa 1991–1995) as a modular replacement for the earlier Mark IV and Mark II architectures. Early DS200 boards used through-hole and mixed SMT construction on multi-layer FR4 substrates, with ISA-style backplane communication. The architecture is organized around three primary racks: the (protection), (control), and (I/O) racks, each populated with function-specific DS200 modules.

DS200 Full Catalog & Functionalities (SKU List)

The following DS200 series SKUs represent the most commonly sourced modules across active Mark V installations. Each entry reflects the module's primary functional role within the turbine control rack:

DS200SHVMG1AFE: M-Frame interface board; routes high-voltage I/O signals between the Mark V rack and the turbine's field terminal boards.
DS200SDCCG1AFB: Speed and dynamics control card; processes turbine speed feedback signals and executes dynamic control algorithms.
DS200TCQAG1BFE: Turbine control quad analog I/O board; provides four-channel analog input/output for process variable monitoring.
DS200TCRAG1AAA: Turbine control relay output board; drives relay outputs for discrete actuator and trip circuit control.
DS200TCQCG1BFE: Quad contact input board; reads dry-contact discrete inputs from field devices and limit switches.
DS200TCEAG1BFE: Turbine control excitation analog board; interfaces with generator excitation systems for voltage regulation feedback.
DS200DTBCG1AAA: Discrete terminal board; provides screw-terminal field wiring interface for discrete I/O modules.
DS200ATBAG1A: Analog terminal board; provides screw-terminal field wiring interface for analog signal modules.
DS200EXPSG1AFA: Expansion power supply board; supplements rack power distribution for high-density I/O configurations.
DS200PCAAG1A: Power converter and analog board; conditions and distributes DC power rails within the Mark V rack.
DS200GDDAG1AEB: Gate drive and diagnostic board; controls IGBT/SCR gate firing sequences for excitation or static starter applications.
DS200IOCAG1ABB: I/O controller adapter board; manages communication between the processor and I/O rack modules.
DS200SLCCG1AFG: Sequence logic control card; executes ladder-logic and sequential function chart programs for auxiliary systems.
DS200TCCAG1BFE: Turbine control communication adapter; handles serial and parallel data exchange between Mark V racks.
DS200FCGDG1BFB: Flame and combustion gas detection interface board; processes UV/IR flame detector signals for combustion monitoring.
DS200DSPXG1ADB: Digital signal processor expansion board; provides additional computational resources for complex control algorithms.
DS200NATAG1A: Network adapter terminal assembly; interfaces the Mark V communication bus with plant-level DCS or historian networks.

Quality Control for the DS200 Range

DS200 boards present specific test challenges due to their multi-layer backplane bus architecture, mixed analog/digital signal paths, and reliance on proprietary GE ASICs that cannot be sourced independently. DriveKNMS applies a structured test protocol for each DS200 module: (1) Visual inspection under 10× magnification for solder joint integrity, capacitor ESR degradation, and conformal coating condition; (2) In-circuit test (ICT) using bed-of-nails fixtures mapped to DS200 board layouts; (3) Functional test on a live Mark V rack simulator replicating the target turbine's I/O configuration; (4) 48-hour burn-in at elevated ambient temperature (50°C) to screen for latent component failures; (5) Final calibration verification against GE GEH-6195 and GEI-100679 technical reference documents. Boards that fail any stage are quarantined and flagged for component-level repair before re-test. No DS200 module is shipped without a passed functional test record.
