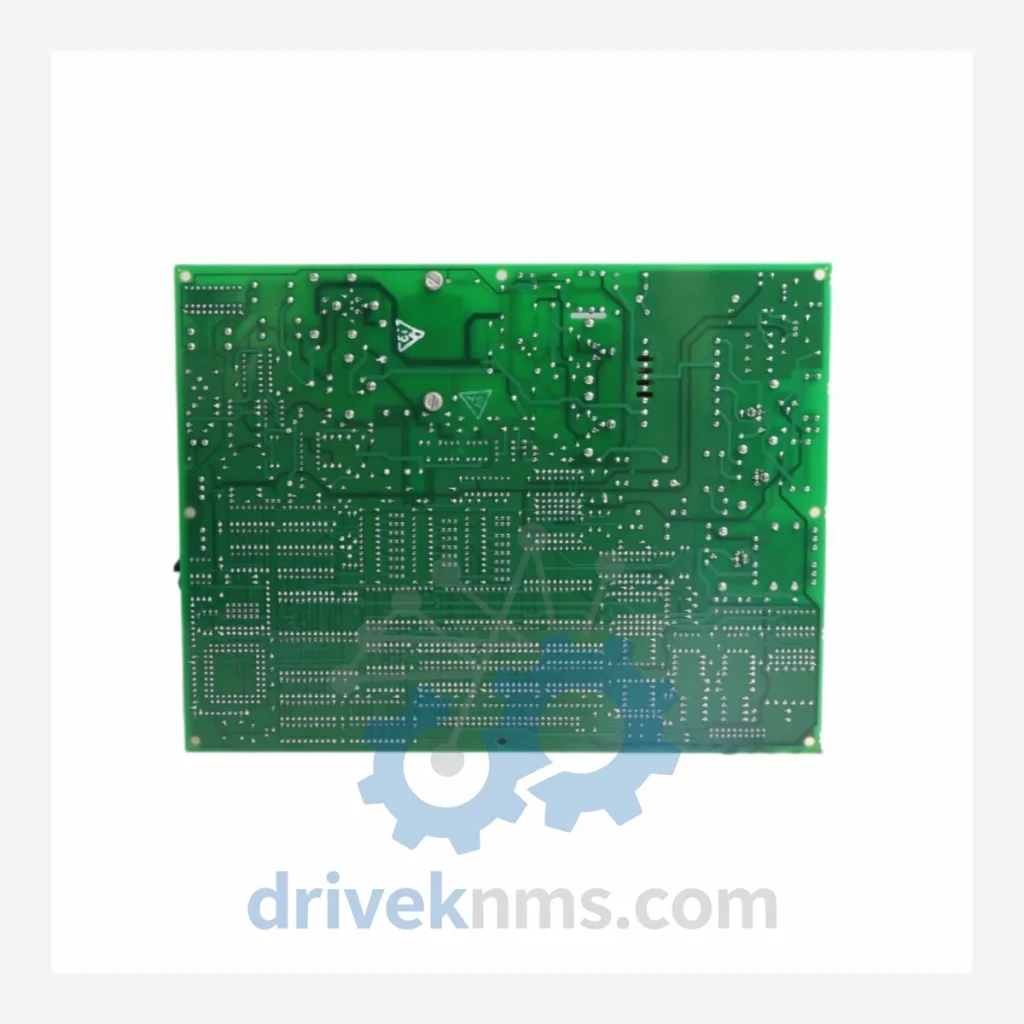

GE Mark VI DS200TCCAF1ADD Analog I/O Board

Name: GE Mark VI DS200TCCAF1ADD Analog I/O Board
Brand: General Electric

Model: DS200TCCAF1ADD

Brand General Electric

Series Mark VI

Model DS200TCCAF1ADD

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

GE Mark VI Series Technical Notes

The GE Mark VI Turbine Control System is one of the most widely deployed distributed control platforms in global heavy industry. Installed across gas turbine power plants, combined-cycle facilities, petrochemical refineries, offshore platforms, and nuclear auxiliary systems, the Mark VI architecture represents GE's third-generation digital turbine control platform, succeeding the Mark V and preceding the Mark VIe. The DS200TCCAF1ADD is a core Analog I/O Board within this ecosystem, responsible for conditioning and routing analog process signals between field instrumentation and the Mark VI controller backplane.

Mark VI systems remain operational in thousands of installations worldwide, many of which are committed to long-term maintenance cycles extending beyond 2035. The installed base in regions including North America, the Middle East, Southeast Asia, and Eastern Europe creates sustained demand for both active and end-of-life spare parts.

The Evolution of Mark VI Architecture

GE's turbine control lineage progressed through clearly defined generations: Mark I (relay-based, 1960s), Mark II (analog electronic, 1970s), Mark IV (early digital, 1980s), Mark V (fully digital, VME-bus architecture, 1991–2003), and Mark VI (dual-redundant, ARCNET/IONet communication, 1995–2012). The Mark VI introduced the VCMI (VME Communication Module Interface) and separated I/O processing from the core controller, enabling modular field replacement without full system shutdown.

The DS200-prefix boards (including DS200TCCAF1ADD) are the primary I/O and signal conditioning layer of the Mark VI. These boards interface directly with thermocouples, RTDs, 4–20 mA transmitters, and discrete contact inputs. Compatibility between Mark VI and Mark VIe is limited: Mark VIe uses an Ethernet-based I/O network (IONet) and IS200-prefix boards, which are not backward-compatible with DS200-series hardware without gateway modules.

As of 2026, the Mark VI is classified as a mature/end-of-life platform by GE Vernova. No new Mark VI systems are being commissioned. All procurement is maintenance-driven, making third-party spare parts suppliers a critical component of lifecycle management for plant operators.

Mark VI Full Catalog & Functionalities (SKU List)

Analog I/O & Signal Conditioning

DS200TCCAF1ADD: Analog I/O board; thermocouple/RTD/mA input conditioning for Mark VI turbine control.
DS200TCQAG1BHF: Thermocouple input board; 16-channel cold junction compensated TC acquisition module.
DS200TCRAG1AAA: Analog input board; high-density RTD signal processing for temperature loops.
DS200TCCAG1AAA: Analog I/O board; multi-range signal conditioning, alternate revision to TCCAF1ADD.
DS200DSPCH1ADA: Digital signal processor board; handles analog loop calculations and PID execution.

Digital I/O Modules

DS200SDCIG2AGB: DC input board; 24 VDC discrete contact input acquisition, 32-channel.
DS200SDCIG1AFB: DC input board; earlier revision, compatible with Mark VI VCMI backplane.
DS200SDOAG1AEB: DC output board; relay-driven discrete output module, 16-channel.
DS200SLCCG3ADB: Contact input board; dry contact and wet contact dual-mode acquisition.

CPU & Controller Modules

DS200VCMIG2AEB: VME Communication Module Interface; primary controller board, manages IONet and ARCNET.
DS200VCMIG2AFB: VCMI board, revision F; enhanced memory and communication throughput variant.
DS200VPBLG1AEE: VME power backplane board; distributes regulated DC power across Mark VI card cage.

Communication & Network Adapters

DS200IIBDG1ADB: Inter-board communication module; manages ARCNET token-ring data exchange between I/O boards.
DS200EXPSG1ADA: Expansion serial board; provides additional RS-232/RS-485 ports for HMI and historian links.
DS200TCDAG1AAA: Communication adapter board; bridges Mark VI I/O bus to external MODBUS RTU devices.

Power Supply Modules

DS200PSDAG1AEB: Power supply distribution board; 125 VDC to regulated 5 VDC/24 VDC conversion for card cage.
DS200PSMAG1AEB: Main power supply module; primary DC bus regulator for Mark VI enclosure.

Sourcing Hard-to-Find & Obsolete Mark VI Parts

All obsolete and end-of-life Mark VI modules are cataloged with revision-level specificity. When ordering, specifying the full part number including revision suffix (e.g., DS200TCCAF1ADD) is required to ensure backplane and firmware compatibility.

Quality Control for the Mark VI Range

Mark VI analog I/O boards such as the DS200TCCAF1ADD present specific test challenges due to their multi-channel signal conditioning architecture and direct backplane bus interface. DriveKNMS applies the following test protocol to all Mark VI boards prior to shipment:
