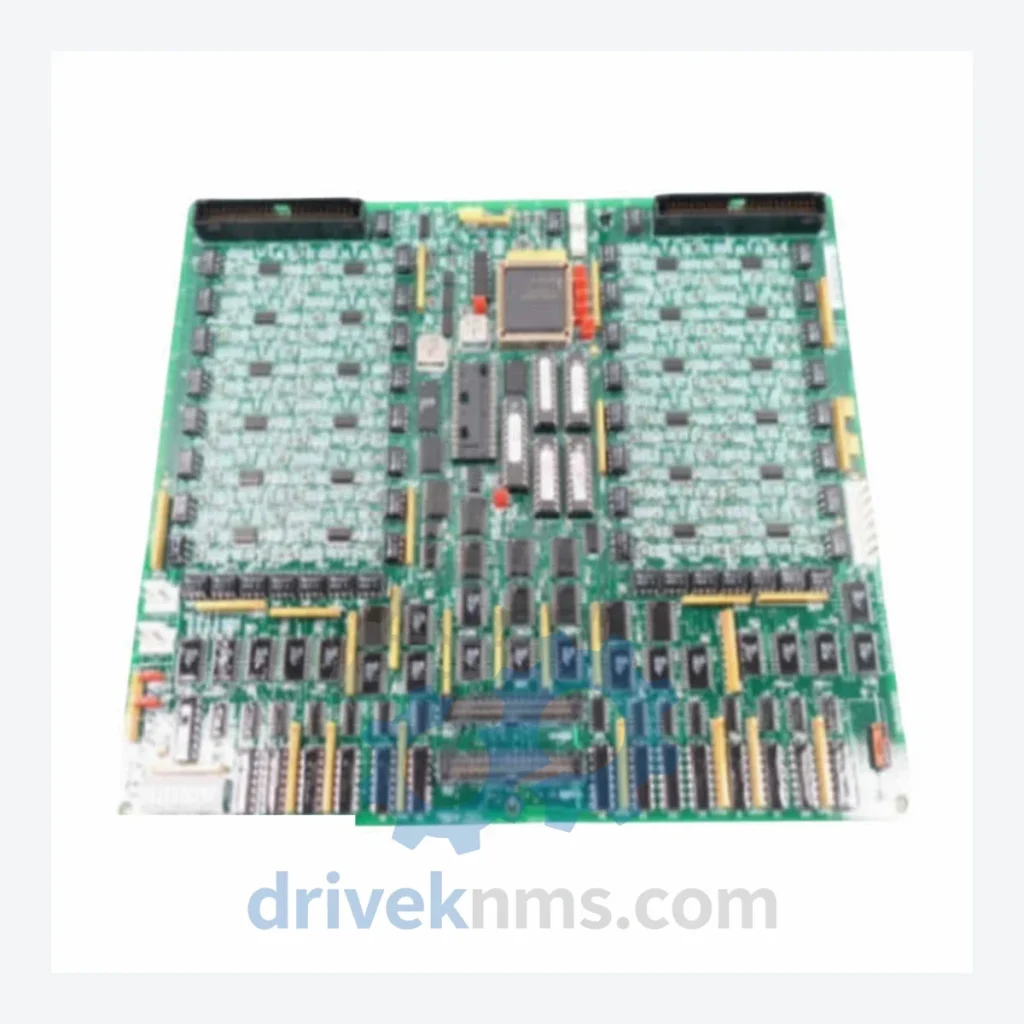

GE DS200 Series Modules – DS200TCDA-HBHD

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The GE DS200 series represents the core I/O, control, and communication hardware platform deployed within GE's Mark VI and Mark VIe Turbine Control Systems. These systems govern gas turbines, steam turbines, and combined-cycle power generation units across refineries, petrochemical complexes, nuclear auxiliary systems, and offshore platforms worldwide. The DS200 hardware backbone is installed in tens of thousands of turbine control cabinets globally, making it one of the most widely referenced spare parts families in heavy industrial automation. Its modular architecture — built around a VME-style backplane with deterministic real-time communication — has made it the reference standard for turbine governor and protection logic from the mid-1990s through the present day.

The Evolution of DS200 Architecture

The DS200 platform was introduced as part of GE's Mark VI Turbine Control System in the mid-1990s, replacing the earlier Mark IV and Mark V relay-logic and analog control architectures. The original Mark VI used a triple-redundant (TMR) or simplex control topology, with DS200 modules communicating over the IONet serial backplane. Each module slot is addressed via a physical rack position, and inter-module communication is governed by the IONET protocol — a deterministic, time-division multiplexed bus proprietary to GE Energy.

With the introduction of the Mark VIe platform (circa 2005–2010), GE transitioned to an Ethernet-based I/O network (IONet over 100BASE-TX), while retaining backward-compatible DS200 form-factor modules in many rack positions. This created a dual-generation compatibility challenge: DS200 modules manufactured for Mark VI simplex racks are not always interchangeable with Mark VIe TMR configurations without firmware and jumper verification. Engineers sourcing replacement DS200 boards must confirm the target system's Mark VI vs. Mark VIe designation, the rack slot address, and the firmware revision level before installation.

By 2015, GE had formally classified the majority of the original Mark VI DS200 module lineup as mature or end-of-active-development, with spare parts support transitioning to third-party MRO suppliers. The Mark VIe platform continues active development, but the DS200 physical form factor remains in service across legacy installations with operational lifespans extending to 2035 and beyond in many baseload power facilities.

DS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the GE DS200 series. Each entry reflects the module's primary functional role within the Mark VI / Mark VIe control architecture.

DS200TCDA-HBHD: Turbine control I/O terminal board; interfaces field wiring to the TCDA I/O pack in Mark VI simplex and TMR racks.
DS200TCQAG1B: Turbine control quad analog input board; processes 4-channel 4–20 mA or 0–10 V field signals for process variable monitoring.
DS200TCEAG1B: Turbine control excitation analog board; manages generator excitation feedback signals in AVR-integrated control loops.
DS200TCPSG1A: Turbine control power supply board; provides regulated DC rail voltages to the DS200 backplane and downstream I/O modules.
DS200TCRAG1A: Turbine control relay output board; drives 24 VDC discrete relay outputs for trip, alarm, and permissive logic.
DS200TCDAH1BHD: Turbine control terminal board variant; alternate hardware revision of the TCDA family with updated conformal coating specification.
DS200SDCIG2A: Speed/position DC input board; processes magnetic pickup (MPU) and proximity probe signals for turbine shaft speed measurement.
DS200SLCCG3A: Simplex LAN communication controller; manages IONet communication between the Mark VI controller and DS200 I/O racks.
DS200DSPCH1A: Digital signal processor control board; executes closed-loop PID and governor control algorithms in the Mark VI simplex controller.
DS200EXPSG1ADA: Expansion power supply board; extends DC power distribution to secondary DS200 I/O expansion racks.
DS200IOCAG1A: I/O controller adapter board; bridges the IONet backplane to the Mark VI main controller module in simplex configurations.
DS200TBCIH1C: Terminal board for current inputs; provides field-side termination for 4–20 mA current loop sensors in process measurement applications.
DS200TBAIH1BFB: Terminal board for analog inputs; 16-channel analog input termination board for thermocouple and RTD field wiring.
DS200TBQCG1A: Terminal board quad contact input; provides dry-contact discrete input termination for limit switches and position feedback devices.
DS200TCDAG1A: Turbine control digital-to-analog board; generates 4–20 mA analog output signals for valve positioner and actuator control.
DS200TCCAG1A: Turbine control contact input board; processes 24/125 VDC discrete contact inputs for protection and sequencing logic.
DS200TCDAG1BHD: Heavy-duty variant of the TCDAG1A; rated for extended temperature and humidity environments in tropical or coastal installations.

Quality Control for the DS200 Range

DS200 modules present specific test challenges due to their backplane-dependent communication architecture. A DS200 board cannot be fully validated in isolation — functional verification requires replication of the IONet backplane environment, correct slot addressing, and live communication with a Mark VI or Mark VIe controller node.
