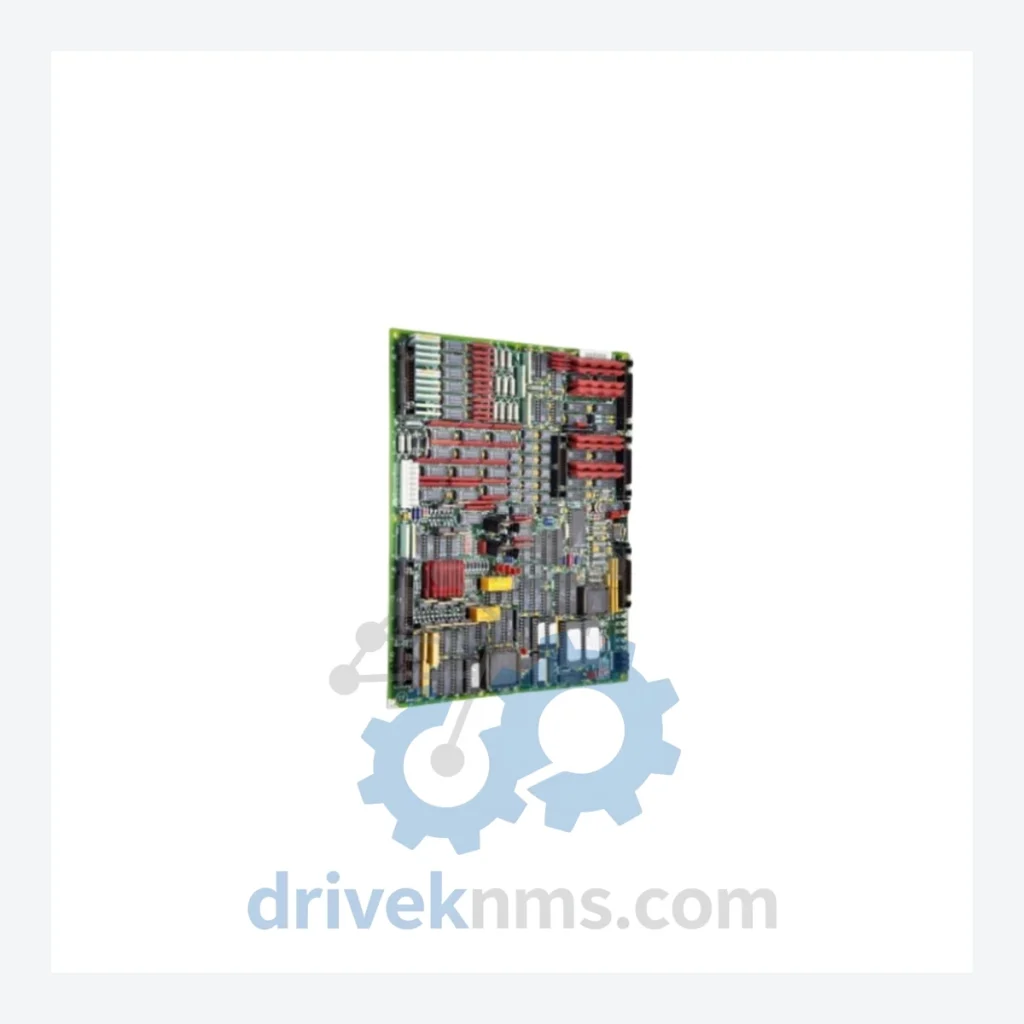

GE DS200 Modules: DS200TCQBG1BBC RST Overflow Board

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The installed base of DS200-based Mark VI systems spans multiple decades of continuous operation. Many units commissioned in the late 1990s and 2000s remain in active service, creating sustained demand for original replacement boards, tested spares, and lifecycle extension support.

The Evolution of DS200 Architecture

The DS200 module family was introduced as the hardware substrate for GE's Mark VI Turbine Control System, which succeeded the Mark V platform in the mid-1990s. Mark VI represented a shift from relay-based and early digital logic to a fully distributed, VME-bus-inspired modular architecture with triple-redundant (TMR) voting capability on critical control paths.

Early Generation (1995–2002): Initial DS200 boards used through-hole and early surface-mount components. Communication relied on the IONet (Ethernet-based proprietary protocol) and the ARCNET-based IONet for I/O marshalling. Boards such as the DS200TCQBG1B and DS200SDCIG2A established the baseline for analog and digital I/O marshalling.

Mid Generation (2002–2010): Revised board revisions introduced improved FPGA logic, enhanced EMI shielding, and updated connector standards. The DS200TCQBG1BBC (this listing) belongs to this generation, serving as the RST Overflow interface board within the TCQB assembly group — responsible for routing overflow signals from the RST (Rotor Speed and Temperature) processing chain.

Late / Transition Generation (2010–present): GE introduced the Mark VIe platform, which uses a different hardware family (IS200 series) with Ethernet-native I/O and updated form factors. DS200 boards are not directly interchangeable with IS200 equivalents. Sites running Mark VI must source DS200-specific replacements; cross-platform substitution requires full engineering review and is not field-interchangeable.

Compatibility note: DS200 boards are revision-sensitive. The suffix characters (e.g., G1B, G1BBC) denote hardware revision levels. Substituting a different revision may require firmware alignment and GE engineering approval. DriveKNMS maintains revision-level records for all stocked DS200 modules.

DS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the GE DS200 series. Each entry reflects the module's primary functional role within the Mark VI control architecture.

DS200TCQBG1BBC: RST Overflow Board — routes overflow signals in the Rotor Speed & Temperature chain within the TCQB assembly.
DS200TCQAG1B: TCQA Analog I/O Board — processes analog input/output signals for turbine control sequencing.
DS200SDCIG2A: DC Power Supply Interface Board — conditions and distributes DC bus power to downstream I/O modules.
DS200TCDAG1A: Turbine Control Discrete Analog Board — handles mixed discrete and analog signal marshalling for Mark VI I/O packs.
DS200TCEAG1A: Turbine Control Excitation Analog Board — interfaces with generator excitation systems for voltage regulation feedback.
DS200TCPSG1A: Turbine Control Power Supply Board — provides regulated power rails to the TCPS module group.
DS200TCQCG1B: TCQC Overflow Interface Board — secondary overflow routing board within the TCQB/TCQC assembly stack.
DS200DSPCH1A: Digital Signal Processor Communication Board — manages high-speed DSP-to-controller communication within the Mark VI chassis.
DS200IOCAG1A: I/O Controller Adapter Board — bridges the IONet communication bus to local I/O module groups.
DS200SLCCG3A: Serial Link Communication Controller — provides RS-422/RS-485 serial communication for legacy device integration.
DS200TCRAG1A: Turbine Control Relay Analog Board — drives relay output circuits for trip and alarm functions.
DS200TCTSG1A: Turbine Control Temperature Sensing Board — conditions thermocouple and RTD inputs for exhaust and bearing temperature monitoring.
DS200GDDAG1AEB: Gate Drive Diagnostic Board — monitors IGBT gate drive signals in excitation converter assemblies.
DS200EXPSG1ADA: Expansion Power Supply Board — extends DC power distribution capacity in high-density I/O configurations.
DS200TCQEG1B: TCQE Overflow Extension Board — provides additional overflow signal capacity for large RST channel counts.
DS200UPSAG1A: Uninterruptible Power Supply Interface Board — interfaces the Mark VI controller with UPS systems for ride-through during grid disturbances.

Sourcing Hard-to-Find & Obsolete DS200 Parts

For sites operating Mark VI systems under long-term service agreements or independent maintenance programs, DriveKNMS provides: revision-matched board sourcing, cross-reference verification against GE engineering change notices, and multi-unit lot procurement for planned maintenance outages. Inquiries for obsolete or low-availability DS200 part numbers are handled directly by technical staff — not automated systems.

Quality Control for the DS200 Range

DS200 boards present specific test challenges due to their multi-layer PCB construction, proprietary FPGA firmware, and backplane-dependent signal routing. Standard bench power-up testing is insufficient to validate functional integrity of boards that rely on backplane communication for initialization.

DriveKNMS applies the following test protocol to DS200 modules:
