GE DS200 Turbine Control Modules: DS215TCDAG1BZZ01A / DS200TCDAG1BDB

Technical Dossier

Product Details And Specifications

GE DS200 Series Technical Notes

The GE DS200 series represents the core I/O and control board architecture of the GE Mark V Turbine Control System — one of the most widely deployed distributed control platforms in global heavy industry. Installed across gas turbine power plants, combined-cycle facilities, petrochemical refineries, nuclear auxiliary systems, and offshore platforms, the Mark V / DS200 ecosystem has maintained a dominant installed base since its commercial introduction in the late 1980s. The DS200 board family handles all critical functions: analog and digital I/O acquisition, turbine sequencing logic, inter-processor communication, and protective relay interfacing. Facilities operating GE Frame 5, Frame 6, Frame 7, and Frame 9 gas turbines — including those running on GE's EX2000 and LCI excitation systems — rely on DS200 modules as the primary hardware layer between field instrumentation and the Mark V processor cores.

The Evolution of DS200 Architecture

The DS200 board family was introduced alongside the GE Mark V Turbine Control System, which superseded the earlier Mark IV platform beginning in 1987. The Mark V architecture centralized turbine protection, sequencing, and HMI functions into a triple-redundant processor arrangement (TCCA, TCDA, TCQA cores) communicating over a proprietary backplane bus. DS200 boards were designed as the peripheral I/O layer for this architecture, with each board type assigned a fixed functional role within the Mark V panel.

Through the 1990s and early 2000s, GE released incremental hardware revisions to the DS200 family — primarily to address component obsolescence, improve EMI tolerance, and extend operating temperature ranges for tropical and desert installations. The DS215 sub-series (e.g., DS215TCDAG1BZZ01A) represents a later hardware revision of the original DS200 boards, maintaining full firmware and backplane compatibility while incorporating updated ASIC and passive component specifications.

By the mid-2000s, GE began transitioning new turbine installations to the Mark VI and subsequently Mark VIe platforms, which use a different I/O module architecture (IS200 series, DIN-rail mounted, EtherNet/IP backbone). However, the installed base of Mark V systems remains substantial globally, and GE (now Baker Hughes / GE Vernova) continues to support the DS200 ecosystem through its parts and service division. Many operators have extended Mark V system life by 15–25 years beyond original design intent, creating sustained demand for DS200 spare boards in both new and refurbished condition.

DS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked components within the GE DS200 / DS215 Mark V Turbine Control board family, organized by functional category:

Turbine Control & Processor Boards

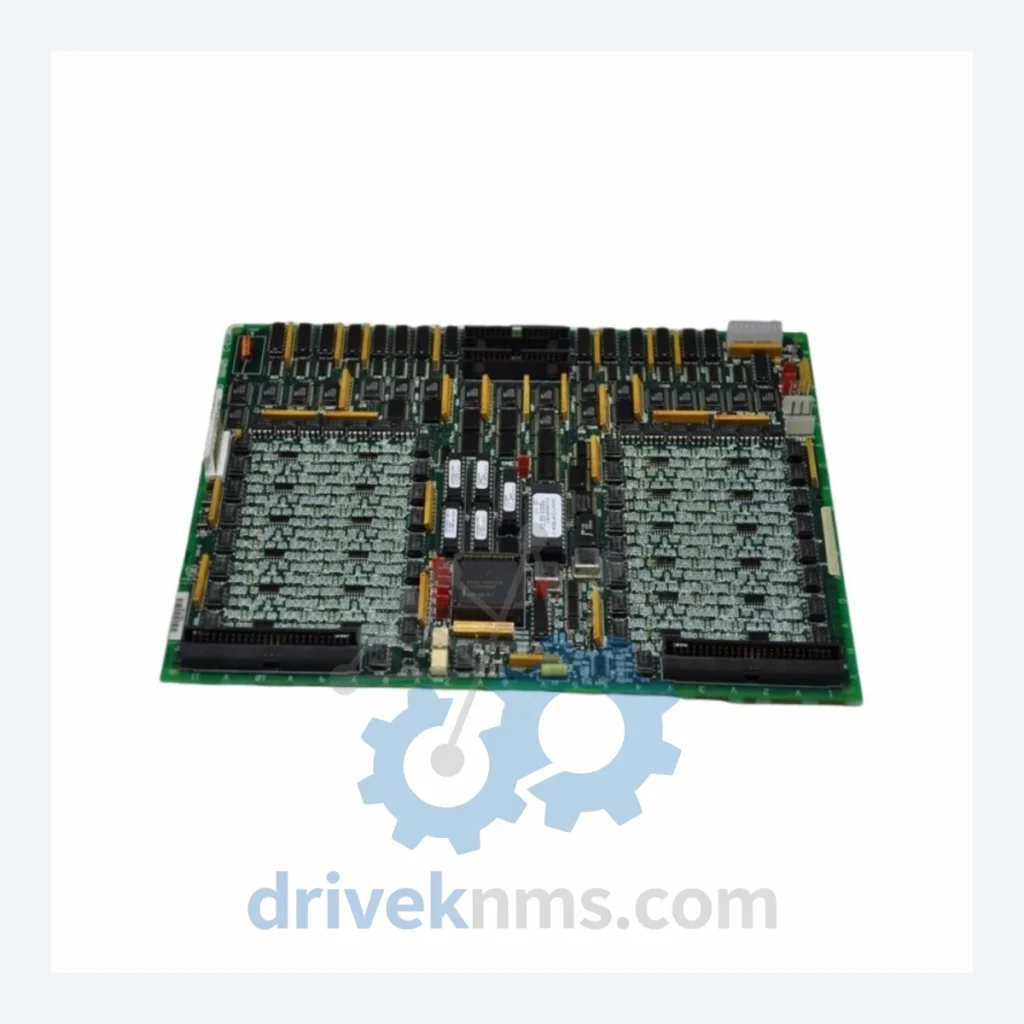

DS200TCDAG1BDB: Turbine Control DA board; analog I/O acquisition for Mark V core
DS215TCDAG1BZZ01A: Revised hardware variant of DS200TCDAG1BDB; direct backplane replacement
DS200TCQAG1BHF: Turbine Control QA board; third redundant processor I/O interface
DS200TCCAG1BAA: Turbine Control CA board; primary processor I/O and sequencing interface
DS200TCQBG1BHF: QA board variant with extended analog channel count
DS200TCDAH1BHF: DA board high-temperature variant for tropical/desert installations

Digital Input / Output Modules

DS200DIDAG1ADB: Digital input board; 24 VDC discrete input acquisition, 32-channel
DS200DOEAG1ADB: Digital output board; relay-driven discrete outputs, 16-channel
DS200DSPAG1ADB: Digital signal processor board; high-speed pulse and frequency input
DS200DTBAG1AAA: Digital terminal board; field wiring interface for DI/DO modules

Analog Input / Output Modules

DS200AIDAG1ADB: Analog input board; 4–20 mA and thermocouple inputs, 16-channel
DS200AOEAG1ADB: Analog output board; 4–20 mA current loop outputs, 8-channel
DS200ATBAG1AAA: Analog terminal board; field wiring interface for AI/AO modules

Communication & Backplane Modules

DS200SLCCG1ADB: Serial link communication board; Modbus RTU and proprietary Mark V bus
DS200EXPSG1ADB: Expansion power supply board; auxiliary 5 VDC / 24 VDC rail for I/O expansion chassis
DS200SDCCG1ADB: Speed and direction control communication board; interface for LCI/EX2000 systems

Sourcing Hard-to-Find & Obsolete DS200 Parts

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Quality Control for the DS200 Range

DS200 boards present specific test challenges due to their proprietary backplane bus protocol and multi-layer PCB construction. DriveKNMS applies the following verification procedures to all DS200 / DS215 units prior to shipment:
