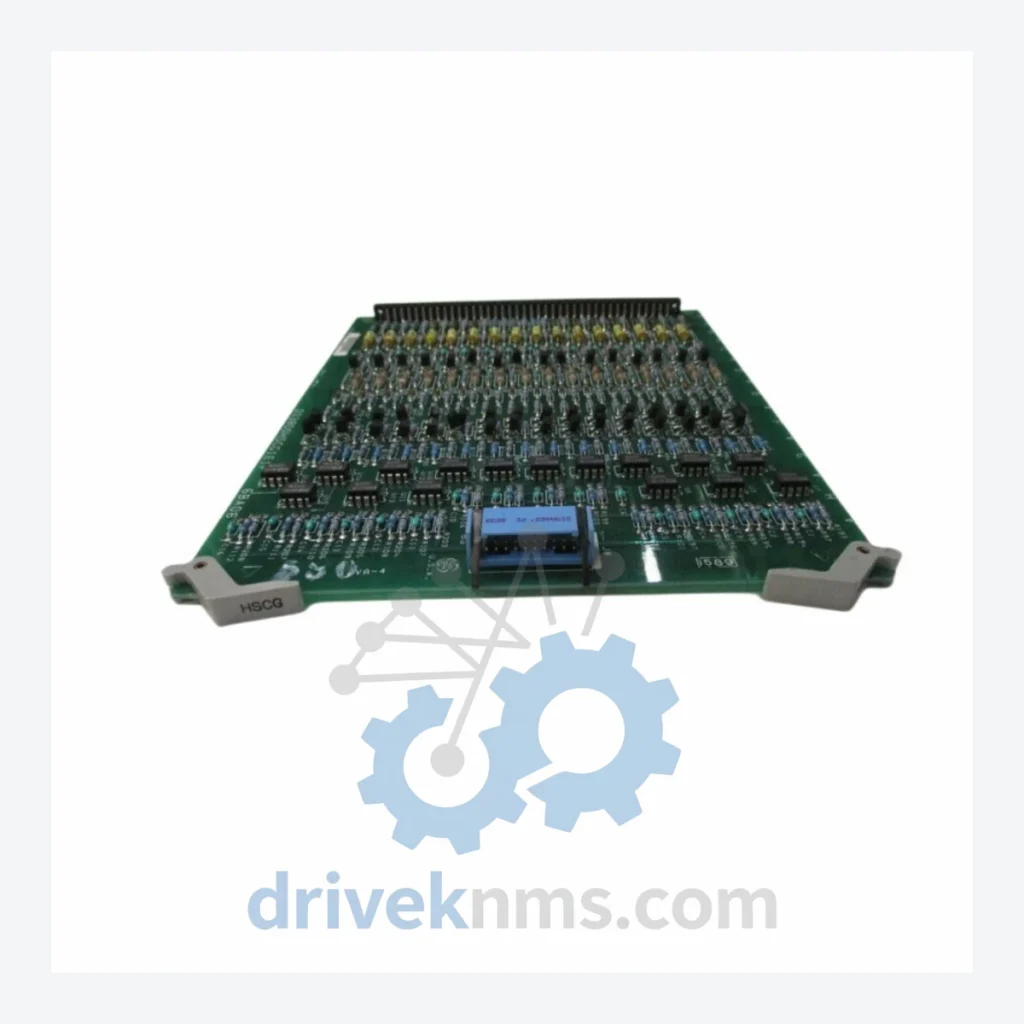

GE DS3800HSCG1E1F Isolator Board – Obsolete Mark IV Spare Part

When a turbine control system goes down, the clock starts immediately. A single failed isolator board in a GE Mark IV Speedtronic panel does not just halt one machine — it can shut down an entire power generation unit or compressor train. Sourcing a replacement through OEM channels for a discontinued platform is, in most cases, no longer possible. The engineering cost of migrating a Mark IV installation to a current-generation control architecture routinely exceeds USD 2–5 million per unit, factoring in hardware, software re-engineering, loop re-commissioning, and lost production during the transition window. The DS3800HSCG1E1F held in DriveKNMS inventory represents a direct, low-cost alternative to that scenario.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as voltage ratings and signal ranges are board-configuration-dependent. Confirmed specifications are provided upon request with supporting documentation.

Solving the Discontinued Hardware Crisis

The GE Mark IV Speedtronic platform was the backbone of gas turbine and steam turbine control across power utilities, oil & gas facilities, and industrial plants from the 1980s through the early 2000s. GE has long since migrated its support focus to the Mark V, Mark VI, and Mark VIe generations. For facilities still operating Mark IV panels, that transition in OEM support created a structural supply gap that grows more acute each year.

The DS3800HSCG1E1F isolator board sits at a critical junction in the Mark IV I/O architecture. It provides galvanic isolation between field instrumentation signals and the control processor backplane — a function that cannot be bypassed or emulated without a full system redesign. When this board fails, the control system loses the ability to read or transmit isolated analog signals reliably, which in turbine applications directly affects speed sensing, temperature monitoring, and protective trip logic.

Facilities that have maintained a strategic inventory of DS3800-series boards have consistently avoided unplanned outages that, in power generation contexts, carry costs measured in tens of thousands of dollars per hour. Those that have not are forced into emergency sourcing at premium prices — or, worse, into premature capital expenditure on system upgrades that the operational budget was not structured to absorb.

Extending the operational life of a Mark IV installation by 5 to 10 years through targeted spare parts management is not a workaround. It is a documented asset management strategy. The capital cost of a controlled, planned migration — executed on the facility's own schedule — is substantially lower than a forced upgrade driven by an unplanned failure. A single DS3800HSCG1E1F board, properly sourced and verified, can be the difference between those two outcomes.

Condition & Reliability Assurance

Sourcing obsolete boards from the secondary market carries legitimate risk. DriveKNMS applies a structured 5-step qualification process to every DS3800-series unit before it is offered for sale:

• Step 1 – Visual and Physical Inspection: Full board examination for mechanical damage, burn marks, cracked solder joints, and corrosion on connector pins and edge contacts.
• Step 2 – Electrolytic Capacitor Assessment: Boards of this age are subject to electrolytic capacitor degradation. Each unit is inspected for capacitor bulging, leakage, and ESR deviation. Boards with compromised capacitors are either recapped or removed from inventory.
• Step 3 – Firmware and Configuration Verification: Where applicable, onboard firmware version and DIP switch / jumper configuration are documented and matched against the customer's system revision requirements prior to shipment.
• Step 4 – Functional Power-On Test: Units are powered and tested for basic operational response under controlled bench conditions.
• Step 5 – Final Documentation: Each unit ships with a condition report. Traceability records are retained for post-sale reference.

Key Features for System Maintenance

Q: How do I know the unit is genuine and not a counterfeit?
A: All DS3800-series boards in our inventory are sourced from decommissioned OEM installations or verified surplus channels. Physical markings, board revision codes, and component layouts are cross-referenced against known-good reference units. Counterfeit screening is part of our Step 1 inspection protocol.

Q: Should I buy more than one unit?
A: For any facility operating a Mark IV system without a current replacement path, holding a minimum of one spare DS3800HSCG1E1F is a standard risk mitigation measure. Given declining global availability of this part, procurement teams managing multi-unit installations are advised to secure spares now rather than at the point of failure.

Q: Can this board be used across different Mark IV panel configurations?
A: The DS3800HSCG1E1F is a specific revision of the HSCG isolator board family. Compatibility with a specific panel slot should be confirmed against the panel's wiring diagram and board revision list before installation. DriveKNMS technical staff can assist with compatibility verification upon request.
