GE DS3800 Series Modules: DS3800NPSE1E1G,

Technical Dossier

Product Details And Specifications

GE DS3800 Series Technical Notes

The GE DS3800 series — the hardware backbone of the GE Mark IV turbine control system — has been installed across thousands of heavy industrial sites worldwide, including gas turbine power plants, combined-cycle facilities, petrochemical complexes, and offshore platforms. Introduced in the early 1980s as the successor to the Mark II and Mark III architectures, the Mark IV system represented GE's first fully digital, microprocessor-based turbine control platform. The DS3800 board family forms the physical layer of this system: each board occupies a dedicated slot in the Mark IV control panel and performs a discrete, non-redundant function within the overall control loop.

Decades after initial deployment, a substantial installed base of Mark IV systems remains in active service. Operators of these systems face a structural challenge: GE ceased active production of DS3800 series boards, and the transition path to Mark VI or Mark VIe requires capital expenditure that many facilities cannot justify for assets with 10–20 years of remaining operational life. The result is sustained, inelastic demand for DS3800 spare parts — particularly for boards that are single points of failure within the control architecture.

The Evolution of DS3800 Architecture

The DS3800 series was engineered for the Mark IV Speedtronic turbine control panel, a system that replaced relay-based logic with dedicated microprocessor boards organized around a parallel backplane bus. Each board in the DS3800 family communicates over this proprietary bus and is assigned a fixed address within the panel configuration. This architecture, while robust for its era, creates a critical constraint for maintenance engineers: boards are not hot-swappable in the modern sense, and substitution requires exact part number matching to preserve panel addressing and signal conditioning parameters.

Early DS3800 boards used through-hole component construction with discrete logic ICs and linear regulators. Later revisions introduced surface-mount components on select boards, improving thermal performance but complicating repair. The series spans power supply boards, analog input/output boards, digital I/O boards, communication interface boards, and processor cards — each with multiple hardware revisions denoted by suffix characters (e.g., E1E1G, A1B, C1C).

GE's transition to the Mark V (DS200 series) and subsequently Mark VI (IS200 series) introduced VME-based and then Ethernet-based architectures, rendering DS3800 boards incompatible with successor systems at the hardware level. No direct plug-in replacement exists from GE's current catalog. For facilities committed to Mark IV operation, the DS3800 spare parts market is the only viable maintenance path.

DS3800 Full Catalog & Functionalities (SKU List)

The following represents a cross-section of the DS3800 module family, organized by functional category. All models listed are confirmed DS3800 series components used within the GE Mark IV Speedtronic control panel.

Power Supply & Regulation

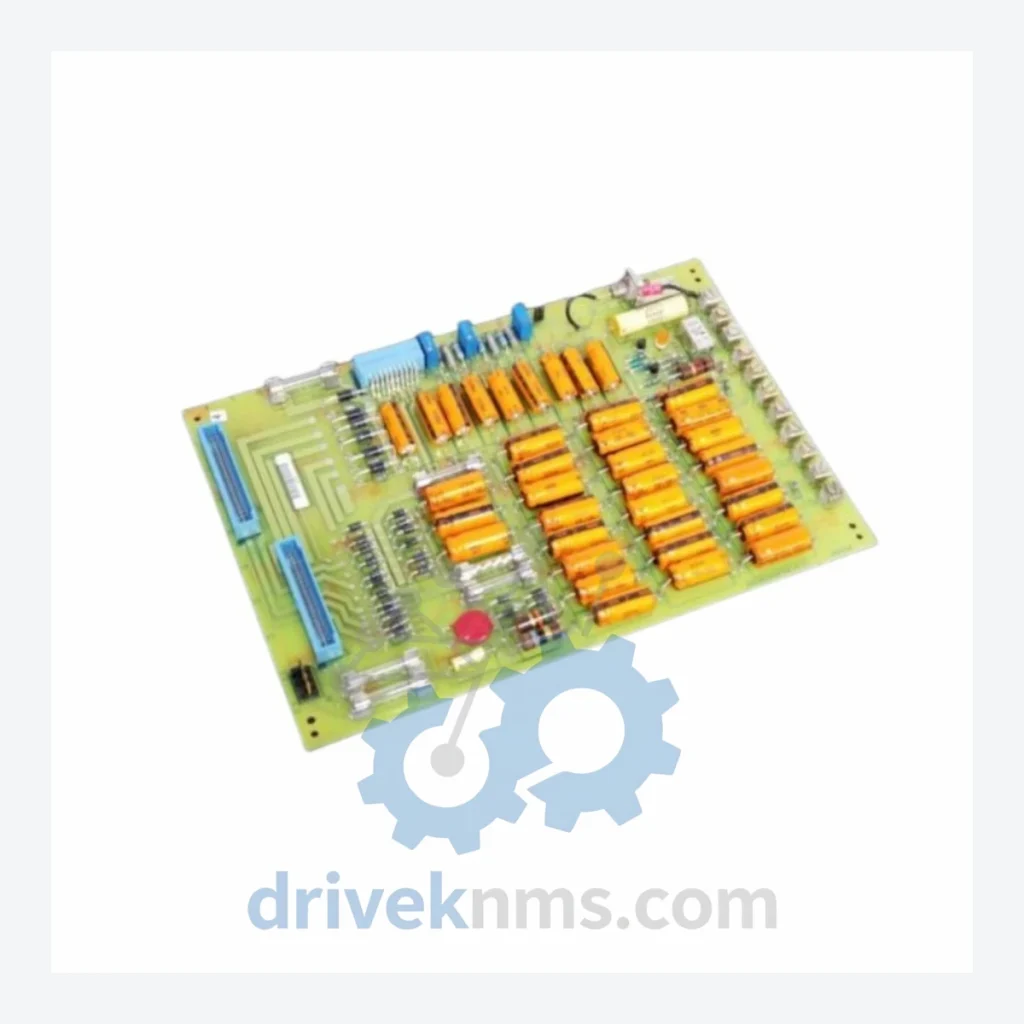

• DS3800NPSE1E1G: Power supply board; regulates and distributes DC voltages to Mark IV panel backplane
• DS3800NPSA1A1A: Power supply board variant; earlier hardware revision for Mark IV panel power distribution
• DS3800HPIB1A1A: High-voltage power interface board; conditions incoming AC supply for panel use

Analog Input (AI) Modules

• DS3800NANA1A1A: Analog input board; processes thermocouple and RTD signals for temperature monitoring
• DS3800NANA1B1B: Analog input board; revised signal conditioning for expanded thermocouple range
• DS3800HANA1A1A: High-density analog input board; multi-channel temperature and pressure signal acquisition
• DS3800NMIX1A1A: Mixed analog input board; handles speed, temperature, and pressure inputs simultaneously

Analog Output (AO) Modules

• DS3800NAOA1A1A: Analog output board; drives 4–20 mA control signals to actuators and positioners
• DS3800HSVC1A1A: Servo amplifier board; provides high-current analog output for hydraulic servo valve control

Digital Input (DI) Modules

• DS3800NDIB1A1A: Digital input board; reads discrete 24 VDC contact closure signals from field devices
• DS3800NDIC1A1A: Digital input board; expanded channel count for high-density discrete signal acquisition

Digital Output (DO) Modules

• DS3800NDOB1A1A: Digital output board; drives relay coils and solenoid valves from Mark IV logic
• DS3800NRPC1A1A: Relay output board; provides isolated contact outputs for alarm and trip circuits

Processor & Control Boards

• DS3800HMPG1A1A: Main processor board; executes Mark IV control algorithms and manages panel I/O bus
• DS3800NMEM1A1A: Memory expansion board; extends program and data storage for the Mark IV processor

Communication & Interface

• DS3800NCSC1A1A: Communication interface board; links Mark IV panel to plant DCS or historian via serial protocol
• DS3800NTBA1A1A: Terminal board assembly; provides field wiring termination points for I/O signal cables

Sourcing Hard-to-Find & Obsolete DS3800 Parts

DriveKNMS maintains sourcing relationships with decommissioning contractors, surplus equipment dealers, and industrial asset recovery firms across North America, Europe, and Asia-Pacific. When a specific DS3800 board is required, our procurement team cross-references active inventory, pending decommission lots, and repair-eligible units to identify the fastest path to fulfillment.

For facilities managing long-term Mark IV operation, DriveKNMS recommends a structured approach to spare parts inventory: identify the three to five boards in your panel configuration that represent single points of failure with no bypass capability, and maintain at minimum one verified spare for each. The cost of holding this inventory is a fraction of the cost of an unplanned outage while sourcing a specific board from the secondary market under time pressure.

Quality Control for the DS3800 Range

DS3800 boards present specific inspection challenges due to their age, construction methods, and the environments in which they have operated. DriveKNMS applies a structured inspection and verification protocol to all DS3800 units prior to shipment:

• Visual and mechanical inspection: Board examined under magnification for cracked solder joints, damaged traces, corroded connector pins, and physical impact damage. Backplane edge connectors cleaned and inspected for pin deformation.
• Electrolytic capacitor assessment: All electrolytic capacitors checked for bulging, leakage, and ESR deviation. Capacitors on power supply boards and analog signal conditioning circuits are the primary failure point in aged DS3800 hardware and are replaced where values fall outside specification.
• Component-level verification: Known failure-prone ICs and voltage regulators tested in-circuit where possible. Boards with socketed ICs inspected for oxidized socket contacts.
• Functional bench test: Where test fixtures are available for specific board types, boards are powered and exercised through their input/output range to verify correct operation prior to shipment.
• Firmware and hardware revision documentation: Hardware revision suffix recorded and communicated to the customer. Customers are advised to verify revision compatibility with their specific panel configuration before installation.
