GE HE693THM809C Thermocouple Input Module – Obsolete Series 90-30 Spare Part

Technical Dossier

Product Details And Specifications

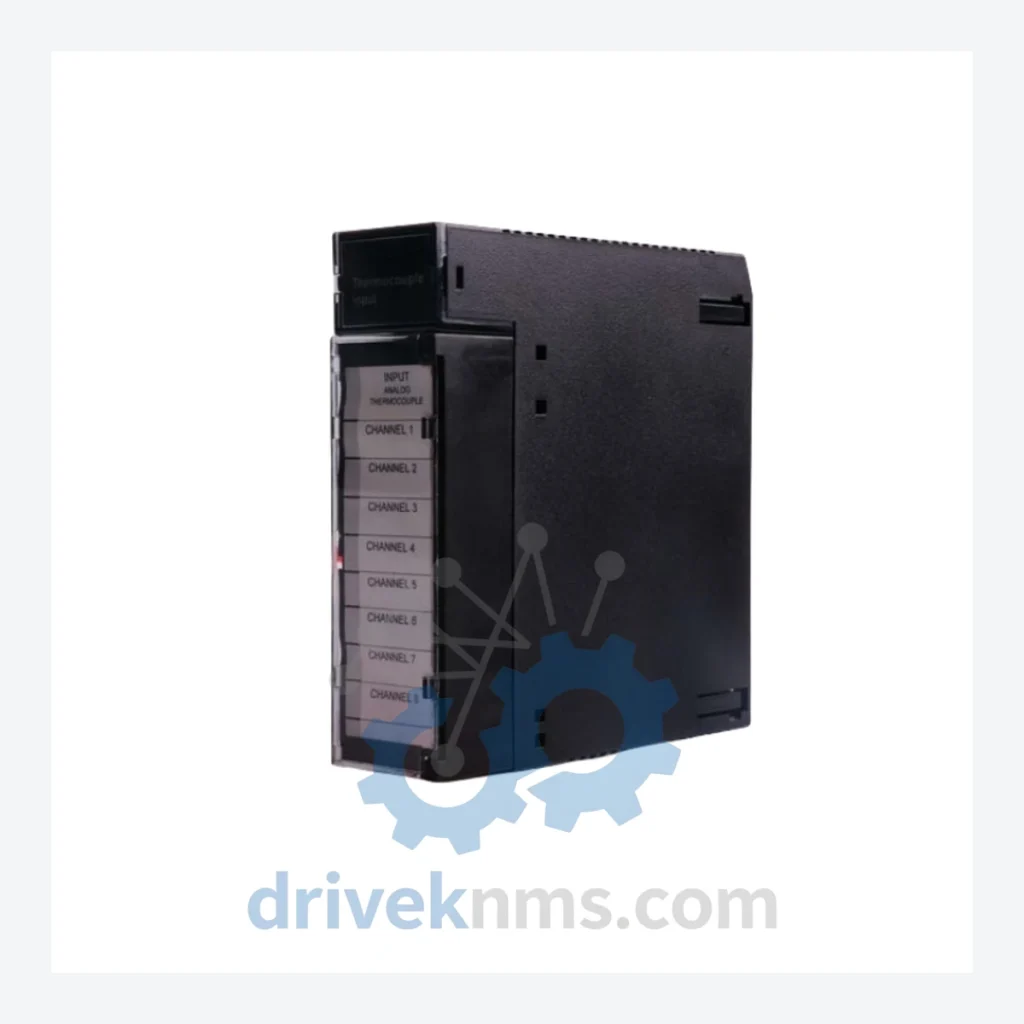

GE HE693THM809C Thermocouple Input Module – Obsolete Series 90-30 Spare Part

When a thermocouple input module fails on a GE Series 90-30 PLC system, the consequences extend far beyond a single card replacement. For plants still operating on this platform, the realistic alternative to sourcing a working HE693THM809C is a full control system migration — a project that routinely costs $500,000 to $2,000,000 USD when engineering, downtime, revalidation, and retraining are factored in. DriveKNMS maintains verified stock of this discontinued module specifically to protect facilities from that forced capital expenditure.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Note: Electrical parameters such as channel count, input range, and resolution are not published here to avoid inaccuracy. Confirmed specifications are provided upon request with the original datasheet.

Solving the Discontinued Hardware Crisis

The GE Series 90-30 platform was the backbone of process automation across petrochemical, food & beverage, automotive, and utilities industries throughout the 1990s and 2000s. The HE693THM809C thermocouple input module served as the thermal sensing interface for furnaces, kilns, reactors, and HVAC systems — applications where temperature measurement accuracy is directly tied to product quality and process safety.

GE Fanuc formally discontinued the Series 90-30 hardware line. Replacement parts are no longer available through OEM channels. For plant managers facing this reality, the options are stark: locate verified surplus stock, or commit to a full system replacement on a compressed timeline driven by the next hardware failure.

Extending the operational life of a Series 90-30 installation by 5 to 10 years through strategic spare parts procurement is not a workaround — it is a defensible capital asset protection strategy. The math is straightforward: a stocked HE693THM809C costs a fraction of one day of unplanned downtime on a production line that depends on it. Facilities that maintain a minimum two-unit buffer for critical I/O modules consistently avoid the emergency procurement cycle that drives up costs and extends repair windows.

The HE693THM809C is not interchangeable with modules from other PLC families. Its slot-based addressing, rack communication protocol, and configuration within the Logicmaster 90 or Proficy Machine Edition software environment are specific to the Series 90-30 architecture. Substituting a different module requires software reconfiguration at minimum, and in validated environments, a full requalification. Sourcing the correct part number eliminates that engineering burden entirely.

Condition & Reliability Assurance

Discontinued modules sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step inspection protocol to every HE693THM809C unit before it is offered for sale:

• Step 1 – Visual Inspection: Board-level examination for physical damage, pin corrosion, solder joint integrity, and connector wear. Units with oxidized or bent I/O pins are rejected.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy modules stored for extended periods. Each unit is evaluated for capacitor bulging, leakage, and ESR deviation.
• Step 3 – Firmware Version Verification: The installed firmware revision is documented and disclosed. Compatibility with the customer’s existing rack configuration is confirmed prior to shipment where possible.
• Step 4 – Functional Power-On Test: Units are powered and tested for basic operational response where test fixtures are available for the platform.
• Step 5 – Packaging & ESD Protection: All modules are shipped in anti-static packaging with desiccant to prevent moisture ingress during transit.

Key Features for System Maintenance

• Drop-in replacement: The HE693THM809C installs directly into an existing Series 90-30 rack slot with no mechanical modification.
• No reprogramming required: Module configuration is stored in the PLC CPU. A replacement unit assumes the same I/O addressing without changes to the application program, provided the firmware revision is compatible.
• Avoids engineering reconstruction costs: Unlike a platform migration, a like-for-like module swap does not require P&ID updates, loop recalibration, or control narrative revisions.
• Minimizes downtime window: With a pre-tested spare on the shelf, mean time to repair is measured in minutes, not days.
• Preserves validated configurations: In regulated industries (pharmaceutical, food processing), maintaining the existing hardware platform avoids triggering a revalidation event.

FAQ

Q: What warranty applies to a discontinued module like the HE693THM809C?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available — contact us to discuss your requirements.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from documented industrial decommissioning projects or authorized surplus channels. Physical markings, board revision codes, and firmware versions are verified and disclosed. We do not source from unverified brokers.

Q: Should I buy more than one unit?
A: For any production-critical application, holding a minimum of two spare units is standard practice for discontinued hardware. Once current stock is depleted, the next available unit may require months to locate. The cost of a second spare is negligible against the cost of an extended production halt.

Q: Can you source other Series 90-30 modules?
A: Yes. DriveKNMS specializes in hard-to-find GE Fanuc Series 90-30 components. Submit your full BOM or parts list and we will advise on availability.

📩 Contact Information

Email: sale@driveknms.com
WhatsApp: +86 18359293191
Web: driveknms.com
© 2026 DriveKNMS. All trademarks belong to their respective owners. Specifications are for reference only and subject to change without notice. Verify all parameters against official documentation before installation.
