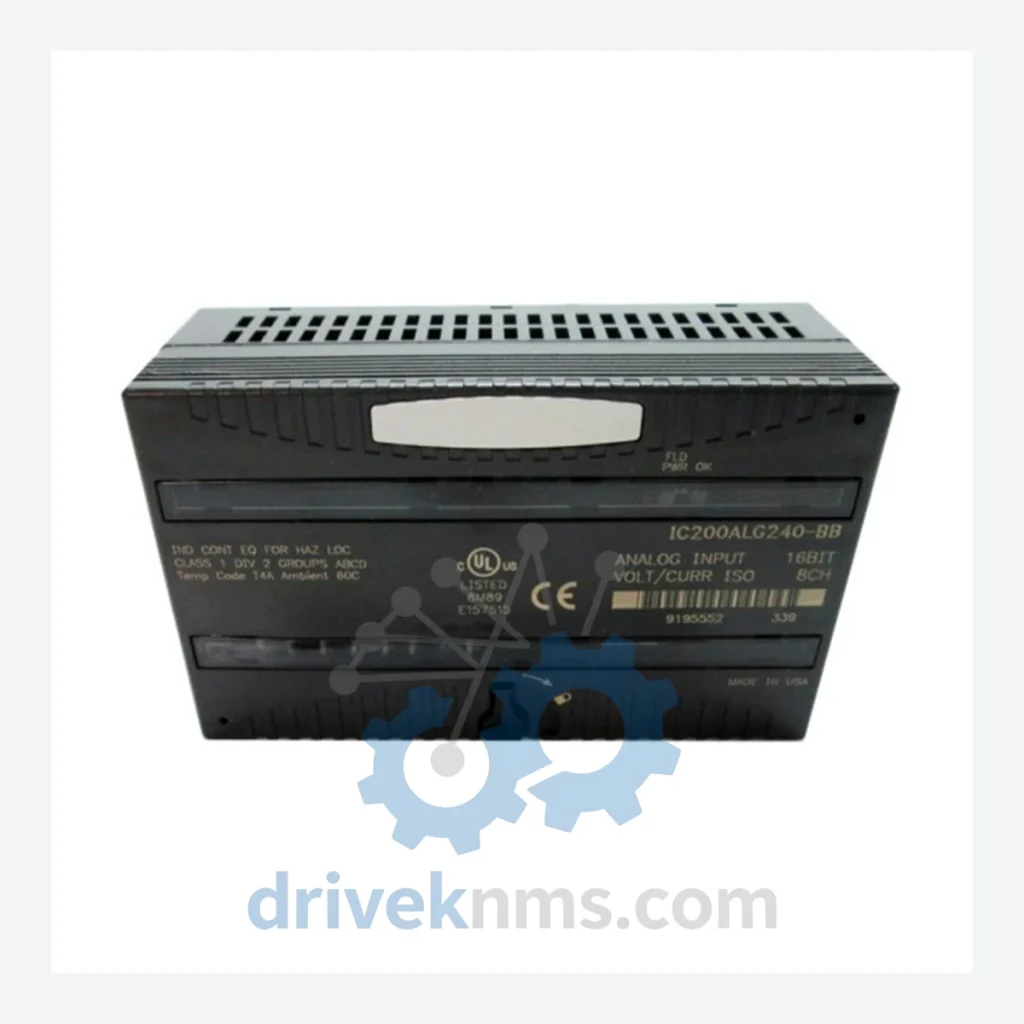

GE VersaMax IC200ALG240 Modules

Technical Dossier

Product Details And Specifications

GE VersaMax IC200 Series Technical Notes

The GE Fanuc VersaMax IC200 series is a modular programmable controller platform deployed across global heavy industry, including petrochemical refineries, nuclear power auxiliary systems, offshore oil & gas platforms, and continuous-process chemical plants. The IC200 backplane architecture supports distributed I/O expansion via the VersaMax Remote I/O system, making it a backbone controller in facilities where uptime requirements exceed 99.9%. The IC200ALG240 specifically addresses high-precision analog signal acquisition in environments where channel-to-channel isolation is mandatory to prevent ground loop interference — a critical requirement in instrumentation loops tied to pressure transmitters, flow meters, and temperature sensors.

The Evolution of IC200 Architecture

The VersaMax IC200 platform was introduced by GE Fanuc Automation in the late 1990s as a successor to the Series 90 Micro PLC line, designed to bridge the gap between compact PLCs and full-scale Series 90-30 rack systems. Early IC200 modules operated on a proprietary backplane bus at 5 VDC logic with RS-485-based remote I/O expansion. Mid-generation revisions introduced enhanced EMI shielding and extended operating temperature ranges (-20°C to +60°C) to meet IEC 61131-2 environmental classifications for industrial enclosures.

By the 2010s, GE Intelligent Platforms (later rebranded under Emerson after the 2018 acquisition) transitioned primary development focus to the RX3i (IC695) platform. The IC200 series entered a mature/end-of-active-development lifecycle, though GE continued to supply spare parts and firmware support. Many facilities running IC200 infrastructure have extended operational commitments of 15–25 years, making aftermarket spare part sourcing a critical supply chain function. Compatibility between IC200 CPU modules (IC200CPUE05, IC200CPUE05-AE) and legacy I/O modules remains intact across the full catalog, provided backplane revision levels are matched.

IC200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the GE VersaMax IC200 series, categorized by functional type:

Analog Input Modules (AI)

IC200ALG240: 8-ch isolated analog input, 16-bit, voltage/current, ±10V / 0–20mA
IC200ALG230: 4-ch analog input, 12-bit, voltage/current, non-isolated
IC200ALG260: 16-ch analog input, 12-bit, current/voltage, high-density
IC200ALG264: 16-ch analog input, 16-bit, current/voltage, high-density precision
IC200ALG320: 4-ch thermocouple/mV input, 16-bit, isolated, J/K/T/E/R/S/B types

Analog Output Modules (AO)

IC200ALG430: 2-ch analog output, 12-bit, voltage/current, 0–10V / 4–20mA
IC200ALG440: 4-ch analog output, 12-bit, voltage/current
IC200ALG620: 2-ch analog I/O combo, 12-bit, voltage/current

Digital Input Modules (DI)

IC200MDL640: 16-ch 24VDC digital input, positive logic, 3ms filter
IC200MDL650: 32-ch 24VDC digital input, positive logic, high-density
IC200MDL730: 8-ch 120VAC digital input, isolated

Digital Output Modules (DO)

IC200MDL740: 8-ch 120VAC digital output, relay, 2A per point
IC200MDL750: 16-ch 24VDC digital output, positive logic, 0.5A per point
IC200MDL760: 32-ch 24VDC digital output, positive logic, high-density

CPU & Communication Modules

IC200CPUE05: VersaMax CPU, 64KB user memory, Ethernet port, RS-232 serial
IC200PNS001: PROFIBUS-DP network slave adapter, remote I/O expansion
IC200PWR002: 24VDC power supply module, 30W, backplane power

Quality Control for the IC200 Range

Each IC200 module processed by DriveKNMS undergoes a structured inspection and functional verification protocol tailored to the VersaMax backplane architecture:

Visual Inspection: PCB surface examination for corrosion, capacitor bulge, burnt traces, and connector pin integrity. IC200 analog modules are inspected under 10x magnification at the terminal block and backplane edge connector.
Backplane Bus Continuity Test: Verification of 5VDC logic rail and backplane data bus signal integrity using a reference IC200 CPU and known-good backplane.
Analog Channel Calibration Check (AI/AO modules): Each analog channel is stimulated with a calibrated signal source (Fluke 725 or equivalent) and output values are compared against GE factory specification tolerances (±0.1% full scale for 16-bit modules).
Channel Isolation Test (IC200ALG240 specific): Channel-to-channel isolation resistance verified at >100MΩ at 500VDC using a Megger MIT400 or equivalent insulation tester.
Burn-In Cycle: Modules are powered continuously for a minimum of 24 hours at ambient temperature before final release.
