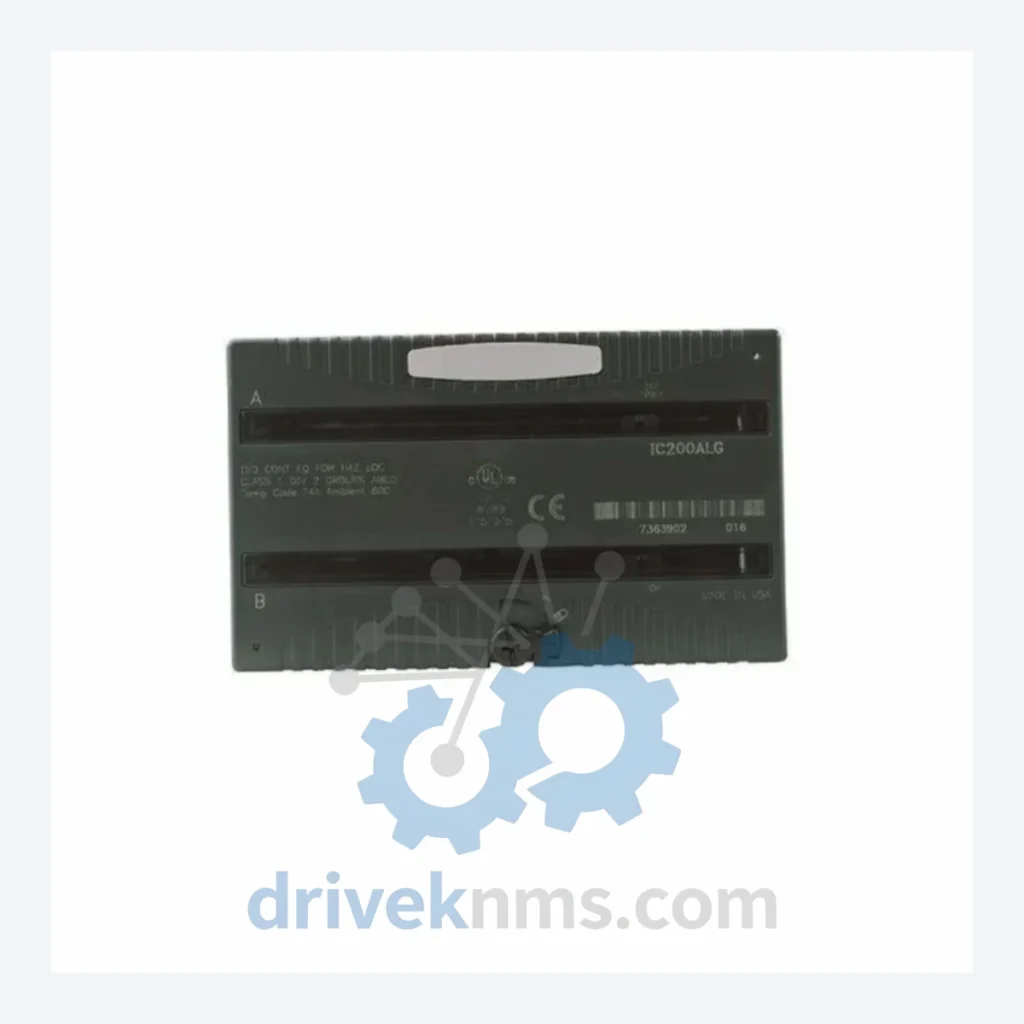

GE IC200ALG328E Analog Output Module – Obsolete VersaMax Spare Part

Technical Dossier

Product Details And Specifications

GE IC200ALG328E Analog Output Module – Obsolete VersaMax Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters are sourced from GE Fanuc published documentation. No parameters have been assumed or fabricated. Confirm specifications against your original system documentation before installation.

Solving the Discontinued Hardware Crisis

The GE VersaMax platform was designed for long-cycle industrial deployment. Many facilities commissioned VersaMax-based systems in the late 1990s and early 2000s with an expected service life of 15–20 years. That lifecycle has now expired on paper — but the physical infrastructure remains in operation, and the business case for replacement has not materialized for most plant operators.

The IC200ALG328E sits at the heart of analog process control within these systems. It translates PLC logic into the 4–20 mA or voltage signals that drive control valves, variable-speed drives, and positioners. There is no software-configurable substitute that drops into the same carrier slot without hardware and firmware changes. This is not a commodity item.

Facilities that have extended VersaMax system life by 5–10 years beyond the official end-of-life date have done so through a disciplined spare parts strategy: identifying the highest-failure-risk modules (analog I/O boards rank consistently at the top due to field wiring exposure and electrolytic capacitor aging), procuring verified spares before market availability collapses, and maintaining a documented inventory of critical boards tied to each production cell. The cost of this strategy is measured in thousands of dollars. The cost of the alternative — a forced system migration under production pressure — is measured in millions.

Condition & Reliability Assurance

Obsolete modules sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step inspection protocol to every IC200ALG328E unit before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Analog output boards are particularly vulnerable to capacitor aging. Each unit is inspected for bulging, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with OEM-equivalent components or rejected.
• Step 2 – Firmware Version Verification: The firmware revision is confirmed and documented. Compatibility with the target system revision is verified where system information is provided by the customer.
• Step 3 – Pin and Connector Inspection: All backplane connector pins are examined under magnification for corrosion, mechanical deformation, and oxidation. Affected contacts are treated or the unit is rejected.
• Step 4 – Functional Output Test: Each channel is tested for correct analog output across the configured range using calibrated test equipment. Results are logged per unit.
• Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with desiccant and labeled with inspection date and test result summary.

Key Features for System Maintenance

• Drop-in replacement: The IC200ALG328E installs directly into any compatible VersaMax modular carrier. No hardware modifications to the carrier or backplane are required.
• No reprogramming required: The PLC program references the I/O slot address, not the module serial number. Replacing a failed module with a verified spare does not require any changes to the control program.
• Avoids engineering re-scoping: A forced migration to a current-generation I/O platform requires I/O mapping changes, potential PLC CPU replacement, field wiring modifications, and full system re-commissioning. A spare module eliminates all of this.
• Supports multi-year asset protection planning: Procurement of 2–3 spare units per critical production cell is a recognized best practice for facilities committed to operating legacy VersaMax infrastructure through the end of its physical service life.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through traceable supply channels. Physical markings, board revision codes, and component profiles are cross-referenced against known-good reference units. Counterfeit screening is part of the Step 3 and Step 4 inspection process.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Q: Can you confirm compatibility with my specific system configuration?
A: Provide your carrier part number and PLC CPU revision. Our technical team will confirm compatibility before dispatch review.
