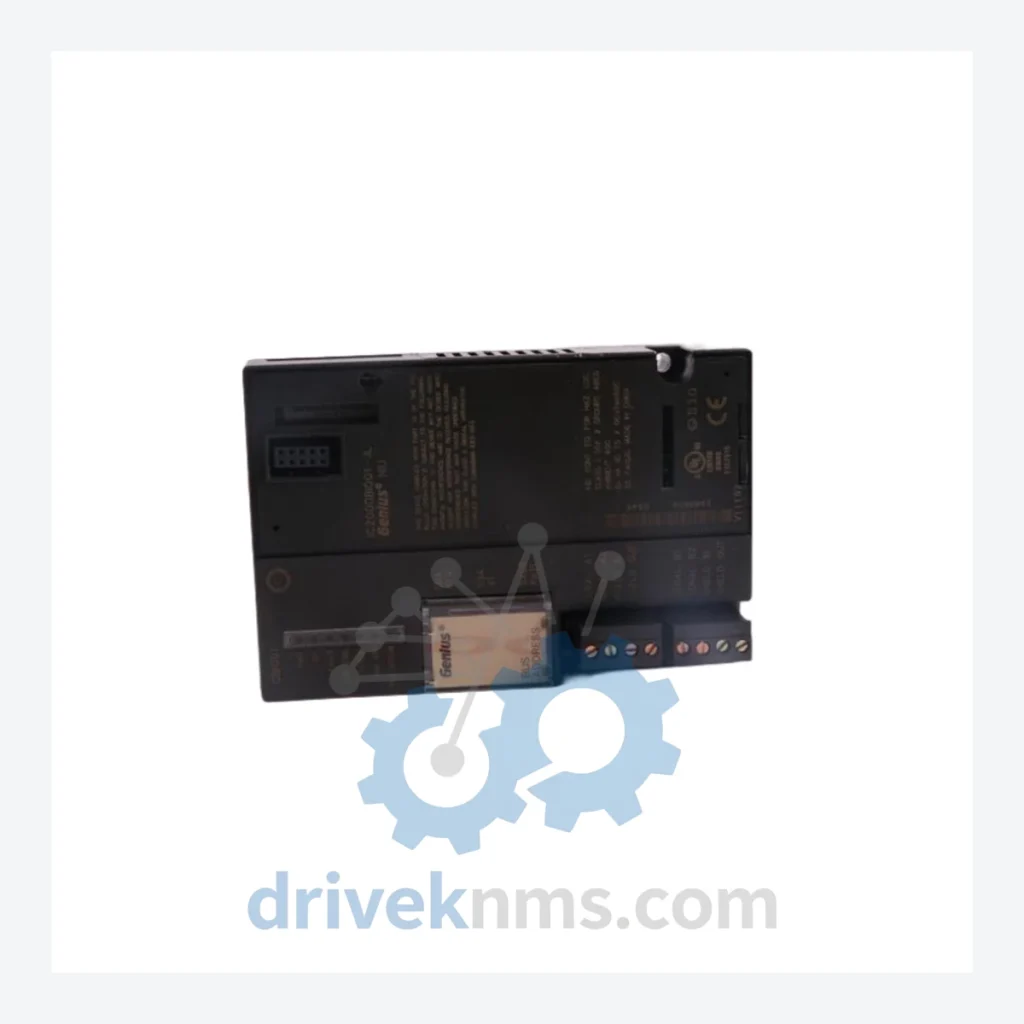

GE VersaMax Modules: IC200PBI001

Technical Dossier

Product Details And Specifications

GE VersaMax Series Technical Notes

The GE VersaMax series — developed under GE Fanuc Automation and later transitioned to Emerson Automation Solutions — represents one of the most widely deployed distributed I/O and modular PLC platforms in global heavy industry. Installed across petrochemical refineries, nuclear power facilities, offshore platforms, pulp and paper mills, and large-scale water treatment plants, VersaMax systems are recognized for their deterministic scan performance, robust backplane architecture, and compatibility with GE Series 90 control infrastructure. The IC200PBI001 is a PROFIBUS DP Network Interface Unit (NIU) that enables VersaMax Remote I/O expansion over PROFIBUS DP networks, operating as a slave device at baud rates up to 12 Mbps. It is a critical interface component in distributed control architectures where the VersaMax rack must communicate with a PROFIBUS master — including GE PACSystems, Siemens S7, or third-party DCS hosts.

The Evolution of VersaMax Architecture

The VersaMax platform was introduced in the late 1990s as a cost-optimized, modular complement to GE's Series 90-30 and Series 90-70 PLC families. Its architecture is built around a passive backplane (carrier) system, where I/O modules, power supplies, and network interface units are inserted into standardized carriers — either 5-slot (IC200CHS001) or 10-slot (IC200CHS002) configurations. Early VersaMax deployments used the IC200PBI001 PROFIBUS NIU and IC200UDR001 standalone CPU for local control tasks.

As industrial networking evolved, GE expanded the VersaMax communication portfolio to include DeviceNet (IC200BEM002), Ethernet (IC200ETM001), and Genius Bus (IC200GBI001) interfaces, allowing the same I/O hardware to be reused across different network topologies. The introduction of PACSystems RX3i in the mid-2000s did not immediately displace VersaMax; instead, VersaMax Remote I/O continued to serve as the field-level expansion layer for PACSystems controllers via the IC200PBI001 and similar NIUs.

By 2015, GE Intelligent Platforms (later Emerson) formally classified the majority of the IC200 series as mature/end-of-active-development, though spare parts and repair services remain commercially available. Sites with VersaMax installed bases — particularly those with 15–25 year operational horizons — require lifecycle extension strategies rather than immediate migration. DriveKNMS specializes in exactly this support model.

VersaMax Full Catalog & Functionalities (SKU List)

Network Interface Units (NIU)

• IC200PBI001: PROFIBUS DP slave NIU, 12 Mbps max, supports up to 244 bytes I/O per slave
• IC200BEM002: DeviceNet slave NIU, Group 2 only slave, 64 bytes I/O max
• IC200GBI001: Genius Bus Interface Unit, connects VersaMax rack to Genius Bus network
• IC200ETM001: Ethernet TCP/IP NIU, 10/100 Mbps, Modbus TCP and SRTP support

CPU / Standalone Controllers

• IC200UDR001: VersaMax Micro 14-point CPU, 120/240 VAC input, relay output
• IC200UDR002: VersaMax Micro 14-point CPU, 24 VDC input, relay output
• IC200UDD104: VersaMax Micro 28-point CPU, 24 VDC input/output, transistor sink
• IC200UDD110: VersaMax Micro 40-point CPU, 24 VDC I/O, transistor source output

Discrete Input Modules (DI)

• IC200MDL140: 8-point 120 VAC discrete input module
• IC200MDL240: 16-point 24 VDC positive logic discrete input module
• IC200MDL241: 16-point 24 VDC negative logic discrete input module
• IC200MDL650: 32-point 24 VDC discrete input module, high-density

Discrete Output Modules (DO)

• IC200MDL330: 8-point 120 VAC discrete output module, 0.5A per point
• IC200MDL740: 16-point 24 VDC positive logic transistor output module
• IC200MDL741: 16-point 24 VDC negative logic transistor output module
• IC200MDL750: 32-point 24 VDC transistor output module, high-density

Analog Input Modules (AI)

• IC200ALG230: 4-channel analog input, 4–20 mA / 0–20 mA, 12-bit resolution
• IC200ALG240: 4-channel analog input, ±10V / 0–10V, 12-bit resolution
• IC200ALG260: 8-channel analog input, 4–20 mA, 12-bit resolution

Analog Output Modules (AO)

• IC200ALG320: 2-channel analog output, 4–20 mA, 12-bit resolution
• IC200ALG321: 2-channel analog output, 0–10V / ±10V, 12-bit resolution

Power Supplies

• IC200PWR001: 24 VDC input power supply for VersaMax I/O carrier
• IC200PWR002: 120/240 VAC input power supply for VersaMax I/O carrier

Carriers / Backplanes

• IC200CHS001: 5-slot VersaMax I/O carrier, DIN rail or panel mount
• IC200CHS002: 10-slot VersaMax I/O carrier, DIN rail or panel mount

Sourcing Hard-to-Find & Obsolete VersaMax Parts

For end-users operating VersaMax systems in facilities with 10+ year remaining operational life — including refineries, chemical plants, and power generation sites — DriveKNMS provides: RFQ-reviewed sourcing status of discontinued IC200 modules; cross-reference support for identifying functional equivalents within the PACSystems RX3i migration path; and long-term supply agreements for maintenance departments requiring guaranteed annual allocation of critical spare parts.

Quality Control for the VersaMax Range

VersaMax modules present specific test challenges due to their backplane-dependent communication architecture. The IC200PBI001 NIU, for example, cannot be fully validated without a live PROFIBUS DP master and a populated carrier. DriveKNMS applies the following test protocol to all VersaMax inventory:

• Visual inspection: connector pin integrity, PCB condition, label verification against GE catalog part numbers
• Power-on test: module inserted into IC200CHS001 or IC200CHS002 carrier with IC200PWR001/002 supply; LED status verification per GE User Manual GFK-1504
• Communication validation: PROFIBUS NIUs (IC200PBI001) tested against a PROFIBUS DP master at 1.5 Mbps and 12 Mbps; node address assignment and I/O data exchange confirmed
• Analog module calibration: AI/AO modules verified against NIST-traceable reference instruments at 0%, 50%, and 100% of rated range
• Burn-in: all refurbished modules subjected to 48-hour powered soak prior to shipment
