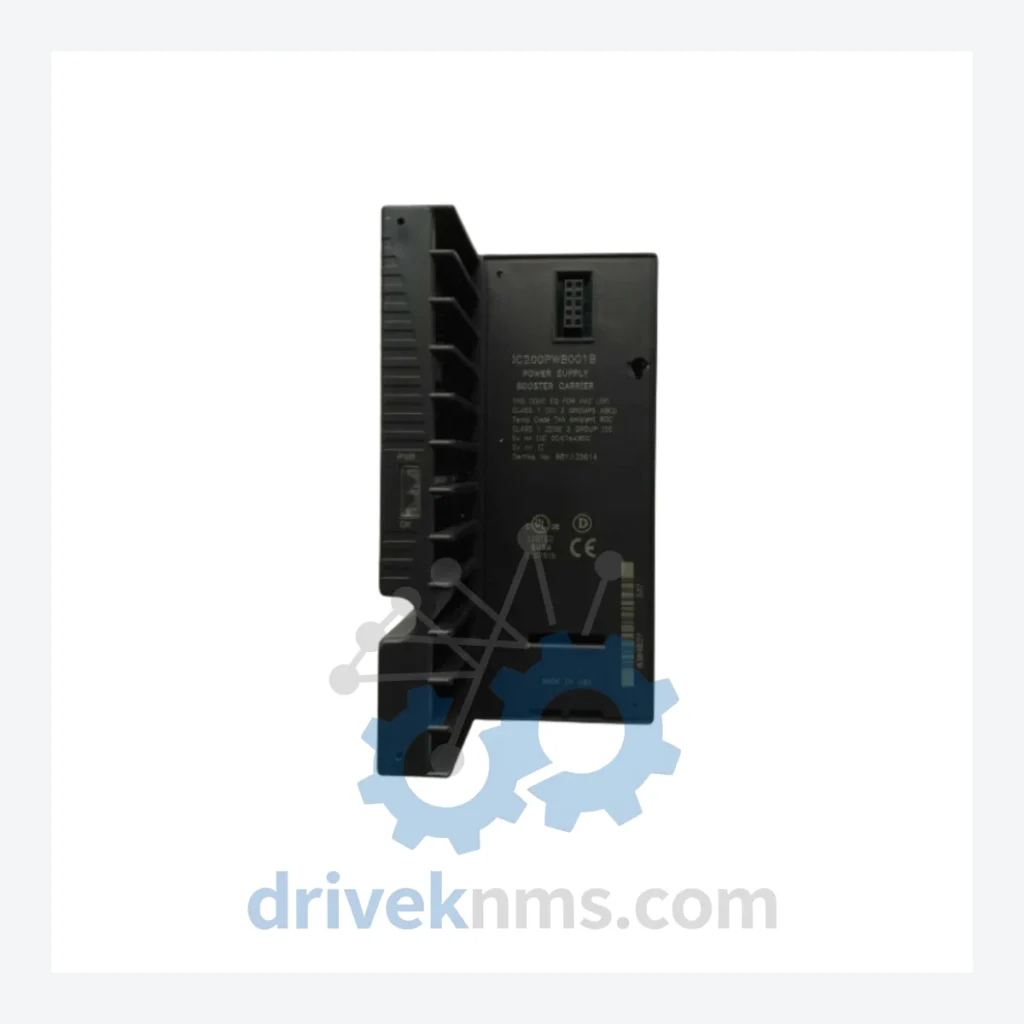

GE Fanuc VersaMax IC200PWB001 Power Supply Booster Carrier

Technical Dossier

Product Details And Specifications

GE Fanuc VersaMax IC200 Series: Comprehensive Module Range and Technical Overview

The GE Fanuc VersaMax IC200 series is a modular programmable logic controller (PLC) platform deployed across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and continuous-process chemical plants. First introduced in the late 1990s as a successor to the Series 90 Micro platform, the IC200 architecture established itself as a standard control backbone in facilities requiring distributed I/O with deterministic scan times and high-density rack configurations. Installed base estimates place VersaMax deployments in tens of thousands of sites across North America, Europe, and Asia-Pacific, with many installations still operating under long-term maintenance contracts well into the 2020s. The IC200PWB001 specifically functions as a Power Supply Booster Carrier, extending the power distribution capacity of a VersaMax rack by providing supplemental power to downstream I/O modules — a critical component in high-density configurations where base power supplies reach their current limits.

📩 Looking for a specific VersaMax IC200 model? Send your parts list to: sale@driveknms.com

The Evolution of VersaMax IC200 Architecture

The VersaMax IC200 platform was engineered around a backplane bus architecture that separates power distribution from data communication, allowing modular expansion without re-engineering the control network. Early revisions (circa 1998–2003) relied on the IC200CHS series carriers and racks paired with IC200PWR series power supplies rated at 30W and 40W outputs. The introduction of booster carriers such as the IC200PWB001 addressed a fundamental limitation: high-density analog and specialty I/O modules drew more current than a single power supply could sustain across a full 16-slot rack.

Subsequent hardware revisions introduced improved thermal management and wider input voltage tolerance (85–264 VAC universal input on later PSU variants). Compatibility across IC200 generations is generally maintained at the carrier and backplane level, though firmware dependencies between the CPU module (IC200CPUE05, IC200CPUE10) and I/O modules require version-matched programming software (Proficy Machine Edition). As of 2024, GE Vernova (successor entity post-GE industrial divestiture) has classified the majority of IC200 hardware as mature/end-of-active-production, with spare parts support transitioning to third-party MRO suppliers and authorized distributors.

VersaMax IC200 Full Catalog & Functionalities (SKU List)

CPU & Controller Modules

• IC200CPUE05: VersaMax Micro CPU, 28 I/O, 10K program memory, Ethernet port
• IC200CPUE10: VersaMax Micro CPU, 28 I/O, 32K program memory, dual Ethernet
• IC200CPU001: VersaMax CPU module, 64K memory, serial & Ethernet communications
• IC200CPU002: VersaMax CPU module, 128K memory, enhanced instruction set

Power Supply Modules

• IC200PWR001: 120/240 VAC input power supply, 30W output for VersaMax rack
• IC200PWR002: 24 VDC input power supply, 30W output, panel-mount compatible
• IC200PWR101: 120/240 VAC input power supply, 40W high-capacity output
• IC200PWB001: Power Supply Booster Carrier — extends rack power capacity for high-density I/O configurations; mounts in standard carrier slot; no external wiring required

Discrete Input (DI) Modules

• IC200MDL640: 120 VAC discrete input module, 8-point, isolated
• IC200MDL650: 24 VDC discrete input module, 16-point, positive logic
• IC200MDL660: 24 VDC discrete input module, 32-point, high-density

Discrete Output (DO) Modules

• IC200MDL740: 120 VAC discrete output module, 8-point, relay isolated
• IC200MDL750: 24 VDC discrete output module, 16-point, transistor sourcing
• IC200MDL760: 24 VDC discrete output module, 32-point, high-density transistor

Analog Input (AI) Modules

• IC200ALG230: Analog input module, 4-channel, 4–20 mA / 0–10 VDC, 12-bit resolution
• IC200ALG240: Analog input module, 8-channel, 4–20 mA, 15-bit resolution

Analog Output (AO) Modules

• IC200ALG320: Analog output module, 2-channel, 4–20 mA, 12-bit resolution
• IC200ALG330: Analog output module, 4-channel, 4–20 mA / 0–10 VDC

Communications & Network Adapters

• IC200BEM003: Genius Bus Interface Unit (BIU) for VersaMax I/O expansion
• IC200PBI001: PROFIBUS-DP network adapter, slave mode, 12 Mbps

Sourcing Hard-to-Find & Obsolete VersaMax IC200 Parts

With GE Vernova having transitioned the IC200 line to mature status, procurement of specific modules — particularly low-volume specialty carriers like the IC200PWB001 — requires engagement with MRO distributors maintaining physical stock of legacy hardware. DriveKNMS maintains a dedicated inventory of VersaMax IC200 modules sourced from decommissioned plant equipment, authorized surplus channels, and factory-refurbished stock. All units are catalogued by revision level and firmware compatibility to prevent cross-revision mismatches during installation.

For facilities operating IC200-based DCS or hybrid PLC-DCS architectures under long-term service agreements, DriveKNMS provides lifecycle extension support including: multi-year supply contracts for critical spare modules, cross-reference mapping to compatible replacement modules where direct equivalents are unavailable, and technical documentation support for obsolete revision hardware.

Quality Control for the VersaMax IC200 Range

VersaMax IC200 modules present specific test challenges due to their integrated backplane bus connectors and distributed power architecture. DriveKNMS applies a structured test protocol for all IC200 inventory:

• Backplane connector inspection: pin alignment, oxidation, and mechanical integrity verification on all carrier-side connectors
• Power supply output load testing: IC200PWR and IC200PWB modules are tested under rated load conditions (30W / 40W) with voltage ripple measurement at the output bus
• I/O functional verification: discrete modules tested with live 24 VDC / 120 VAC signal injection; analog modules verified for linearity and offset error within published specifications
• CPU module memory and communication test: IC200CPU modules are cycled through a standardized ladder logic program to verify scan execution, memory read/write integrity, and serial/Ethernet port function
• Thermal burn-in: all refurbished modules undergo a minimum 24-hour powered burn-in at ambient temperature before release to inventory
