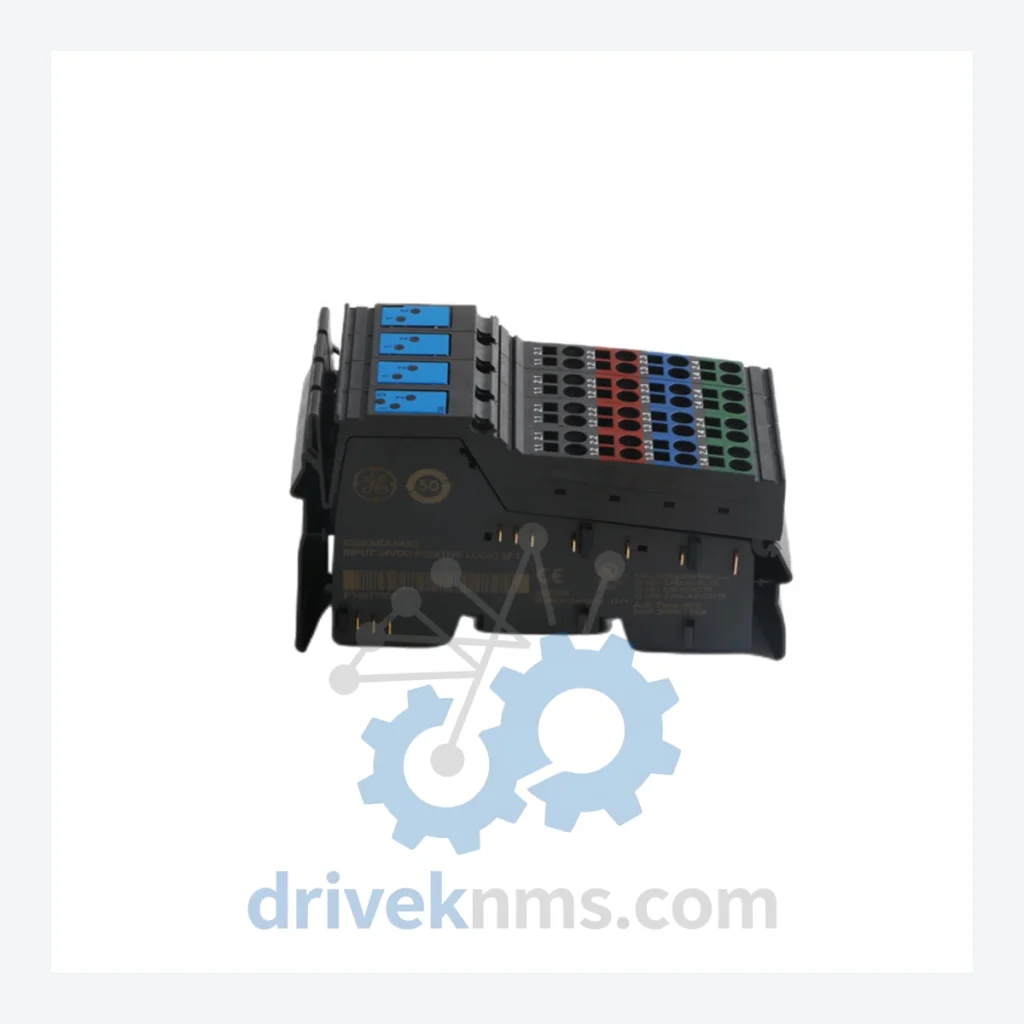

GE VersaMax Micro IC220 Series: Comprehensive Module Range and Technical Overview

The GE VersaMax Micro IC220 series is a compact, modular programmable logic controller (PLC) platform developed by GE Automation (now part of Emerson / GE Vernova ecosystem). Deployed extensively across global heavy industry — including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and continuous process manufacturing — the IC220 series occupies a critical position in legacy DCS and hybrid control architectures. Its DIN-rail form factor, deterministic scan cycle, and broad I/O expansion capability made it a standard selection for skid-mounted control panels and distributed machine control from the late 1990s through the 2010s. Installed base density remains high in North America, Southeast Asia, and the Middle East, creating sustained demand for spare parts and lifecycle extension support.

The Evolution of IC220 Architecture

The VersaMax Micro IC220 platform was introduced as a cost-optimized derivative of GE's broader VersaMax family, sharing backplane communication protocols and programming toolchain (Proficy Machine Edition / VersaPro) with the larger IC200 and IC693 series. Early IC220 hardware (circa 1998–2004) focused on standalone micro-PLC configurations with onboard discrete I/O and optional expansion modules. Mid-generation revisions introduced enhanced analog resolution, expanded communication options (Ethernet, DeviceNet, Profibus-DP), and improved noise immunity for industrial environments. The platform reached functional maturity by approximately 2010. GE subsequently shifted strategic investment toward the RX3i (IC695) and PACSystems platforms, placing the IC220 series in a maintenance-only lifecycle phase. Compatibility considerations: IC220 modules are not hot-swappable with IC200 or IC693 backplanes without adapter hardware. Programming is performed via RS-232 serial or Ethernet depending on CPU variant. Firmware versions must be matched to CPU revision for stable operation — a critical factor when sourcing replacement modules from the secondary market.

IC220 Full Catalog & Functionalities (SKU List)

The following represents a verified cross-section of the IC220 series module catalog, organized by functional category. All models listed are confirmed VersaMax Micro IC220 platform components.

Discrete Output Modules

• IC220MDL643: 24VDC positive logic discrete output module, 16-point, source output configuration for standard industrial loads.
• IC220MDL640: 24VDC positive logic discrete output, 8-point, compact footprint for space-constrained panels.
• IC220MDL650: Relay output module, 8-point, Form A contacts, 2A per point, for mixed AC/DC load switching.
• IC220MDL660: Relay output module, 16-point, Form C contacts, suitable for high-cycle actuator control.

Discrete Input Modules

• IC220MDL240: 120VAC discrete input module, 16-point, for legacy AC field device integration.
• IC220MDL250: 240VAC discrete input module, 8-point, high-voltage field signal acquisition.
• IC220MDL730: 24VDC positive logic discrete input, 16-point, standard sink/source compatible.
• IC220MDL740: 24VDC discrete input module, 32-point high-density, for large I/O count applications.

Analog I/O Modules

• IC220ALG320: Analog input module, 4-channel, 4–20mA / 0–10V configurable, 12-bit resolution.
• IC220ALG321: Analog input module, 8-channel, current/voltage selectable per channel, 12-bit.
• IC220ALG430: Analog output module, 2-channel, 4–20mA, 12-bit DAC, for control valve and positioner drives.
• IC220ALG431: Analog output module, 4-channel, 4–20mA / 0–10V, expanded process control output.

CPU / Controller Modules

• IC220CPU001: VersaMax Micro CPU, 14-point onboard I/O, RS-232 programming port, 16KB user memory.
• IC220CPU002: VersaMax Micro CPU, 28-point onboard I/O, Ethernet option slot, expanded program memory.
• IC220CPU005: VersaMax Micro Plus CPU, enhanced instruction set, data logging capability, Modbus TCP support.

Communication & Specialty Modules

• IC220PNS001: PROFINET I/O adapter module for IC220 expansion racks, enables integration into PROFINET networks.
• IC220BEM001: DeviceNet bus expansion module, slave node configuration, for legacy DeviceNet master integration.

Sourcing Hard-to-Find & Obsolete IC220 Parts

Quality Control for the IC220 Range

IC220 modules present specific test challenges due to their integrated backplane connector design and serial bus communication architecture. DriveKNMS applies the following verification procedures to IC220 inventory: (1) Visual inspection of backplane connector pins for deformation, oxidation, and mechanical damage — a primary failure mode in field-removed units. (2) Power-on functional test using a matched IC220 CPU and expansion rack to confirm module enumeration and I/O response. (3) For discrete output modules including IC220MDL643: load-side switching test at rated voltage and current to verify output transistor or relay contact integrity. (4) For analog modules: signal accuracy verification across the full input/output range using calibrated reference instruments, with tolerance checked against GE published specifications. (5) Firmware and hardware revision logging to ensure compatibility documentation is provided with each unit shipped.
