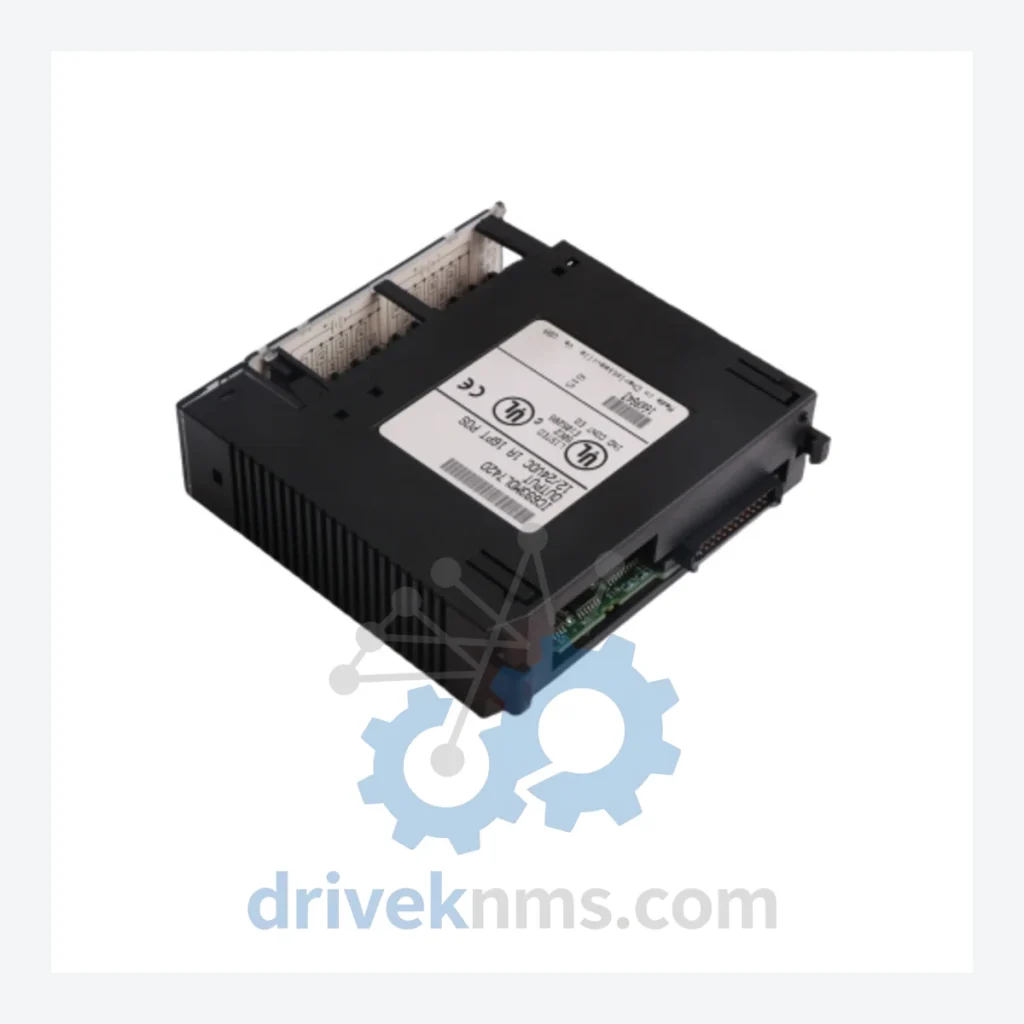

GE IC693MDL742 Discrete Output Module – Obsolete Series 90-30 Spare Part

When a GE Fanuc Series 90-30 output module fails on the production floor, the clock starts immediately. A full control system migration — new PLC hardware, engineering hours, I/O rewiring, software re-commissioning, operator retraining — routinely runs into the hundreds of thousands of dollars, and in process-critical industries, unplanned downtime compounds that figure daily. The IC693MDL742 has been discontinued by GE Fanuc. New production ceased years ago. What remains in circulation is finite.

DriveKNMS maintains verified physical stock of the IC693MDL742. This is not a broker listing. Availability is limited and not guaranteed beyond current inventory.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Solving the Discontinued Hardware Crisis

The GE Fanuc Series 90-30 platform was deployed extensively across manufacturing, water treatment, oil & gas, and utilities from the late 1980s through the 2000s. Many of these installations remain operational today — not because operators are unaware of the discontinuation, but because the cost and risk of migration outweigh the cost of maintenance, provided spare parts remain available.

The IC693MDL742 is a 32-point 12/24 VDC discrete output module that interfaces the Series 90-30 CPU with field devices: solenoids, motor starters, indicator lights, and relay coils. There is no direct cross-replacement from a current-production GE product line. Substituting a different module requires rack slot reconfiguration, I/O address remapping in the ladder logic, and in many cases, a full program re-download and functional test — a process that cannot be completed during a production shift.

For plant managers operating under capital expenditure constraints, the calculus is straightforward: one IC693MDL742 spare on the shelf eliminates the risk of a multi-day outage. A planned system migration, budgeted and scheduled, is a controlled event. An emergency migration triggered by a failed output module with no spare is not.

How to extend your Series 90-30 asset life by 5–10 years:

• Maintain a minimum two-unit spare pool for every IC693MDL742 slot in your rack configuration. Output modules in continuous duty cycles are subject to transistor degradation over time.
• Audit your installed base annually. Identify which racks carry the highest I/O load and prioritize sparing those positions first.
• Store spares in controlled environments. Temperature cycling and humidity are the primary causes of electrolytic capacitor degradation in legacy modules. A climate-controlled parts cabinet is a low-cost insurance policy.
• Document your current firmware and configuration files. If a module is replaced, having a verified backup of the CPU program eliminates re-commissioning risk.
• Negotiate a multi-unit purchase. Obsolete module pricing is not linear — per-unit cost decreases with volume, and the supply window is finite. Purchasing three to five units now is consistently less expensive than sourcing one unit under emergency conditions two years from now.

Condition & Reliability Assurance

Every IC693MDL742 unit processed by DriveKNMS passes a five-stage inspection protocol before it is offered for sale:

1. Visual and mechanical inspection: Board surface, connector pins, and housing are examined for physical damage, corrosion, and contamination.
2. Electrolytic capacitor assessment: Capacitors are the primary failure point in legacy modules. Units showing bulging, leakage, or ESR values outside tolerance are rejected.
3. Pin and connector integrity check: Backplane connector pins are inspected under magnification for oxidation, bending, and contact wear.
4. Firmware version verification: Where applicable, firmware revision is documented and disclosed to the buyer prior to shipment.
5. Functional power-on test: The module is tested in a Series 90-30 rack under controlled conditions to verify output channel response before packaging.

Units that do not pass all five stages are not sold. Condition is disclosed accurately — new-in-box, factory-refurbished, or tested-used — with no ambiguity.

Key Features for System Maintenance

• Drop-in replacement: The IC693MDL742 installs directly into any Series 90-30 rack slot without hardware modification.
• No reprogramming required: The CPU recognizes the module by slot address. Replacing a like-for-like module does not require changes to the ladder logic program.
• No engineering reconfiguration: I/O addressing, scan cycle parameters, and fault handling remain unchanged. Replacement is a maintenance task, not an engineering project.
• Avoids system-wide migration cost: Keeping the Series 90-30 platform operational with verified spares defers a capital expenditure that, for a mid-size facility, typically ranges from $150,000 to $500,000 when engineering, hardware, installation, and lost production are fully accounted.

FAQ

What warranty applies to an obsolete part?
DriveKNMS provides a 90-day warranty against functional failure on all tested units. New-in-box units carry a 12-month warranty. Warranty terms are confirmed in writing at the time of purchase.

How do I know the unit is genuine and not counterfeit?
All units are sourced through documented supply channels. Labeling, board markings, and component profiles are verified against known-good reference units. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any production-critical application, yes. The IC693MDL742 is no longer manufactured. Current global inventory is finite and decreasing. Facilities that have experienced a single unplanned outage due to an unavailable spare consistently report that the cost of that event exceeded the cost of a multi-unit spare purchase by a factor of ten or more.

Can you source other Series 90-30 modules?
Yes. DriveKNMS specializes in obsolete GE Fanuc Series 90-30 and Series 90-70 components. Contact us with your full parts list for availability and pricing.
