GE IC693MDL742E Discrete Output Module – Obsolete Series 90-30 Spare Part

Technical Dossier

Product Details And Specifications

GE IC693MDL742E Discrete Output Module – Obsolete Series 90-30 Spare Part

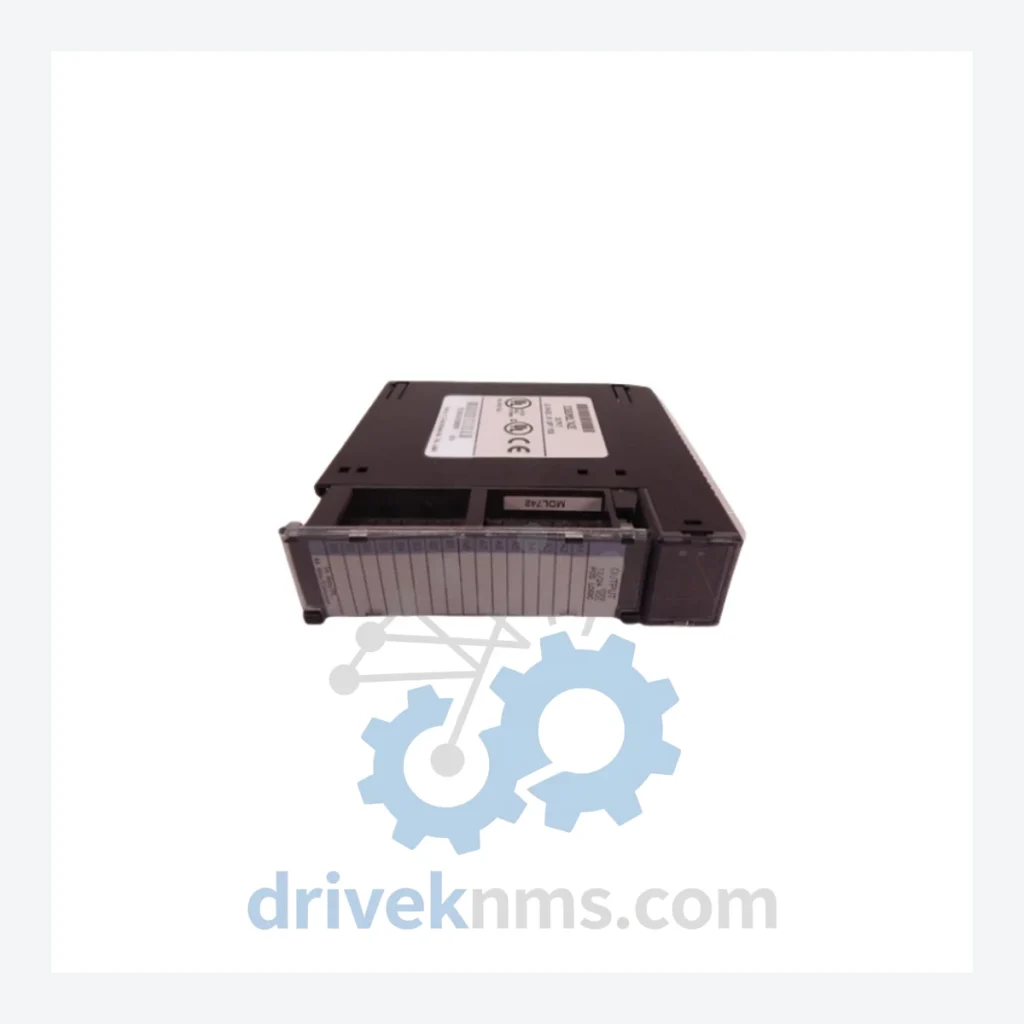

The GE IC693MDL742E is a positive logic discrete output module designed for the GE Series 90-30 programmable logic controller platform. This module is confirmed discontinued by GE Automation (now part of Emerson). For any plant still operating a Series 90-30 system, a single failed output module of this type can halt an entire production line. A forced migration to a modern PLC platform — including hardware, engineering, software licensing, I/O rewiring, and recommissioning — routinely costs between $500,000 and $2,000,000 USD depending on system scale. Securing a verified spare IC693MDL742E is not a procurement exercise; it is a capital protection decision.

DriveKNMS maintains a controlled inventory of hard-to-find Series 90-30 modules sourced through verified industrial channels. Each unit undergoes a documented inspection process before dispatch.

Technical Specifications

Solving the Discontinued Hardware Crisis

The GE Series 90-30 platform was one of the most widely deployed mid-range PLC systems in North American and European process industries throughout the 1990s and 2000s. It is installed in water treatment facilities, automotive assembly lines, food processing plants, and chemical handling systems. GE Automation ceased active production of the IC693 module family, and authorized distribution channels have been exhausted for most part numbers including the IC693MDL742E.

The IC693MDL742E occupies a specific slot in the Series 90-30 backplane and communicates via the proprietary GE backplane bus. There is no direct plug-in replacement from any current GE product line. Substituting a different output module requires firmware-level reconfiguration and, in many cases, modification of the ladder logic program — work that requires a licensed GE Proficy Machine Edition environment and qualified PLC engineers.

For plant managers facing system retirement pressure, the cost-benefit calculation is straightforward: one verified IC693MDL742E spare, properly stored, extends the operational life of the entire control system by 3 to 7 years at a fraction of the cost of a platform migration. Facilities running multiple Series 90-30 racks should maintain a minimum buffer stock of two output modules per rack configuration to cover both immediate failure and secondary failure during the repair window.

Strategy for extending automation asset life by 5–10 years using critical spares:

• Conduct a full bill-of-materials audit of all Series 90-30 modules currently installed across all production lines.
• Classify each module by failure frequency and sourcing lead time. Output modules such as the IC693MDL742E are high-priority due to field exposure and switching cycle wear.
• Establish a minimum stock level of one to two units per active module type. Store in anti-static packaging in a climate-controlled environment (15–30°C, below 70% RH).
• Negotiate a long-term supply agreement with a specialist distributor such as DriveKNMS who maintains verified stock of obsolete GE Series 90-30 parts.
• Document all firmware versions and CPU configuration files. A replacement module must be loaded with the correct configuration before installation.
• Schedule annual inspection of installed modules for signs of capacitor aging, terminal corrosion, or backplane connector wear.

Condition & Reliability Assurance

All IC693MDL742E units supplied by DriveKNMS pass a structured 5-step inspection protocol before shipment:

• Step 1 – Visual and Physical Inspection: Full examination of the module housing, terminal blocks, backplane connector pins, and label integrity. Units with cracked housings, bent pins, or missing labels are rejected.
• Step 2 – Electrolytic Capacitor Assessment: Series 90-30 output modules contain electrolytic capacitors on the power conditioning circuit. Units are assessed for capacitor bulging, electrolyte leakage, and ESR deviation. Aged capacitors are a primary failure mode in long-stored modules.
• Step 3 – Firmware and Revision Verification: The hardware revision suffix (in this case E) is confirmed against the physical board markings. Revision mismatches can cause compatibility issues with specific CPU firmware versions.
• Step 4 – Terminal and Pin Corrosion Check: Backplane edge connector contacts are inspected under magnification for oxidation. Corroded contacts cause intermittent communication faults that are difficult to diagnose in the field.
• Step 5 – Functional Output Test: Where test equipment is available, output channels are exercised under load to verify switching response and current delivery within specification.

Key Features for System Maintenance

• Drop-in replacement: The IC693MDL742E installs directly into any compatible Series 90-30 backplane slot without mechanical modification.
• No reprogramming required: The CPU recognizes the module by slot address and module type. Provided the replacement carries the same revision, no changes to the PLC program are necessary in standard configurations.
• Avoids engineering reconstruction costs: A platform migration from Series 90-30 to a current GE RX3i or third-party PLC requires full I/O remapping, program conversion, and site acceptance testing. A spare module eliminates this cost entirely for the duration of the asset planned operational life.
• Immediate dispatch: In-stock units can be shipped within 24–48 hours of order confirmation, minimizing unplanned downtime duration.

FAQ

Q: What warranty applies to an obsolete IC693MDL742E?
A: DriveKNMS provides a 90-day functional warranty on all inspected units. This covers failure under normal operating conditions within a correctly configured Series 90-30 system. Warranty does not cover damage from incorrect installation, overvoltage, or backplane faults.

Q: Are these new or refurbished units?
A: Stock condition varies. Units are classified as new-surplus (unused, original packaging), tested-used (removed from service, inspected and tested), or refurbished (inspected, reconditioned, and tested). Condition is disclosed at the time of quotation. All units meet the same 5-step inspection standard regardless of condition classification.

Q: How many units should a facility hold in reserve?
A: For a facility with one to three active Series 90-30 racks using IC693MDL742E modules, a minimum of two spare units is recommended. For larger installations or facilities where downtime cost exceeds $10,000 per hour, a buffer of four to six units is a defensible maintenance investment.

Q: Can this module be used with the IC693CPU374 VME-based CPU?
A: The IC693MDL742E is compatible with the IC693CPU374 when installed in a standard IC693 backplane. Confirm slot addressing in your hardware configuration file before installation.

Q: How should spare modules be stored long-term?
A: Store in original or anti-static packaging. Maintain storage temperature between 15°C and 30°C with relative humidity below 70%, non-condensing. Avoid storage near magnetic fields or high-vibration equipment. Inspect annually for physical degradation.
