GE Fanuc IC693MDL753H: Series 90-30 Discrete Output Module —

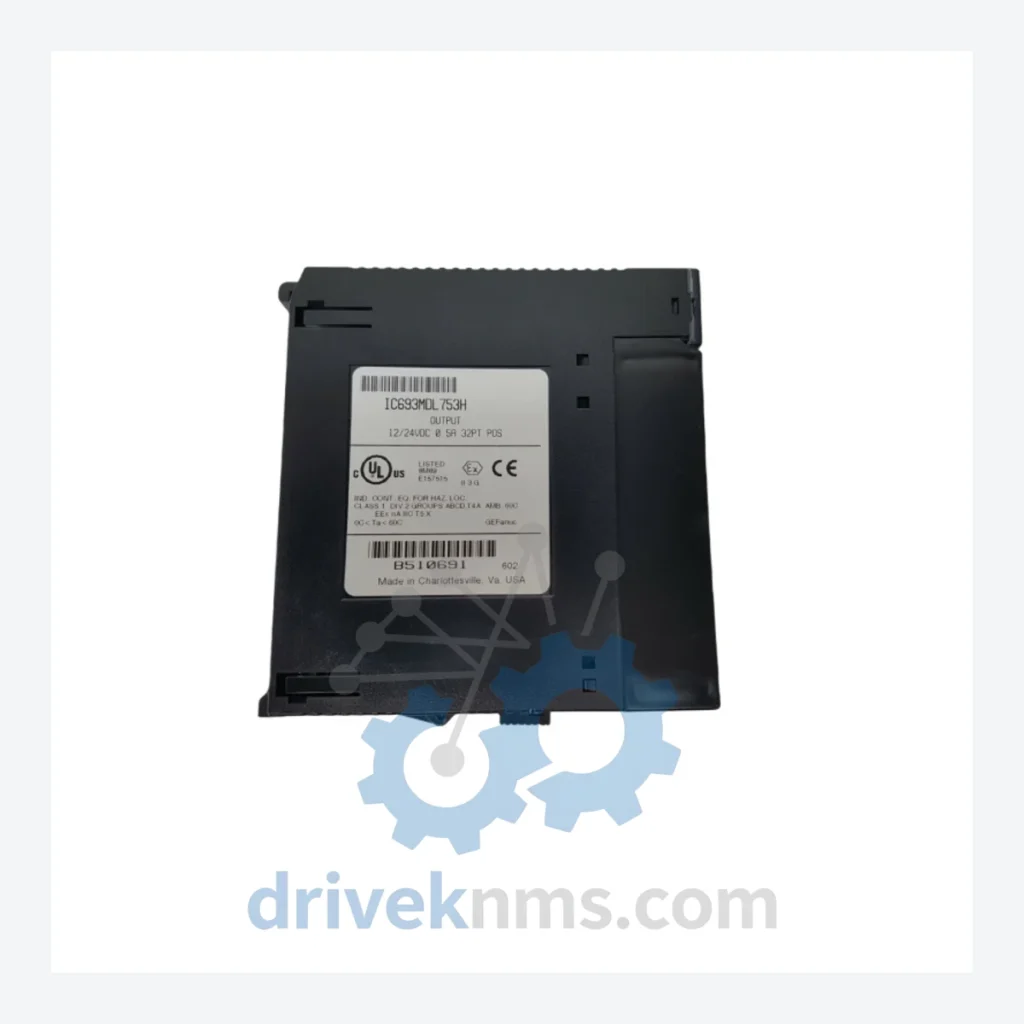

Model: IC693MDL753H

Brand General Electric

Series Series 90-30

Model IC693MDL753H

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

GE Fanuc IC693 Series 90-30: Comprehensive Module Range and Technical Overview

The GE Fanuc Series 90-30 (IC693) is one of the most widely deployed programmable logic controller platforms in global heavy industry. Installed across petrochemical refineries, nuclear power generation facilities, offshore platforms, pulp and paper mills, and automotive assembly lines, the IC693 rack-based architecture established a benchmark for modular PLC design throughout the 1990s and 2000s. Its distributed I/O capability, deterministic scan cycle, and broad third-party integration support made it the default control platform for plant-wide SCADA and DCS hybrid architectures. The IC693MDL753H is a 32-point discrete output module rated for 12/24VDC operation at 0.5A per point, designed for high-density digital output applications including solenoid valve control, relay coil driving, and indicator panel interfaces.

The Evolution of IC693 Architecture

The Series 90-30 platform was introduced by GE Fanuc Automation in the early 1990s as a successor to the Series Six and Series Five PLC families. The IC693 backplane supports 5-slot, 10-slot, and expansion rack configurations, communicating over a proprietary parallel backplane bus. Early revisions used the IC693CPU311 and IC693CPU313 processors with limited memory and no Ethernet capability. Mid-generation CPUs such as the IC693CPU364 introduced embedded Ethernet and expanded program memory to 240KB. The final production CPUs — IC693CPU374 and IC693CPU375 — added 512KB user memory and support for Motion Mate DSM314/DSM324 motion control modules.

I/O modules evolved in parallel: early discrete modules used 24VDC TTL-level signaling; later revisions added diagnostic feedback, blown fuse detection, and field-side isolation improvements. Analog modules progressed from basic 12-bit resolution (IC693ALG220) to 16-bit high-resolution variants (IC693ALG442). The communications portfolio expanded from SNP/SNPX serial protocols to Genius Bus, Profibus-DP, DeviceNet, and Ethernet Global Data (EGD). GE Fanuc formally announced end-of-production for the IC693 series in 2015, with GE Automation & Controls (later acquired by Emerson) providing extended lifecycle support through authorized distributors. Replacement migration paths include the PACSystems RX3i (IC695) platform, which offers backward-compatible I/O bus bridging via the IC695LRE001 expansion adapter.

IC693 Full Catalog & Functionalities (SKU List)

CPU Modules

IC693CPU311: 6K word program memory, SNP serial port, no Ethernet, base CPU.
IC693CPU313: 12K word memory, dual serial ports, expanded I/O scan.
IC693CPU321: 32K word memory, floating point math, SNP/SNPX protocol.
IC693CPU340: 240K word memory, embedded Ethernet, EGD support.
IC693CPU364: 240K word memory, 10/100 Ethernet, high-speed counter support.
IC693CPU374: 512K word memory, motion control interface, advanced diagnostics.

Discrete Input Modules

IC693MDL632: 16-point 24VDC discrete input, isolated, 8mA per point.
IC693MDL634: 32-point 24VDC discrete input, non-isolated, high-density.
IC693MDL645: 16-point 120VAC discrete input, optically isolated.
IC693MDL655: 32-point 120VAC discrete input, group isolated.

Discrete Output Modules

IC693MDL740: 12-point relay output, 2A per point, 120/240VAC or 24VDC.
IC693MDL741: 16-point relay output, 2A per point, isolated commons.
IC693MDL752: 32-point 12/24VDC transistor output, 0.5A per point, sourcing.
IC693MDL753: 32-point 12/24VDC transistor output, 0.5A per point, sinking.
IC693MDL753H: 32-point 12/24VDC discrete output, 0.5A per point, sinking, conformal coated revision H — current listing.
IC693MDL760: 8-point 120VAC triac output, 0.5A per point, isolated.

Analog Modules

IC693ALG220: 4-channel 12-bit analog input, 0–10V / 4–20mA selectable.
IC693ALG390: 4-channel 12-bit analog output, 0–10V / 4–20mA.
IC693ALG442: 8-channel 16-bit high-resolution analog input, thermocouple/RTD compatible.

Communications & Specialty Modules

IC693CMM311: Serial communications module, RS-232/RS-485, SNP/SNPX/RTU.
IC693CMM321: Ethernet interface module, 10BaseT, EGD/SRTP protocol.
IC693BEM331: Genius Bus Controller, supports up to 32 Genius devices.
IC693PBS301: Profibus-DP slave adapter, up to 244 bytes I/O.
IC693DSM314: Motion Mate DSM, 4-axis servo/stepper control.

Power Supply Modules

IC693PWR321: 120/240VAC input power supply, 30W output, standard rack.
IC693PWR322: 24VDC input power supply, 30W, for DC-powered panels.
IC693PWR330: High-capacity 120/240VAC supply, 40W, for fully loaded racks.

Sourcing Hard-to-Find & Obsolete IC693 Parts

The IC693 series reached end-of-production status in 2015. OEM replacement stock is no longer available through standard distribution channels. DriveKNMS maintains a dedicated inventory of tested IC693 modules sourced from decommissioned plant equipment, authorized surplus channels, and controlled warehouse stock. For obsolete variants — including early CPU revisions (IC693CPU311, IC693CPU313), legacy analog modules (IC693ALG220), and discontinued communications adapters (IC693CMM311) — DriveKNMS provides lifecycle extension support including cross-reference verification, firmware revision identification, and compatibility confirmation against the target rack configuration. All modules are catalogued by hardware revision letter to prevent incompatible substitution. Customers operating IC693 systems beyond OEM support windows are advised to maintain a minimum 12-month buffer stock of critical I/O modules and CPUs. DriveKNMS can assist with bill-of-materials audits and strategic spare parts planning for long-term plant maintenance programs.
