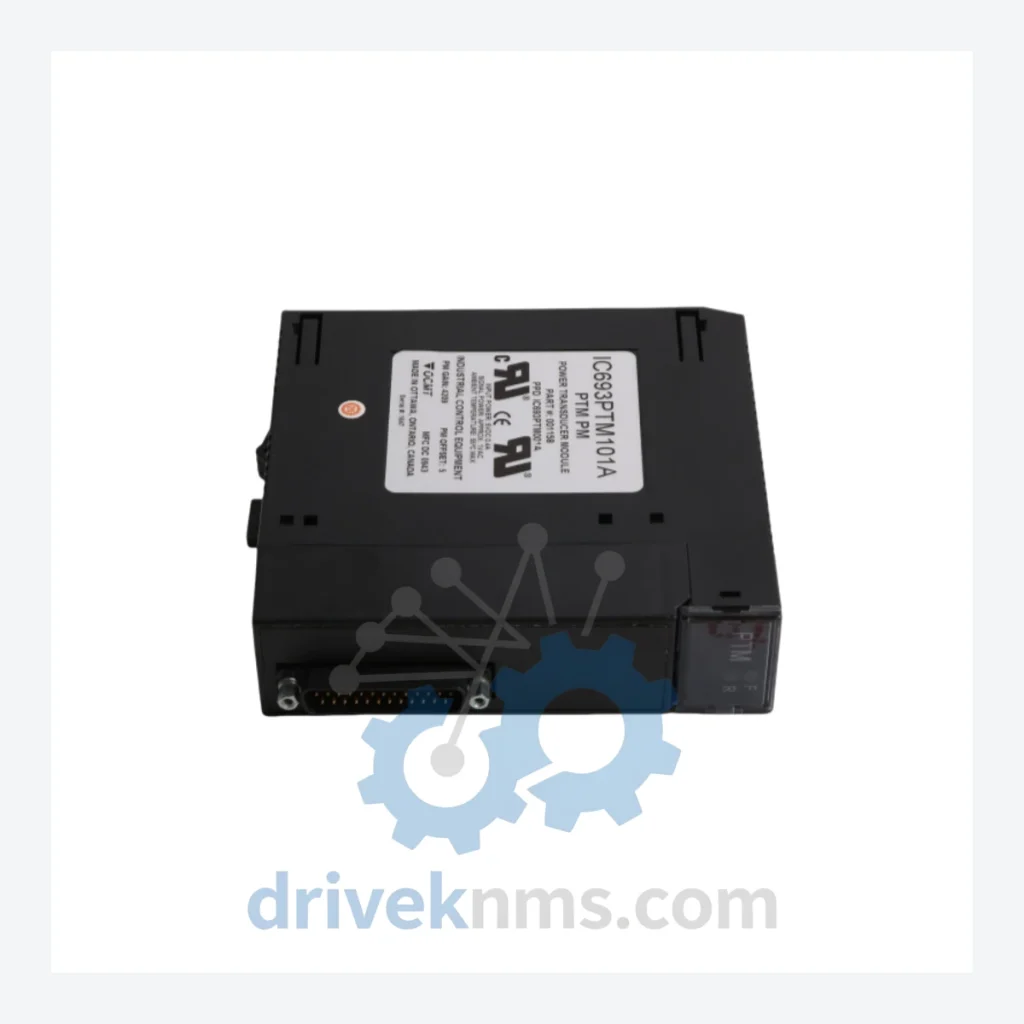

GE IC693 Modules: IC693PTM101A Power Transducer Module

Technical Dossier

Product Details And Specifications

GE IC693 Series Technical Notes

The GE Fanuc Series 90-30 (IC693) programmable logic controller platform is one of the most widely deployed mid-range DCS/PLC architectures in global heavy industry. Installed across petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants, the IC693 rack-based architecture has accumulated decades of field runtime in safety-critical environments. Its modular backplane design — supporting 5-slot, 10-slot, and expansion configurations — allows engineers to construct highly customized I/O and control topologies without replacing the base CPU infrastructure. The IC693PTM101A is a Power Transducer Module within this ecosystem, used to monitor AC power parameters (voltage, current, power factor) and feed real-time data to the CPU over the backplane bus.

The Evolution of IC693 Architecture

The IC693 platform was introduced by GE Fanuc Automation in the late 1980s as the Series 90-30, succeeding the Series Six and Series One product lines. The architecture was designed around a parallel backplane bus with deterministic scan-cycle execution, targeting applications requiring sub-100ms response times with high I/O density. Early CPU modules such as the IC693CPU311 offered 6KB of user memory; subsequent generations scaled to the IC693CPU374 with Ethernet-native connectivity and 512KB program memory.

The platform underwent three major architectural transitions: (1) the introduction of the Genius Bus interface modules (IC693BEM series) enabling distributed I/O over a single twisted-pair network; (2) the integration of Profibus-DP adapters (IC693PBS301) for European process industry compatibility; and (3) the addition of high-speed counter and motion control modules for discrete manufacturing. By the mid-2000s, GE Fanuc transitioned branding to GE Intelligent Platforms, and the IC693 line entered a managed lifecycle phase. As of 2024, the Series 90-30 is classified as a mature/end-of-active-development platform, with GE (now Emerson / Proficy heritage) providing limited new hardware releases. Long-term maintenance support is the primary operational mode for existing installations.

IC693 Full Catalog & Functionalities (SKU List)

CPU Modules

• IC693CPU311: Series 90-30 CPU, 6KB user memory, no Ethernet, base controller for small applications.
• IC693CPU313: CPU with 12KB memory, supports floating-point math, enhanced instruction set.
• IC693CPU323: 16KB memory CPU, supports C-block programming and interrupt routines.
• IC693CPU340: CPU with built-in serial port, 240KB memory, supports SNP/SNPX protocols.
• IC693CPU350: 240KB CPU with Ethernet TCP/IP option slot, high-speed execution.
• IC693CPU360: Enhanced CPU, 240KB, dual serial ports, expanded register table.
• IC693CPU374: Top-tier Series 90-30 CPU, 512KB, native 10/100 Ethernet, Modbus TCP support.

Discrete I/O Modules

• IC693MDL340: 24VDC discrete input module, 16-point, positive logic, isolated commons.
• IC693MDL390: 120VAC discrete input module, 16-point, optically isolated.
• IC693MDL740: 12/24VDC discrete output module, 16-point, 0.5A per point, sourcing.
• IC693MDL752: 24VDC output module, 16-point, sinking, 0.5A, short-circuit protected.
• IC693MDL930: Relay output module, 8-point, Form C contacts, 2A per point, 120/240VAC.

Analog I/O Modules

• IC693ALG220: Analog input module, 4-channel, 4–20mA / 0–10V selectable, 12-bit resolution.
• IC693ALG390: Analog output module, 2-channel, 4–20mA, 12-bit, loop-powered.
• IC693ALG442: Combination analog I/O, 4 inputs / 2 outputs, 13-bit, voltage and current.

Power & Specialty Modules

• IC693PTM101A: Power Transducer Module — monitors AC line voltage, current, real/reactive power, and power factor. Outputs data to CPU via backplane. Used in energy monitoring and load management applications within Series 90-30 racks.
• IC693PWR321: Standard power supply, 120/240VAC input, 30W output, supports up to 10-slot base.
• IC693PWR330: High-capacity power supply, 120/240VAC, 40W, redundancy-capable with IC693PWR331.

Communications Modules

• IC693CMM311: Communications coprocessor, dual RS-232/RS-485 ports, supports SNP, RTU, ASCII protocols.
• IC693BEM331: Genius Bus Controller, connects Series 90-30 to Genius distributed I/O network.
• IC693PBS301: Profibus-DP slave adapter, 12Mbps, connects IC693 rack to Profibus master networks.

Quality Control for the IC693 Range

IC693 modules present specific test challenges due to their backplane-dependent communication architecture. A module cannot be fully validated in isolation — it must be exercised within a live Series 90-30 rack with an active CPU to confirm backplane bus handshake, interrupt response, and register map integrity. DriveKNMS operates dedicated IC693 test benches configured with IC693CPU350 and IC693CPU374 controllers, allowing full functional simulation of field conditions.

For the IC693PTM101A specifically, the test protocol includes: AC input signal injection across the rated voltage and current measurement range; verification of power factor calculation accuracy against a calibrated reference load; backplane data register readback confirmation via Logicmaster 90 or Proficy Machine Edition software; and thermal cycling to confirm capacitor and transformer integrity. Modules that fail any stage of this protocol are quarantined and not returned to inventory.
