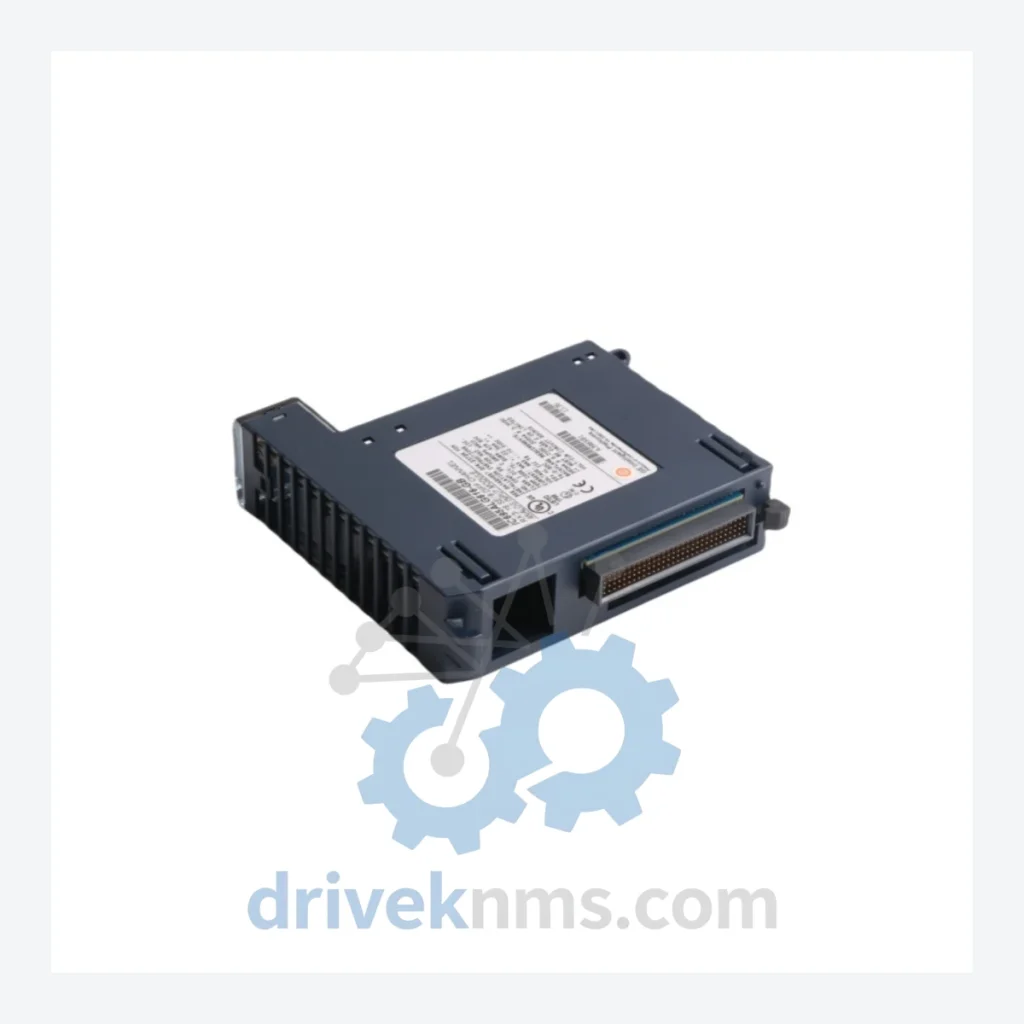

GE IC695ALG616 Analog Input Module – Obsolete PACSystems RX3i Spare Part

Technical Dossier

Product Details And Specifications

GE IC695ALG616 Analog Input Module – Obsolete PACSystems RX3i Spare Part

When a GE IC695ALG616 analog input module fails in an active production environment, the consequences extend far beyond the cost of the component itself. A full PACSystems RX3i platform migration — including new hardware, engineering hours, software re-licensing, I/O rewiring, and production downtime — routinely runs into the hundreds of thousands of dollars, and in continuous-process industries, the figure can exceed seven figures. DriveKNMS maintains verified stock of the IC695ALG616 specifically to give plant engineers and maintenance managers a direct alternative to that scenario. One spare module, sourced and validated correctly, can preserve years of operational continuity on an asset that has already been fully amortized.

Technical Specifications

Solving the Discontinued Hardware Crisis

The GE PACSystems RX3i platform has been the backbone of process control in power generation, water treatment, oil & gas, and discrete manufacturing for over two decades. The IC695ALG616 sits at a critical junction in these architectures: it is the primary interface between field-level analog instrumentation — pressure transmitters, flow meters, temperature sensors — and the RX3i CPU. There is no drop-in OEM substitute that preserves the existing backplane slot, wiring termination, and software tag mapping simultaneously.

Plant managers facing IC695ALG616 failure have three realistic options: source a verified spare, accept extended downtime while engineering a workaround module, or commit to a full platform migration. The first option costs a fraction of the other two. Facilities that have maintained a buffer stock of two to four IC695ALG616 units have consistently avoided unplanned shutdowns that, in regulated industries, also carry compliance and reporting obligations.

For systems running GE Proficy Machine Edition or Proficy HMI/SCADA CIMPLICITY, replacing the IC695ALG616 with a verified unit requires no software modification — the hardware reference and I/O variable mapping remain intact. This is the operational reality that makes sourcing this specific module, rather than engineering around it, the rational choice for any facility with a functioning RX3i installation.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

The decision to retire a PACSystems RX3i installation is rarely driven by the platform's technical limitations — it is driven by the inability to source replacement components. A structured spare parts strategy directly addresses this pressure and can defer a capital-intensive migration by five to ten years at a fraction of the replacement cost.

The following approach has been applied successfully in facilities across petrochemical, pharmaceutical, and heavy manufacturing sectors:

• Critical module inventory audit: Identify every module type in the RX3i rack that has no current OEM availability. The IC695ALG616 is a primary candidate. Maintain a minimum of two units per active rack configuration.
• Condition-based rotation: Place refurbished units into service and retain new-old-stock units as long-term reserves. This extends the effective service life of your existing stock without degrading your emergency buffer.
• Firmware version documentation: Record the firmware revision of every installed IC695ALG616. When sourcing replacements, specify the required firmware version to avoid compatibility issues with existing CPU firmware.
• Vendor qualification: Restrict procurement to suppliers who can provide test reports and traceability documentation. Counterfeit and non-functional modules are a documented risk in the obsolete parts market.
• Migration timeline planning: Use the extended operational window to plan a phased migration on your schedule, not under emergency conditions. A controlled transition preserves institutional knowledge and allows proper operator retraining.

The cost of maintaining a qualified spare parts buffer for an RX3i installation is measured in thousands of dollars. The cost of an unplanned migration under production pressure is measured in multiples of that. The arithmetic is straightforward.

Condition & Reliability Assurance

Every IC695ALG616 unit supplied by DriveKNMS passes a structured five-stage inspection protocol before dispatch:

1. Visual and mechanical inspection: Board-level examination for physical damage, pin deformation, and connector integrity. Units with any evidence of thermal stress or mechanical impact are rejected at this stage.
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are a primary failure mode in modules of this generation. Each unit is evaluated for capacitor condition; units showing measurable ESR degradation are either recapped with specification-matched components or removed from inventory.
3. Firmware version verification: The installed firmware revision is confirmed and documented. Customers requiring a specific firmware version for CPU compatibility can request this at the time of order.
4. Pin and connector corrosion inspection: Backplane connector pins are inspected under magnification for oxidation and corrosion. Affected pins are treated or the unit is rejected.
5. Functional power-on test: Where test infrastructure permits, modules are powered and channel response is verified against published specifications.

Units are classified as New Old Stock (NOS), Tested Refurbished, or Inspected Used, and this classification is stated explicitly on the invoice and shipping documentation.

Key Features for System Maintenance

• Drop-in replacement: The IC695ALG616 installs directly into any RX3i universal backplane slot without mechanical modification.
• No reprogramming required: Existing Proficy Machine Edition logic, I/O variable references, and HMI tag bindings remain valid. There is no engineering rework cost associated with a like-for-like module swap.
• Wiring compatibility: Terminal block wiring from the original installation transfers directly. No rewiring or re-termination is required.
• Avoids engineering reconstruction costs: A module-level replacement eliminates the need for system integrator engagement, software migration projects, and the associated validation and commissioning cycles that a platform change would require.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day warranty covering functional defects on all tested and refurbished units. New Old Stock units carry a 30-day inspection warranty. Warranty terms are confirmed in writing prior to shipment.

How do I confirm the unit is genuine and not counterfeit?
All units are sourced through documented supply chains. We provide date codes, serial number records where available, and test documentation. We do not source from unverified brokers or auction channels.

Should I purchase more than one unit?
For any active RX3i installation with IC695ALG616 modules, maintaining a minimum of two spare units is the standard recommendation. Given the declining availability of this part, procurement decisions made today will be more cost-effective than those made under failure conditions.

Can you source specific firmware versions?
In many cases, yes. Specify your CPU firmware revision and current installed module firmware at the time of inquiry and we will confirm compatibility before shipment.

What is the lead time?
In-stock units ship within 1–3 business days. For units requiring additional testing or configuration, lead time is confirmed at the time of order.
