GE IC695CHS012-BA Universal Backplane – Obsolete PACSystems RX3i Spare Part

Technical Dossier

Product Details And Specifications

GE IC695CHS012-BA Universal Backplane – Obsolete PACSystems RX3i Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

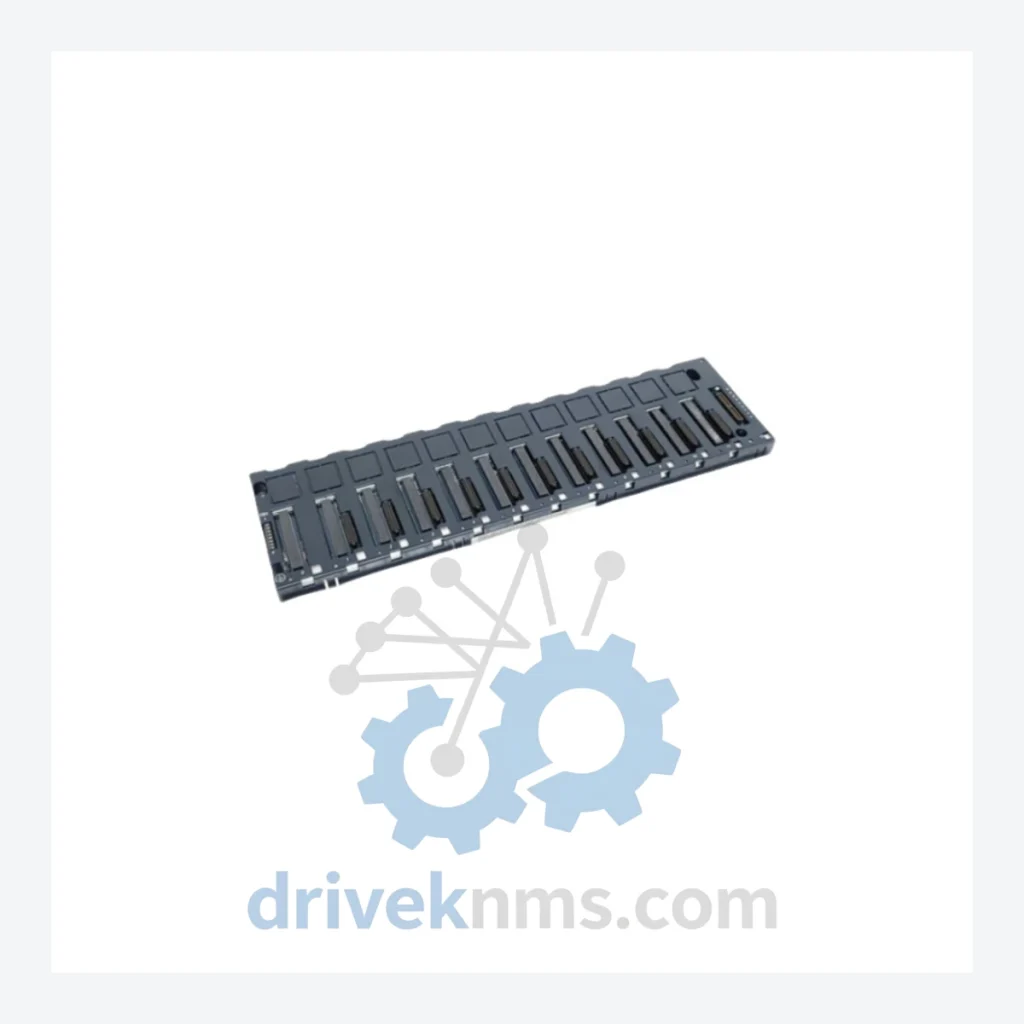

The GE PACSystems RX3i platform was the workhorse of process automation across petrochemical, power generation, water treatment, and discrete manufacturing sectors throughout the 2000s and 2010s. The IC695CHS012-BA 12-slot universal backplane is the physical foundation of any RX3i rack assembly — it carries the backplane bus that allows the CPU (such as the IC695CPE305 or IC695CPE330) to communicate with every installed I/O and specialty module.

GE's transition of the PACSystems product line to Emerson has effectively ended new production of legacy RX3i chassis hardware. Facilities that built their automation infrastructure around this platform now face a binary choice: source replacement hardware from the secondary market, or commit to a full platform migration. The migration path is not simply a hardware swap. It requires re-engineering of ladder logic or function block programs, reconfiguration of PROFIBUS or Ethernet I/P device networks, revalidation of process interlocks, and in regulated industries, a full change-control documentation cycle.

How to extend your PACSystems RX3i asset life by 5–10 years:

Condition & Reliability Assurance

Every IC695CHS012-BA unit supplied by DriveKNMS undergoes a structured 5-step inspection protocol before dispatch review. This process is designed specifically for legacy hardware where OEM support and factory testing are no longer available.

1. Visual and Mechanical Inspection: Full examination of the backplane PCB for physical damage, connector pin integrity, and rack guide rail condition. Units with bent or corroded backplane connectors are rejected at this stage.
2. Connector Pin Corrosion Assessment: The backplane edge connectors — the interface between the chassis bus and each installed module — are inspected under magnification for oxidation, pin deformation, and contamination. This is the most common failure mode in stored legacy backplanes.
3. Electrolytic Capacitor Condition Check: Where accessible, onboard capacitors are assessed for signs of electrolyte leakage or bulging, which indicate end-of-life condition and risk of in-service failure.
4. Slot Keying and Module Seating Verification: Each of the 12 module slots is tested for correct keying alignment and module retention force, ensuring that installed modules will seat and lock correctly in the field.
5. Functional Rack Assembly Test: Where test equipment permits, the backplane is assembled into a test rack with a compatible power supply and CPU to verify bus communication integrity prior to shipment.

Key Features for System Maintenance

• Drop-in replacement: The IC695CHS012-BA installs directly into any existing RX3i rack mounting position. No mechanical modification to the control panel or enclosure is required.
• No CPU reprogramming required: Replacing the chassis backplane does not alter the CPU memory or application program. The existing IC695CPE-series CPU retains its configuration and logic after reinstallation into a replacement chassis.
• No I/O reconfiguration: Module addressing and I/O configuration are stored in the CPU, not the backplane. A chassis swap does not require re-engineering of the I/O map or device network configuration.
• Avoids engineering rework costs: A direct chassis replacement eliminates the need for control system re-engineering, third-party integration work, or production requalification — costs that routinely exceed the value of the hardware itself by an order of magnitude.
• Compatible with full RX3i module range: The universal backplane bus supports the complete range of RX3i I/O, motion, communications, and specialty modules without hardware modification.

Q: How do I verify the unit is genuine and not a counterfeit?
A: All units are sourced through traceable supply channels. We provide documentation of unit origin upon request. Physical authenticity markers — including GE/Emerson part labeling, PCB revision markings, and date codes — are verified during our inspection process. We do not supply units where provenance cannot be established.

Q: Can this backplane be used with newer GE/Emerson PACSystems hardware?
A: The IC695CHS012-BA is specific to the PACSystems RX3i platform. Compatibility with RX3i-series CPUs, power supplies, and I/O modules is confirmed. It is not interchangeable with PACSystems RSTi-EP or other non-RX3i platform hardware.
