GE IS200 Series: Comprehensive Module Range and Technical Overview

The GE IS200 series constitutes the core I/O, control, and communication hardware platform for GE's Mark VI Turbine Control System and EX2100 Excitation Control System — two of the most widely deployed distributed control architectures in heavy industrial environments. Installed across gas turbine power plants, combined-cycle facilities, nuclear auxiliary systems, petrochemical refineries, and offshore platforms, the IS200 series represents a mature, field-proven hardware generation with an installed base spanning several hundred thousand units globally. Its modular VME-based backplane architecture allows mixed-function configurations within a single controller cabinet, making it the reference standard for turbine protection, excitation regulation, and process I/O in facilities where continuous uptime is non-negotiable.

The Evolution of IS200 Architecture

The IS200 series was introduced in the mid-1990s as the hardware backbone of GE's Mark VI control platform, succeeding the Mark V (IS200 predecessor boards used in TCCA/TCDB racks). The architecture is built around a triple-redundant TMR (Triple Modular Redundancy) topology for critical protection functions, with simplex configurations available for balance-of-plant applications. Early IS200 boards communicated via the IONet (a proprietary 10 Mbps Ethernet derivative); later revisions introduced compatibility with the IONET II and Ethernet-based UCSC/UCSC2 controllers. The series reached end-of-active-production around 2010–2015 as GE transitioned customers toward the Mark VIe platform (IS420 series), which uses a distributed I/O architecture over EGD (Ethernet Global Data) protocol. As of 2026, the IS200 series is in the sustained-support / lifecycle-extension phase: GE Energy no longer manufactures new units, but the installed base remains active in thousands of facilities with 10–20 year remaining operational horizons. Compatibility between IS200 revisions (REV A through REV F on most boards) requires careful cross-referencing of firmware versions and backplane slot assignments before substitution.

IS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced IS200 series modules. Each entry reflects the board's primary functional role within a Mark VI or EX2100 control cabinet.

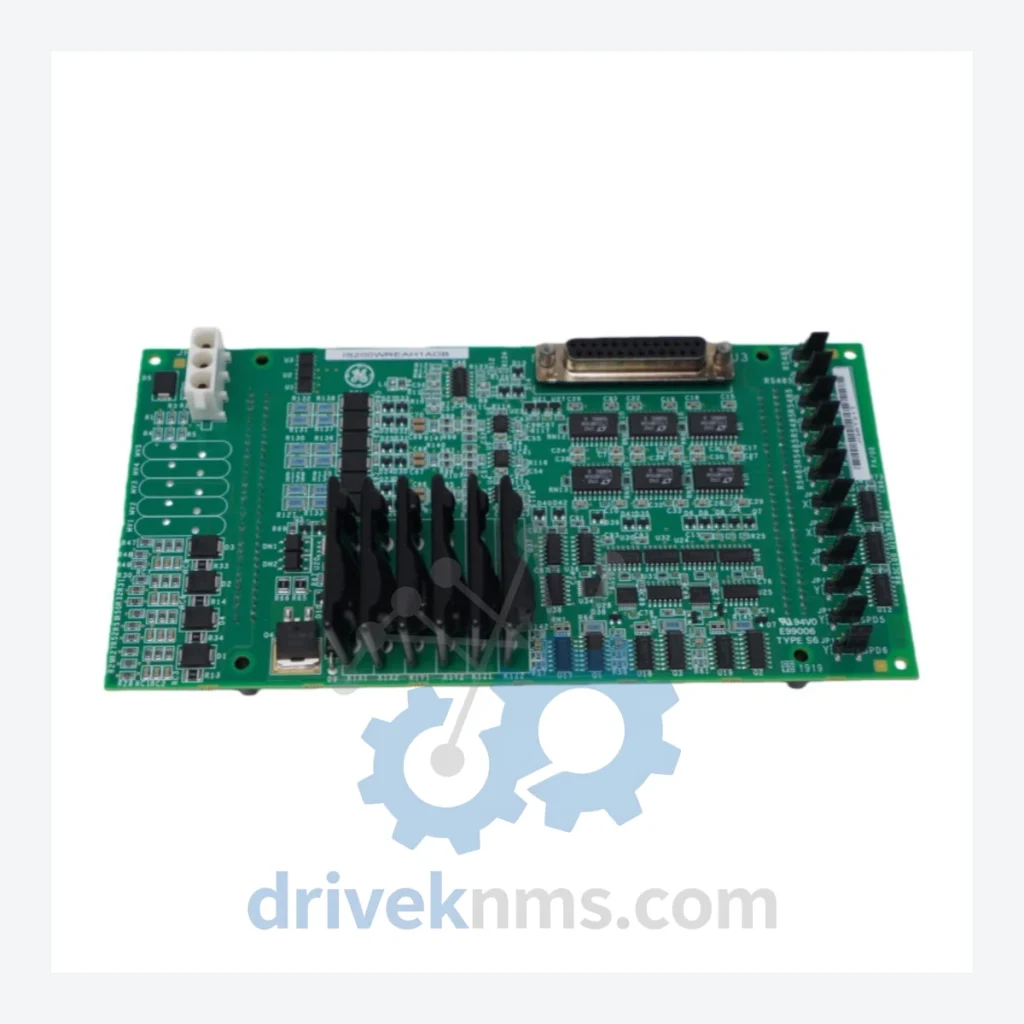

IS200WREAH1ABB: Trip terminal board; interfaces turbine protection relay outputs to the Mark VI TREG/TPRO modules via hardwired trip bus.
IS200TRLYH1B: Turbine protection relay output board; provides 16-channel relay outputs for trip and alarm functions in TMR configurations.
IS200TBAIH1C: Analog input terminal board; 16-channel thermocouple and RTD signal conditioning for turbine temperature monitoring.
IS200TBCIH1C: Contact input terminal board; 24 VDC discrete input acquisition for valve position and limit switch feedback.
IS200TBQCH1C: Speed/frequency input terminal board; processes magnetic pickup and proximity probe signals for turbine speed measurement.
IS200VTURH1B: Turbine control I/O board; integrates speed, temperature, and valve control I/O for single-shaft gas turbine applications.
IS200DSPXH1A: Digital signal processor board; executes real-time turbine protection algorithms within the VCMI controller frame.
IS200VCMIH1C: VME controller module interface board; primary CPU carrier for Mark VI simplex and TMR controller racks.
IS200ECTBH1A: Excitation control terminal board; interfaces EX2100 excitation regulator outputs to generator field and AVR circuits.
IS200EACFH1A: AC feedback input board for EX2100; measures generator terminal voltage and current for excitation regulation loops.
IS200EDCFH1A: DC feedback input board for EX2100; monitors field current and bridge voltage in static excitation systems.
IS200EPCTG1A: Gate pulse control board; generates firing pulses for SCR thyristor bridges in EX2100 excitation systems.
IS200STCIH1A: Steam turbine control I/O board; dedicated analog and discrete I/O for steam admission valve and extraction control.
IS200BICLH1A: Bus interface and clock board; manages IONet communication timing and synchronization across Mark VI controller racks.
IS200AEPCH1B: Analog output and protection coordination board; provides 4–20 mA outputs for valve positioner and actuator control loops.
IS200HFPGH1A: High-frequency pulse generator board; used in combustion dynamics monitoring and flame detector signal processing.
IS200TSVOH1A: Servo valve output board; drives electrohydraulic servo valves for turbine inlet and extraction valve positioning.

Sourcing Hard-to-Find & Obsolete IS200 Parts

DriveKNMS maintains a dedicated inventory program for IS200 series modules sourced from decommissioned Mark VI and EX2100 systems, controlled refurbishment programs, and verified surplus channels. Because GE no longer manufactures IS200 boards, procurement lead times through OEM channels can exceed 26 weeks — or result in outright no-quote responses for discontinued part numbers. DriveKNMS provides an alternative supply path with typical lead times of 3–10 business days for in-stock units. All sourced boards are cross-referenced against GE's IS200 revision compatibility matrix prior to dispatch. For facilities operating under long-term service agreements (LTSAs) or requiring multi-year spare parts kitting, DriveKNMS offers consignment stocking arrangements and bill-of-materials (BOM) fulfillment services. Customers are advised to provide the full part number including revision suffix (e.g., IS200WREAH1ABB) to ensure hardware and firmware compatibility with the target rack configuration.

Quality Control for the IS200 Range

IS200 series boards present specific test challenges due to their VME backplane bus architecture, multi-layer PCB construction, and mixed analog/digital signal domains. DriveKNMS applies a structured test protocol for each IS200 unit: (1) Visual inspection under 10× magnification for PCB trace damage, capacitor ESR degradation, and connector pin integrity; (2) Powered functional test using a dedicated Mark VI backplane test fixture that replicates the IONet communication environment and verifies board enumeration and I/O channel response; (3) For relay output boards (e.g., IS200TRLYH1B), individual relay coil resistance and contact closure verification across all 16 channels; (4) For analog I/O boards, calibration verification against NIST-traceable reference signals at 0%, 50%, and 100% of rated input range; (5) Burn-in cycle at 40°C for 24 hours to screen latent component failures prior to shipment. Each unit ships with a test report and is packaged in ESD-protective materials with desiccant.
