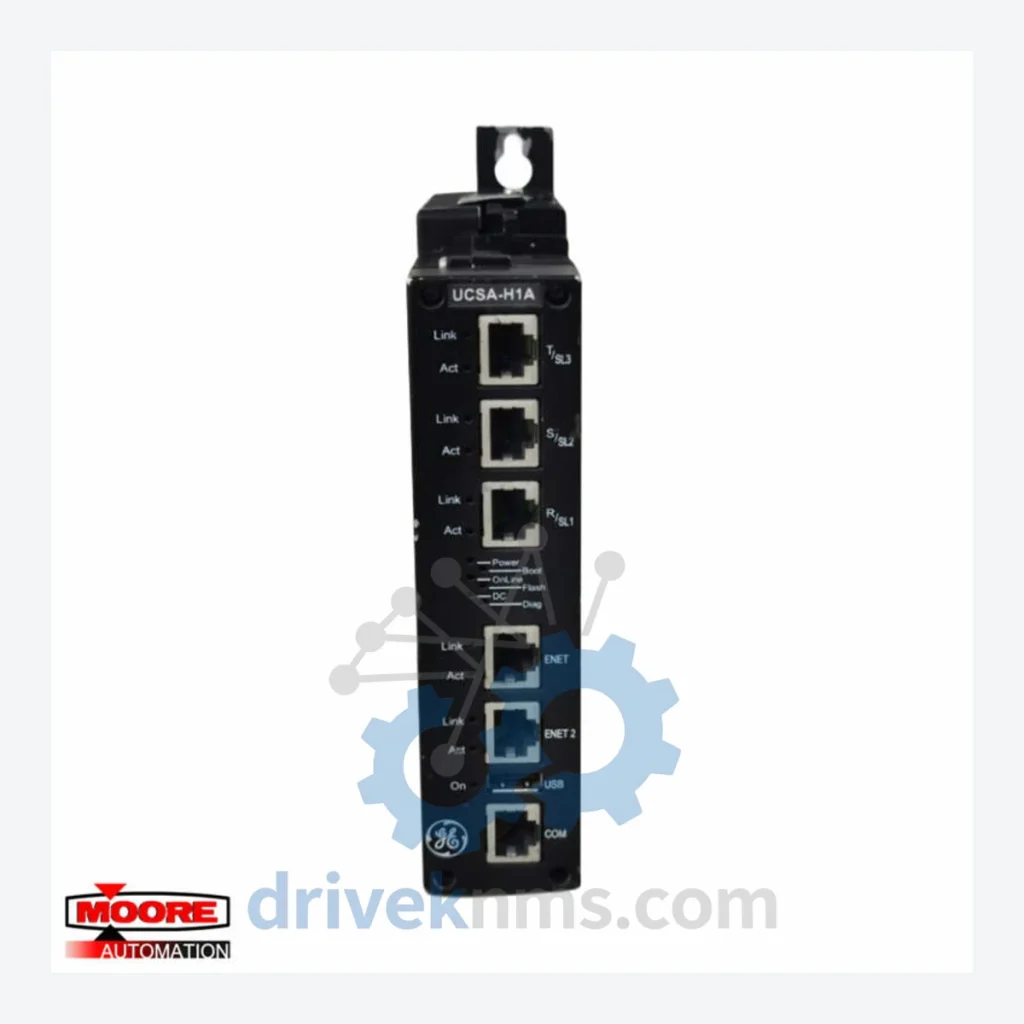

GE IS220 Modules – IS220PPRQH1A

Technical Dossier

Product Details And Specifications

GE IS220 Series Technical Notes

The GE IS220 series constitutes the primary I/O and processing module family for the GE Mark VIe distributed control system (DCS), deployed across heavy industrial sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and combined-cycle gas turbine plants. The Mark VIe platform, of which IS220 modules form the backbone, holds a dominant installed base in turbine control and critical process automation globally. These modules interface directly with the Mark VIe I/O pack architecture via the IONET or ENET communication backbone, providing deterministic real-time control with redundancy configurations up to TMR (Triple Modular Redundancy).

The Evolution of IS220 Architecture

The IS220 series was introduced as part of the Mark VIe control system generation, succeeding the Mark VI (IS200 series) platform. The architectural shift from Mark VI to Mark VIe brought a transition from VME-bus backplane topology to an Ethernet-based I/O network (IONet), enabling distributed I/O placement closer to field devices and reducing wiring infrastructure costs in large plant installations.

Early IS220 modules operated exclusively on the proprietary IONet protocol. Subsequent hardware revisions introduced dual-port Ethernet capability and enhanced diagnostics via the ToolboxST configuration environment. The series has reached maturity; GE (now part of GE Vernova / GE Gas Power) continues to support the Mark VIe platform under long-term service agreements, but new hardware development has shifted toward the Mark VIe-S and Mark VIeS compact variants. For plants operating IS220-based systems, lifecycle extension through certified spare parts procurement is the primary maintenance strategy.

Compatibility note: IS220 modules are not backward-compatible with Mark VI (IS200) backplanes. Firmware versions must be matched to the ToolboxST project revision. Mixed-revision deployments require validation against GE service bulletins.

IS220 Full Catalog & Functionalities (SKU List)

Analog Input (AI) Modules

• IS220PAICH1A: 16-channel analog input, 4–20 mA / 0–10 V, single-ended configuration
• IS220PAICH2A: 16-channel analog input, differential configuration, enhanced noise rejection for field environments
• IS220PRTDH1A: 8-channel RTD input module, supports PT100/PT1000, 3-wire and 4-wire configurations
• IS220PTCCH1A: 8-channel thermocouple input, supports J, K, T, E, R, S, B type thermocouples with CJC
• IS220PVIBH1A: Vibration monitoring input module, 4-channel, compatible with proximity probes and accelerometers per API 670

Analog Output (AO) Modules

• IS220PAOCH1A: 8-channel analog output, 4–20 mA, loop-powered, with open-loop detection
• IS220PSVOH1A: Servo valve output module, high-current drive for hydraulic actuator control in turbine governor applications

Digital Input (DI) Modules

• IS220PDIOH1A: 24-channel digital I/O module, configurable input/output per channel, 24 VDC logic
• IS220PDIOH2A: 24-channel digital I/O, enhanced version with individual channel diagnostics and short-circuit protection
• IS220PDIAH1A: 24-channel digital input, AC voltage sensing (120 VAC / 240 VAC), for field contact monitoring

Digital Output (DO) Modules

• IS220PSCNH1A: Solenoid driver output module, 16-channel, 24 VDC, with current monitoring per channel for valve position feedback

Communication & Network Modules

• IS220PPRQH1A: Processor/communication module, primary I/O pack controller, manages IONet communication and local I/O arbitration
• IS220PPROS1A: Redundant processor module for TMR configurations, synchronizes with primary IS220PPRQH1A in fault-tolerant setups
• IS220PUAAH1A: Universal analog adapter module, provides signal conditioning interface between field wiring and I/O pack modules

Specialty / Turbine Control Modules

• IS220PTURH1A: Turbine-specific I/O module, integrates speed sensing, flame detection, and trip relay outputs for gas turbine control
• IS220PSCNH1A: Speed control network interface, used in conjunction with PTURH1A for governor loop closure

Sourcing Hard-to-Find & Obsolete IS220 Parts

As the Mark VIe platform matures, procurement of IS220 modules through OEM channels becomes increasingly constrained. GE's standard parts availability windows for legacy I/O packs are subject to last-time-buy notifications, after which field replacements must be sourced from certified aftermarket suppliers.

Customers operating plants with IS220-based Mark VIe systems are advised to establish a strategic spare parts buffer covering: processor modules (PPRQH1A, PPROS1A), high-wear I/O modules (PAICH1A/2A, PDIOH1A/2A), and communication adapters. DriveKNMS can assist with bill-of-materials (BOM) analysis and recommended stocking levels based on installed module count and plant criticality classification.

Quality Control for the IS220 Range

IS220 modules incorporate complex multi-layer PCBs with high-density SMD components, FPGA-based I/O arbitration logic, and proprietary backplane connectors. Standard visual inspection and power-on testing are insufficient for this module class. DriveKNMS applies the following test protocol to all IS220 units:

• Backplane connector integrity check: pin continuity, insertion force measurement, and gold contact inspection under 10× magnification
• IONet communication validation: module is installed in a live Mark VIe test rack and polled via ToolboxST to confirm device enumeration and I/O channel response
• Analog channel calibration verification: all AI/AO channels are swept across the full input/output range and compared against factory tolerance specifications (±0.1% FS typical)
• Digital channel functional test: each DI/DO channel is exercised through a programmable load bank to verify switching thresholds and output drive capability
• Thermal soak: units are operated at 55°C ambient for 4 hours to screen for latent component failures
• Firmware revision audit: firmware version is read and logged; units with unsupported firmware versions are flagged and documented
