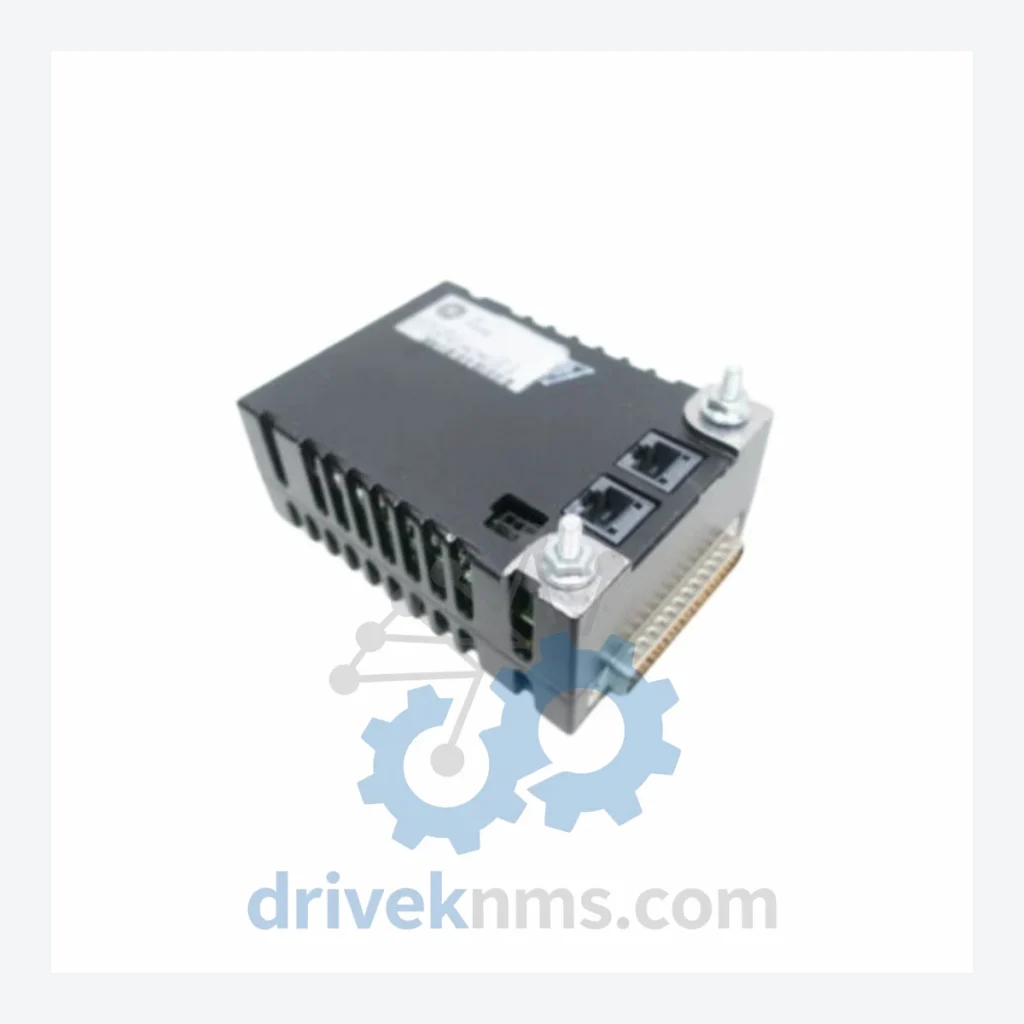

GE Mark VIe Modules: IS220PTURH1AD IS220PTURH1A RTD Input Module

Technical Dossier

Product Details And Specifications

GE Mark VIe Series Technical Notes

The GE Mark VIe turbine control system is one of the most widely deployed distributed control platforms in heavy industry globally. Installed across gas turbine power plants, combined-cycle facilities, nuclear auxiliary systems, petrochemical complexes, and offshore oil & gas platforms, the Mark VIe architecture represents GE's transition from the earlier Mark V and Mark VI platforms to a fully networked, IEC 61850-compatible control environment. The IS220PTURH1AD and its base revision IS220PTURH1A are RTD (Resistance Temperature Detector) input modules within the IS220 I/O family, designed for high-density temperature signal acquisition in turbine protection and monitoring loops.

The Evolution of Mark VIe Architecture

GE's turbine control lineage progressed through Mark I through Mark V (relay and early digital logic), then Mark VI (VME-based distributed I/O with IONET), and culminated in the Mark VIe platform introduced in the early 2000s. Mark VIe replaced the proprietary IONET with an Ethernet-based IONet using standard 100 Mbps infrastructure, enabling triple-redundant (TMR) or simplex configurations. The IS220 I/O module family was purpose-built for this architecture, replacing the IS200 series used in Mark VI. Backward compatibility between Mark VI and Mark VIe is limited to specific communication bridges; IS220 modules are not hot-swappable into IS200 slots without hardware and firmware reconfiguration. As of 2026, the Mark VIe platform is in its mature/sustaining lifecycle phase, with GE (now part of GE Vernova) continuing to supply spare parts and firmware support, though new installations increasingly migrate toward the Mark VIe-based Mark VIeS or third-party DCS alternatives. Long-term maintenance support for IS220 modules remains critical for operators with 15–25 year plant lifecycles.

Mark VIe Full Catalog & Functionalities (SKU List)

The following IS220 series modules represent the core spare parts inventory for GE Mark VIe systems. Each module is specific to the Mark VIe I/O terminal board and VCMI/VCRC controller architecture.

IS220PTURH1AD: RTD input module, high-density, revision D – primary turbine temperature acquisition
IS220PTURH1A: RTD input module, base revision A – legacy-compatible temperature input for Mark VIe
IS220PTCCH1A: Thermocouple input module – multi-channel TC signal conditioning for exhaust temp monitoring
IS220PAICH1A: Analog input module – 16-channel 4–20 mA / 0–10 V process signal acquisition
IS220PAOAH1A: Analog output module – 8-channel analog command output for valve and actuator control
IS220PDIAH1A: Digital input module – 24 VDC discrete input for limit switches and proximity sensors
IS220PDOAH1A: Digital output module – relay and transistor discrete output for solenoid and alarm circuits
IS220PSVOH1A: Servo output module – high-current servo valve drive for fuel and IGV control loops
IS220PPROH1A: Pulse rate / speed input module – magnetic pickup and proximity probe interface for shaft speed
IS220PVIBH1A: Vibration monitor input module – Bently Nevada-compatible proximity probe signal interface
IS220PSCAH1A: Serial communication adapter – RS-232/RS-485 legacy device interface for Mark VIe I/O bus
IS220PPDAH1A: Power distribution module – 28 VDC I/O bus power conditioning and distribution
IS220PTBAS1A: Terminal board assembly – passive wiring termination board for IS220 I/O modules
IS220VCMIH2A: VME controller module – primary CPU and IONet communication controller for Mark VIe rack
IS220VCRCH1A: Redundancy controller module – TMR voting and cross-channel communication for triple-redundant systems
IS220PFDEH1A: Flame detector input module – UV/IR flame scanner signal conditioning for combustion monitoring

Quality Control for the Mark VIe Range

IS220 series modules incorporate complex backplane connectors and dual-port IONet Ethernet interfaces that require specialized test procedures beyond standard I/O verification. DriveKNMS applies the following QC protocol to all Mark VIe modules prior to dispatch: (1) Visual inspection of J1/J2 backplane connector pins for corrosion, bent contacts, and PCB delamination. (2) Powered bench test using a GE Mark VIe rack simulator to verify IONet enumeration and module ID handshake. (3) Channel-level functional test: for IS220PTURH1AD, all RTD input channels are verified against a calibrated resistance decade box across the full Pt100 range (0–400 Ω). (4) Firmware revision verification and logging against GE Mark VIe compatibility matrix. (5) Final burn-in at operating temperature for 4 hours with continuous channel monitoring. Test records are provided with each unit on request.
