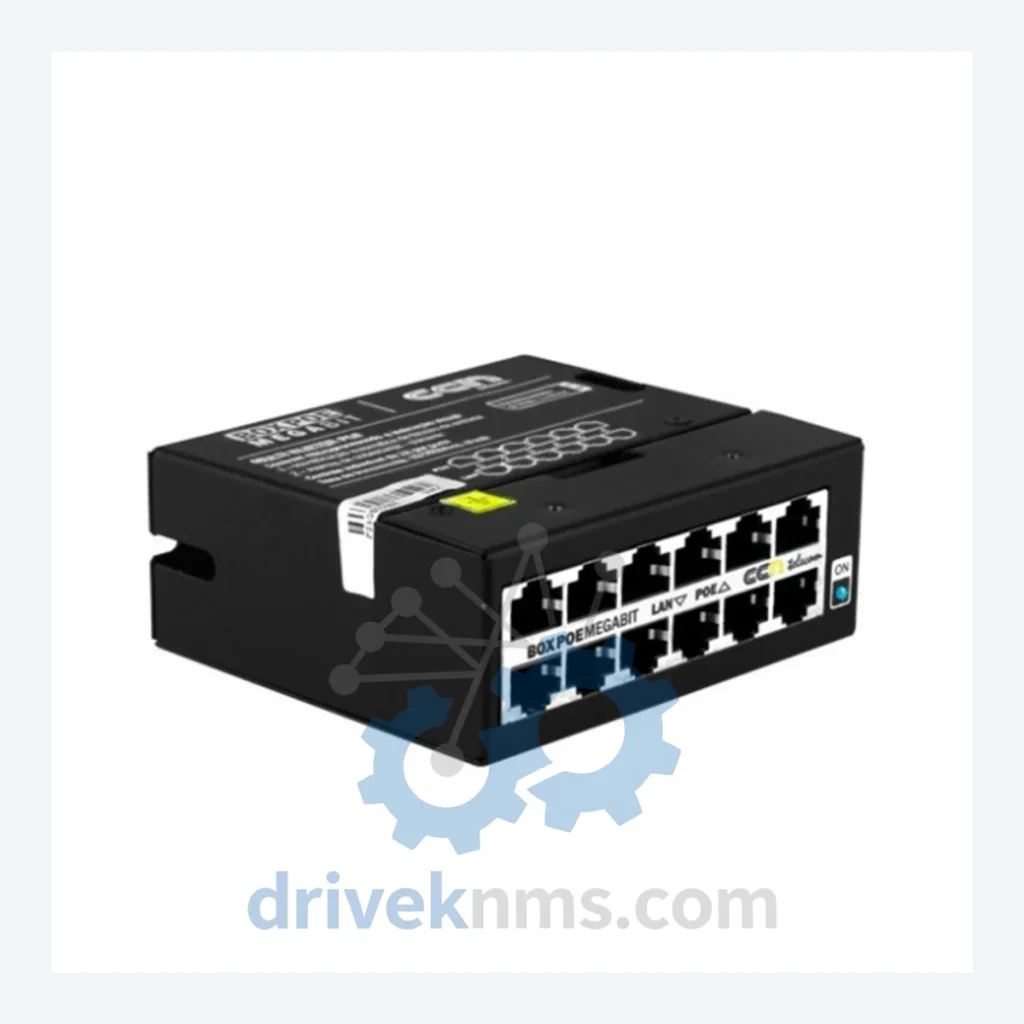

GE N-Tron IS420ESWAH3A Industrial Ethernet Switch

Technical Dossier

Product Details And Specifications

GE N-Tron Series Technical Notes

The GE N-Tron industrial Ethernet switch series occupies a critical position in global heavy-industry automation infrastructure. Deployed across petrochemical refineries, nuclear power generation facilities, offshore oil platforms, and large-scale chemical processing plants, N-Tron switches are engineered to sustain deterministic network communication in environments where commercial-grade networking hardware fails. Their wide operating temperature range (typically -40°C to +85°C), DIN-rail mounting form factor, and compliance with IEC 61850 substation automation standards have made them a default specification in SCADA, DCS, and safety-instrumented system (SIS) network architectures worldwide. The IS420ESWAH3A is a managed industrial Ethernet switch module within GE's Automation & Controls portfolio, designed for integration into GE Mark VIe and IS420 series control system backplanes.

The Evolution of N-Tron Architecture

N-Tron Technology was founded in 1999 and established early dominance in ruggedized industrial Ethernet switching before being acquired by Red Lion Controls in 2011, which was subsequently integrated into GE's industrial networking portfolio. The architectural evolution of the N-Tron line tracks directly with the progression of industrial Ethernet standards:

Generation 1 (2000–2005): Unmanaged 10/100BASE-TX switches (100-series, 200-series) with fixed copper ports. No VLAN, no RSTP. Designed for point-to-point device-level networking in discrete manufacturing.

Generation 2 (2005–2010): Introduction of managed switching (700-series, 708M, 716M) with RSTP/MSTP redundancy, IGMP snooping for multicast control, and fiber uplink options (multimode and single-mode SFP). This generation became the backbone of process-industry SCADA rings.

Generation 3 (2010–2016): N-Ring proprietary redundancy protocol (sub-30ms recovery), N-View network management software integration, and expanded port density (up to 24 ports). Models such as the 716FX2 and 7506GX2 addressed fiber backbone requirements in substation automation.

IS420 Integration Era (2012–present): The IS420ESWAH3A and related IS420-prefix modules represent GE's integration of N-Tron switching technology directly into the Mark VIe turbine control system architecture. These modules communicate over the IONet (I/O Network) backplane and are not standalone switches — they are embedded network infrastructure components within a GE control system chassis. Compatibility is strictly tied to Mark VIe firmware revisions; substitution with non-GE switching hardware requires engineering validation.

N-Tron Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the GE N-Tron and IS420 industrial Ethernet switch ecosystem. Each entry reflects a distinct hardware configuration.

IS420ESWAH3A: Mark VIe embedded managed Ethernet switch, 3-port, IONet backplane interface, RSTP support
IS420ESWBH1A: Mark VIe embedded switch module, variant B configuration, single uplink, backplane-integrated
IS420ESWCH1A: Mark VIe Ethernet switch, C-variant, enhanced port isolation for SIS network segregation
IS420UCVEH1A: Mark VIe UCV Ethernet hub module, unmanaged, used in legacy IONet segments
N-TRON 104TX: Unmanaged 4-port 10/100BASE-TX DIN-rail switch, -40°C to +85°C, no configuration required
N-TRON 108TX: Unmanaged 8-port 10/100BASE-TX, extended temperature, standard DIN-rail form factor
N-TRON 116TX: Unmanaged 16-port 10/100BASE-TX, high-density device-level networking
N-TRON 708M: Managed 8-port 10/100BASE-TX with RSTP, IGMP snooping, N-Ring support, web/SNMP management
N-TRON 716M: Managed 16-port 10/100BASE-TX, full N-Ring redundancy, VLAN, QoS, SNMP v1/v2c/v3
N-TRON 708FX2: Managed 6-port copper + 2-port 100BASE-FX multimode fiber, RSTP, N-Ring, DIN-rail
N-TRON 716FX2: Managed 14-port copper + 2-port fiber uplink, substation-grade, IEC 61850 compatible
N-TRON 7506GX2: Managed 4-port 10/100/1000BASE-T + 2-port Gigabit SFP, fiber backbone aggregation switch
N-TRON 7010TX: Managed 8-port 10/100BASE-TX + 2-port Gigabit combo, advanced VLAN, LACP, ERPS
N-TRON 9000: Managed chassis-based modular switch, up to 24 ports, hot-swap modules, enterprise-class redundancy
N-TRON 9006TX2: 9000-series line card, 6-port 10/100BASE-TX + 2-port Gigabit SFP uplink module
N-TRON 9002SFP: 9000-series dual Gigabit SFP uplink module, single-mode or multimode fiber
N-TRON 302-SFPT: Unmanaged 2-port 10/100BASE-TX + 1-port SFP, compact media converter/switch hybrid

Sourcing Hard-to-Find & Obsolete N-Tron Parts

DriveKNMS sources IS420ESWAH3A and related IS420-prefix modules through a combination of verified surplus inventory, decommissioned plant buybacks, and manufacturer-authorized refurbishment channels. All units are serialized and cross-referenced against GE's known production runs to exclude counterfeit or remarked hardware — a documented risk in the industrial automation spare parts market.

For end-users operating Mark VIe systems beyond the original 20-year design life, DriveKNMS provides lifecycle extension support including: identification of functional equivalents within the IS420 module family, documentation of firmware compatibility matrices, and coordination with GE Vernova service teams where applicable. Customers with multi-unit requirements or bill-of-materials (BOM) sourcing needs are encouraged to submit complete lists for consolidated quotation.

Quality Control for the N-Tron Range

IS420-series modules present specific test challenges due to their backplane-integrated architecture. Unlike standalone switches that can be bench-tested with standard Ethernet test equipment, IS420ESWAH3A units require a compatible Mark VIe chassis and IONet infrastructure to perform full functional validation. DriveKNMS employs the following verification protocol for this module family:

Visual Inspection: Component-level examination for capacitor bulge, PCB delamination, corrosion on backplane connector pins, and evidence of thermal stress on power regulation circuits.

Backplane Interface Test: Module is seated in a test chassis running a validated Mark VIe firmware version. IONet communication is verified via GE Toolbox software, confirming module enumeration, port status reporting, and alarm-free initialization.

Port-Level Ethernet Validation: Each active Ethernet port is tested for 10/100 autonegotiation, link integrity, and frame forwarding using a calibrated network analyzer. RSTP topology participation is verified in a multi-switch ring configuration.

Thermal Cycling: Units sourced from field-decommissioned equipment undergo accelerated thermal cycling (0°C to +70°C, 10 cycles) prior to release, to surface latent failures in solder joints and electrolytic components.
