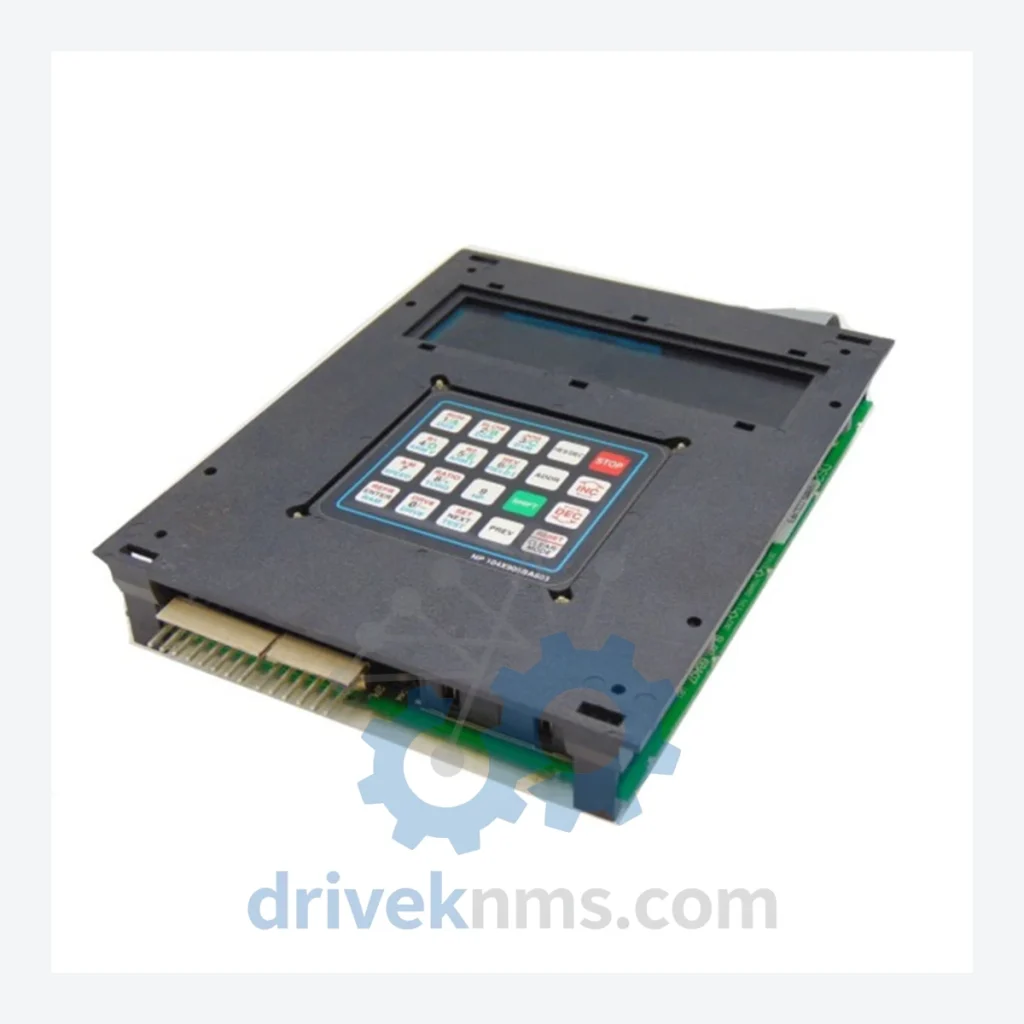

GE NP 104X905BA603 Keypad Panel – Obsolete Operator Interface Spare Part

Technical Dossier

Product Details And Specifications

GE NP 104X905BA603 Keypad Panel – Obsolete Operator Interface Spare Part

When a keypad panel fails on a legacy GE control system, the consequences extend far beyond a single component. The NP 104X905BA603 is a discontinued operator interface panel used in GE's industrial automation platforms. Its failure can render an entire control station inoperable — halting production lines that may cost tens of thousands of dollars per hour in downtime. For facilities that have not budgeted for a full system migration, sourcing this exact part is not a convenience; it is the only viable path to restoring operations without committing to a capital expenditure that can reach seven figures.

DriveKNMS maintains verified stock of hard-to-find GE components. The NP 104X905BA603 is one of those parts that does not appear on standard distributor shelves. Every unit we hold has been sourced, inspected, and documented — available for immediate dispatch to facilities that cannot afford to wait.

Technical Specifications

Note: Electrical parameters not published here to prevent misapplication. Contact our technical team for specification verification against your system revision.

Solving the Discontinued Hardware Crisis

GE's industrial automation product lines — including operator interface panels in the NP series — have reached end-of-life status. OEM support has been withdrawn, and authorized distributors no longer carry replacement stock. For plant managers operating facilities built around these platforms, this creates a structural vulnerability: a single failed keypad panel can take down an entire operator station, and there is no direct modern substitute that installs without engineering rework.

The cost of that rework is rarely trivial. Replacing a legacy GE control station with a current-generation HMI system typically involves hardware procurement, software licensing, PLC reprogramming, I/O remapping, and operator retraining. Conservative estimates for a single station replacement run from $80,000 to $250,000 USD, depending on system complexity and integration depth. For multi-station facilities, the figure multiplies accordingly.

Sourcing a verified NP 104X905BA603 from existing stock eliminates that expenditure entirely — for as long as the replacement part holds. A well-maintained spare, installed correctly, can extend the operational life of the affected station by five to ten years. That window provides time for planned, budgeted migration rather than emergency capital deployment.

This is the core logic behind strategic spare parts procurement for legacy automation assets: the cost of the part is negligible relative to the cost of the system it protects.

Condition & Reliability Assurance

Discontinued parts carry age-related risks that new production components do not. Our QA process for the NP 104X905BA603 addresses the failure modes most commonly associated with long-stored or previously installed operator interface panels:

• Step 1 – Visual and Mechanical Inspection: Physical examination of housing integrity, keypad membrane condition, connector pin alignment, and label legibility.
• Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the leading cause of latent failure in stored electronics. Units are evaluated for capacitor bulge, leakage, and ESR deviation where accessible.
• Step 3 – Firmware Version Verification: Where applicable, firmware revision is documented and cross-referenced against known compatibility requirements for the target system.
• Step 4 – Pin and Contact Corrosion Check: All connector interfaces are inspected under magnification for oxidation, corrosion, and mechanical deformation that could cause intermittent contact failure.
• Step 5 – Functional Verification: Units are bench-tested where test fixtures are available. Condition grade (New Old Stock, Tested Refurbished, or As-Removed) is declared on the accompanying documentation.

Condition grade and test results are provided in writing with each shipment. No unit leaves our facility without a documented inspection record.

Key Features for System Maintenance

• Drop-in replacement: The NP 104X905BA603 installs directly into the existing panel cutout and connector interface. No mechanical modification required.
• No reprogramming required: Operator interface panels of this type retain their configuration in the host controller. Swapping the panel does not require PLC or HMI software changes in standard installations.
• Avoids engineering rework costs: A direct spare eliminates the need for system integrator involvement, reducing the total cost of repair to the part price plus technician labor for physical installation.
• Preserves validated system configuration: Facilities operating under regulatory validation (FDA, GMP, ISO) benefit from maintaining the existing hardware configuration, avoiding the revalidation burden that accompanies system upgrades.
• Supports long-term asset protection strategy: Holding one or two units in reserve provides insurance against future failures without committing to system replacement on an emergency timeline.

FAQ

What warranty applies to an obsolete part like the NP 104X905BA603?
We provide a 90-day warranty against defects in materials and workmanship for all tested and refurbished units. New Old Stock units are sold with a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of sale.

How do I know the unit is genuine and not counterfeit?
All GE parts we supply are sourced from documented industrial decommissions, authorized surplus channels, or verified OEM overstock. Each unit is accompanied by sourcing documentation. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any system where this panel is a single point of failure, holding at least one additional unit in reserve is a sound risk management decision. Lead times on obsolete parts are unpredictable — stock that exists today may not be available in six months. Facilities with multiple identical stations should consider stocking proportionally.

Can you verify compatibility with my specific system revision before I order?
Yes. Provide your system model, revision level, and existing panel part number. Our technical team will confirm compatibility before the order is placed.

What is the lead time?
In-stock units ship within 1–3 business days of order confirmation. Lead time for sourced units varies and will be quoted individually.
