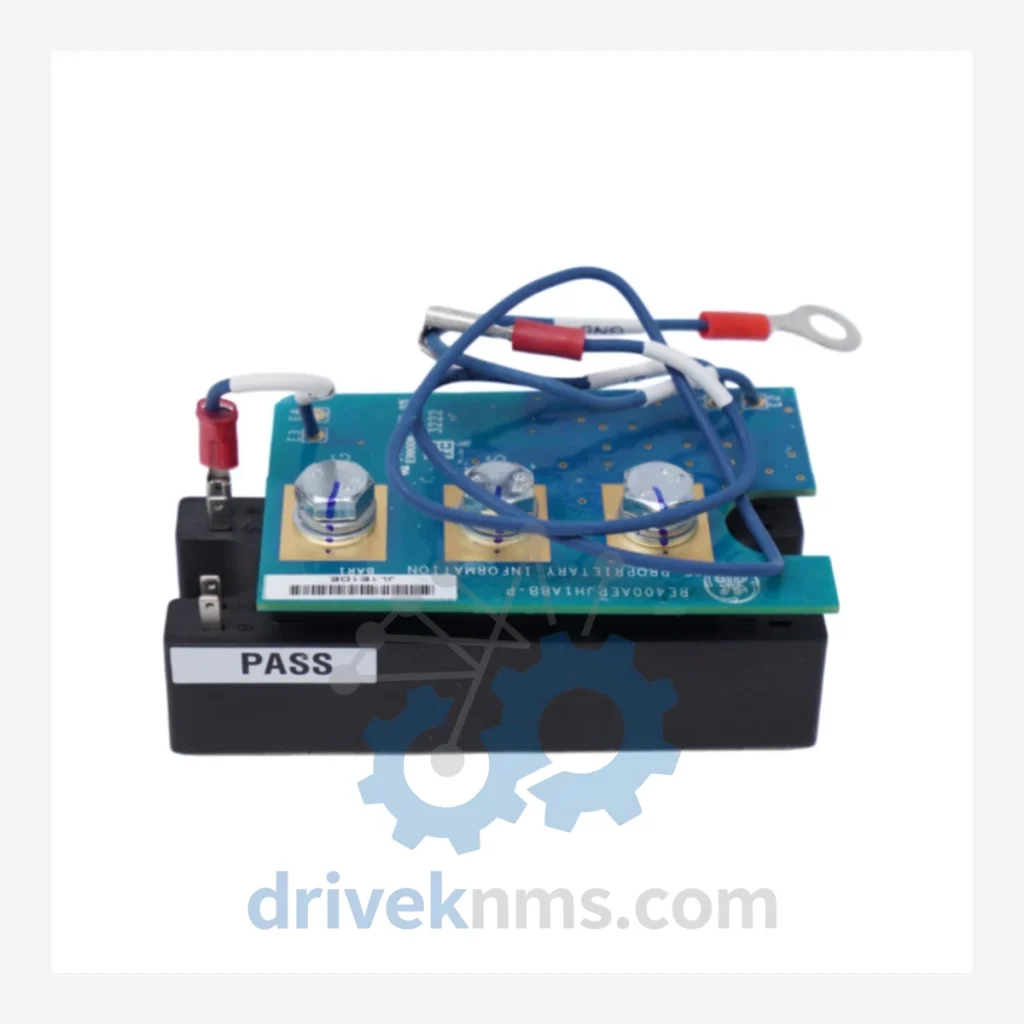

GE RE421REPAH1APR4 Thyristor Module – Redundant EX2100 Excitation Control Series

Technical Dossier

Product Details And Specifications

GE RE421REPAH1APR4 Thyristor Module – Redundant EX2100 Excitation Control Series Platform

The GE RE421REPAH1APR4 is a high-reliability thyristor (Silicon Controlled Rectifier, SCR) power conversion module engineered for deployment within GE's EX2100 Excitation Control System. Operating at the core of the AC/DC power conversion stage, this module governs the controlled rectification of AC supply into regulated DC field current for synchronous generators and large rotating machines. Its role within the excitation chain is critical: it directly determines the precision of reactive power (VAR) control, terminal voltage regulation, and power system stabilization (PSS) response — all foundational to grid-connected generator performance in compliance with IEEE 421.5 and IEC 60034-16 standards.

The RE421REPAH1APR4 is designed for redundant bridge configurations within the EX2100 platform, enabling continuous operation under single-device fault conditions without interrupting field current supply. This architecture aligns with IEC 61508 functional safety principles for high-availability power electronics, and supports SIL 2 system-level integrity when integrated with GE's Mark VI or Mark VIe turbine control infrastructure. Its compatibility with GE's broader IS200 / IS215 I/O module ecosystem ensures seamless integration into existing distributed control system (DCS) architectures across power generation and heavy industrial facilities.

Technical Specifications

Specifications are for reference only, subject to official datasheet. Please verify parameters against your system documentation before installation.

Technical Architecture & Design Principles

The RE421REPAH1APR4 implements a fully controlled three-phase thyristor bridge topology, where six SCR devices are arranged in a 3-phase full-wave configuration to convert AC excitation transformer output into precisely regulated DC field voltage. Gate firing angle (α) is modulated by the EX2100 controller's digital firing pulse generator, enabling sub-cycle response to voltage regulation commands — a critical requirement for power system stabilizer (PSS) interaction and transient stability support.

Redundant Architecture & Fault Isolation: The "REP" designation in the part number indicates a redundant bridge assembly. In a dual-bridge redundant configuration, both bridges operate in parallel under normal conditions. Upon detection of a thyristor open-circuit or short-circuit fault — identified via continuous current monitoring and gate pulse feedback — the faulted bridge is isolated within milliseconds, and the healthy bridge assumes full load without interruption. This Fault Detection & Isolation (FDI) mechanism eliminates single points of failure in the excitation power path.

Online Diagnostics: The module supports continuous self-monitoring of gate drive integrity, junction temperature (via thermal sensors), and DC output current balance between redundant bridges. Diagnostic data is reported to the EX2100 controller via the backplane communication bus, enabling predictive maintenance alerts and integration with plant-level asset management systems (AMS).

SIS Integration & IEC 61511 Compliance: When deployed within a Safety Instrumented System (SIS) architecture, the EX2100 excitation system — including the RE421REPAH1APR4 — contributes to generator protection Safety Instrumented Functions (SIFs) such as loss-of-excitation (LOE) protection and over-excitation limiting (OEL). The redundant architecture supports IEC 61511 SIL 2 system-level requirements by reducing the probability of dangerous failure on demand (PFDavg). MTBF values exceeding 100,000 hours (ref.) directly support high system availability (A >99.9%) calculations in functional safety assessments.

Industrial Applications & System Context

The GE RE421REPAH1APR4 is deployed across a broad spectrum of power generation and heavy industrial environments where generator excitation reliability is non-negotiable:

• DCS Architecture: Integrated as the power output stage of the EX2100 excitation controller, with field current feedback routed to the Mark VI / Mark VIe DCS for closed-loop AVR (Automatic Voltage Regulator) control. Data flows from thyristor bridge current transducers → EX2100 I/O modules → IONet communication bus → Mark VI controller → SCADA historian.
• ESD / F&G Systems: Participates in Emergency Shutdown (ESD) interlocks via the generator protection relay (e.g., GE Multilin 489/869) — upon ESD trip signal, the EX2100 executes a controlled field suppression sequence through the thyristor bridge, preventing generator overvoltage during trip events.
• SCADA Integration: Excitation system status, bridge fault alarms, and field current measurements are transmitted via Modbus TCP or DNP3 to plant SCADA systems, enabling remote monitoring and alarm management.
• Turbine-Generator Control: In combined-cycle and simple-cycle gas turbine applications, the RE421REPAH1APR4 must respond to AVR step changes within <100ms to support grid code compliance (e.g., NERC PRC-019) during voltage disturbances.
• Typical Project Environments: Petroleum refinery captive power plants, LNG liquefaction facilities, nuclear power station auxiliary generators, offshore platform power management systems, and utility-scale thermal power stations.
• Functional Safety Standards: IEC 61511 (functional safety for process industry SIS), IEC 61508 (functional safety of E/E/PE safety-related systems), IEEE 421.5 (recommended practice for excitation system models).

System Integration & Compatible Parts

The RE421REPAH1APR4 is designed for integration within the GE EX2100 excitation cabinet ecosystem. Engineers should verify the following compatibility matrix against their specific system revision before ordering:

• Chassis / Cabinet: GE EX2100 excitation panel (standard and redundant configurations)
• Companion Thyristor Modules: RE421REPAH1APR4 (redundant pair), RE421 series variants
• Excitation Transformer: Application-specific; verify kVA rating and secondary voltage against bridge rating
• Gate Drive / Firing Board: GE IS200 series firing pulse generator boards (verify revision compatibility)
• Controller Interface: GE Mark VI (IS200 / IS215 I/O modules), Mark VIe (VCMI / VTUR boards)
• Power Supply Modules: EX2100 internal DC power supply (verify voltage rail compatibility)
• Firmware Compatibility: Confirm EX2100 software revision and Mark VI application code version with GE service documentation before replacement
• Cross-Reference: Contact DriveKNMS for cross-reference to equivalent thyristor modules from Basler Electric, ABB UNITROL, or Siemens THYRIPOL series

Browse all GE products at DriveKNMS →

Every GE RE421REPAH1APR4 unit processed by DriveKNMS undergoes a rigorous 5-step quality assurance protocol before dispatch:

1. Visual Inspection: Physical examination for mechanical damage, corrosion, burn marks, and counterfeit indicators. Verification of OEM labeling, date codes, and part number markings against GE documentation.
2. Power-On Functional Test: Controlled energization to verify gate trigger response, SCR forward/reverse blocking characteristics, and DC output behavior under simulated load conditions.
3. Part Number & Revision Verification: Confirmation of firmware version (where applicable), hardware revision code, and system compatibility markings against the customer's specified system revision.
4. ESD-Safe Packaging: Anti-static shielding bags, foam-lined rigid packaging, and moisture barrier protection — compliant with ANSI/ESD S20.20 handling standards for sensitive power electronics.
5. 12-Month Functional Warranty: All units carry a 12-month warranty covering functional defects under normal operating conditions. Warranty claims supported by DriveKNMS engineering team.

Global Logistics: Worldwide express shipping via FedEx / DHL / UPS with real-time tracking numbers provided upon dispatch. Export documentation (commercial invoice, packing list, COO) included for customs clearance.

Technical Support from DriveKNMS

• ✅ Selection & Compatibility Verification: Our engineers review your system architecture and confirm the correct RE421 variant for your EX2100 configuration
• ✅ Cross-Reference Service: Identification of equivalent or alternative thyristor modules across GE, ABB, Siemens, and Basler Electric product lines
• ✅ Firmware & Revision Confirmation: Assistance verifying hardware revision codes and software compatibility with your Mark VI / Mark VIe system version
• ✅ Test Reports & Inspection Certificates: Functional test reports and inspection certificates available upon request for critical applications
• ✅ Obsolescence & EOL Solutions: Technical evaluation and recommendation of approved replacement modules for discontinued GE excitation components
• ✅ 24/7 WhatsApp Technical Support: Real-time engineering consultation via WhatsApp for urgent operational requirements

Frequently Asked Questions

Q1: What communication protocols does the RE421REPAH1APR4 support?
As a power conversion module, the RE421REPAH1APR4 interfaces with the EX2100 controller via GE's proprietary backplane bus rather than field-level protocols such as HART or Modbus. Higher-level communication (Modbus TCP, DNP3, OPC-UA) is handled by the EX2100 controller's communication interface boards. Contact us to confirm your specific system's communication architecture.

Q3: Are refurbished units subjected to SIL-relevant functional testing?
Yes. All units undergo power-on functional testing including SCR gate trigger verification and output characteristic testing. For applications requiring documented SIL compliance evidence, we can provide inspection certificates and test reports. Note that SIL certification of the complete safety function must be validated at the system level per IEC 61511 requirements.
