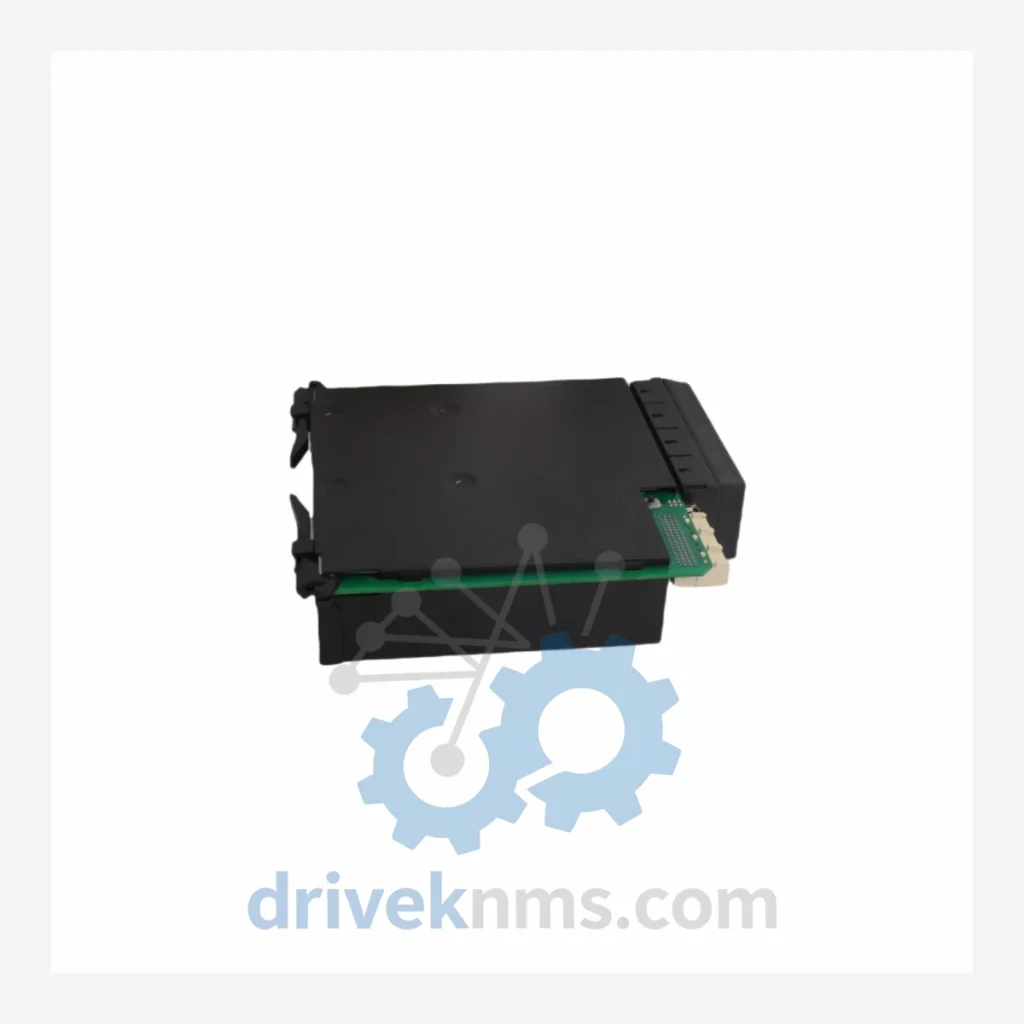

GE UR8LV CT/VT Module – Obsolete UR Series Spare Part

When a CT/VT input module fails inside a GE UR Series protection relay, the consequences extend far beyond a single device. The UR platform — deployed across substations, generation facilities, and industrial switchgear worldwide — is deeply embedded in protection schemes that took years of engineering to commission. A single unavailable module does not just halt one relay; it can force a full protection system review, trigger mandatory outage extensions, and in the worst cases, compel a complete IED replacement program costing hundreds of thousands to millions of dollars in engineering, hardware, and lost production time.

The GE UR8LV is a current transformer (CT) and voltage transformer (VT) input module designed for the UR Series modular relay chassis. As GE Grid Solutions has progressively discontinued legacy UR platform hardware, sourcing genuine replacement modules through standard distribution channels has become increasingly difficult. DriveKNMS maintains RFQ-reviewed sourcing status of the UR8LV for facilities that cannot afford to wait.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (CT input range, VT input range, burden ratings) vary by chassis configuration. Confirmed specifications are provided upon request based on your relay model and firmware version. No parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The GE UR Series was engineered as a long-service-life platform, and many facilities commissioned these relays in the late 1990s through the 2010s with the expectation of 20–30 year operational lifespans. The reality is that GE's hardware EOL cycle has outpaced the retirement schedules of the substations and plants these relays protect.

The UR8LV CT/VT module sits at the front end of the relay's measurement chain. It conditions analog signals from current and voltage transformers before they reach the DSP core. Without a functioning CT/VT module, the relay cannot perform its fundamental protection functions — overcurrent, differential, distance, or frequency protection — regardless of how healthy the rest of the chassis is. This is not a peripheral component. It is load-bearing to the relay's entire operating logic.

Facilities running GE UR-based protection schemes face a hard choice when this module fails: source a replacement and restore the existing system, or embark on a full relay replacement project. The latter involves new IED procurement, protection setting recalculation, FAT/SAT testing, SCADA integration updates, and commissioning — a process that routinely runs 6–18 months and carries six-figure costs even for a single bay. A verified spare UR8LV module eliminates that path entirely.

How to Extend Your UR Series System Life by 5–10 Years: A Maintenance Strategy for Plant Management

For operations and maintenance managers facing pressure to retire aging UR-based protection systems, the financial case for continued maintenance is straightforward when spare parts remain available. The following strategy has been applied successfully across power utilities and industrial facilities to defer costly system replacements:

1. Module-Level Spare Inventory: Identify the specific module types installed across your UR chassis fleet (CT/VT, AC, DC, CPU, communications). Maintain at least one spare of each critical module type. The UR8LV is among the highest-failure-risk modules due to its analog front-end exposure to field conditions.

2. Firmware Version Locking: Do not upgrade UR relay firmware without a full compatibility assessment. Many facilities have extended system life by maintaining a stable, tested firmware baseline and avoiding unnecessary updates that can introduce incompatibilities with legacy SCADA or protection coordination schemes.

3. Scheduled Analog Input Verification: CT/VT modules should be included in annual secondary injection test programs. Early detection of measurement drift or input channel degradation allows planned module replacement rather than emergency response.

4. Thermal and Environmental Monitoring: UR chassis installed in environments with high ambient temperature variation or humidity are at elevated risk of electrolytic capacitor degradation within analog modules. Ensure panel HVAC systems are maintained and that relay room conditions remain within GE's specified operating range.

5. Centralized Spare Parts Register: Facilities with multiple UR relay installations should maintain a centralized register of installed module part numbers and firmware versions. This enables cross-site spare sharing and reduces total inventory cost while maintaining system resilience.

Implemented together, these measures have allowed facilities to operate UR-based protection systems reliably for 5–10 years beyond the point at which replacement was first considered — at a fraction of the cost of a full IED replacement program.

Condition & Reliability Assurance

Every UR8LV module supplied by DriveKNMS undergoes a structured 5-step quality process before dispatch review:

Step 1 – Visual and Mechanical Inspection: Full inspection of the module housing, connector pins, and PCB surface. Any evidence of physical damage, corrosion, or burn marks results in immediate rejection.

Step 2 – Electrolytic Capacitor Assessment: Analog input modules are particularly susceptible to electrolytic capacitor aging. Capacitors are tested for ESR (equivalent series resistance) and capacitance drift. Modules with out-of-specification capacitors are either recapped with equivalent-rated components or rejected.

Step 3 – Pin and Connector Integrity Check: All backplane connector pins are inspected for oxidation, mechanical deformation, and contact resistance. Pin corrosion is the leading cause of intermittent module faults in field-aged UR hardware.

Step 4 – Firmware Version Verification: Where applicable, the module's firmware or FPGA version is documented and disclosed to the customer prior to shipment. Compatibility with the target chassis firmware is confirmed before dispatch.

Key Features for System Maintenance

Q: Can you confirm compatibility with my specific UR relay model?
A: Yes. Provide your relay model (e.g., T60, D60, C60) and chassis order code, and we will confirm compatibility before you commit to purchase.

Q: Can export requirements be reviewed?
A: Destination, documentation and routing requirements are confirmed during RFQ review.
