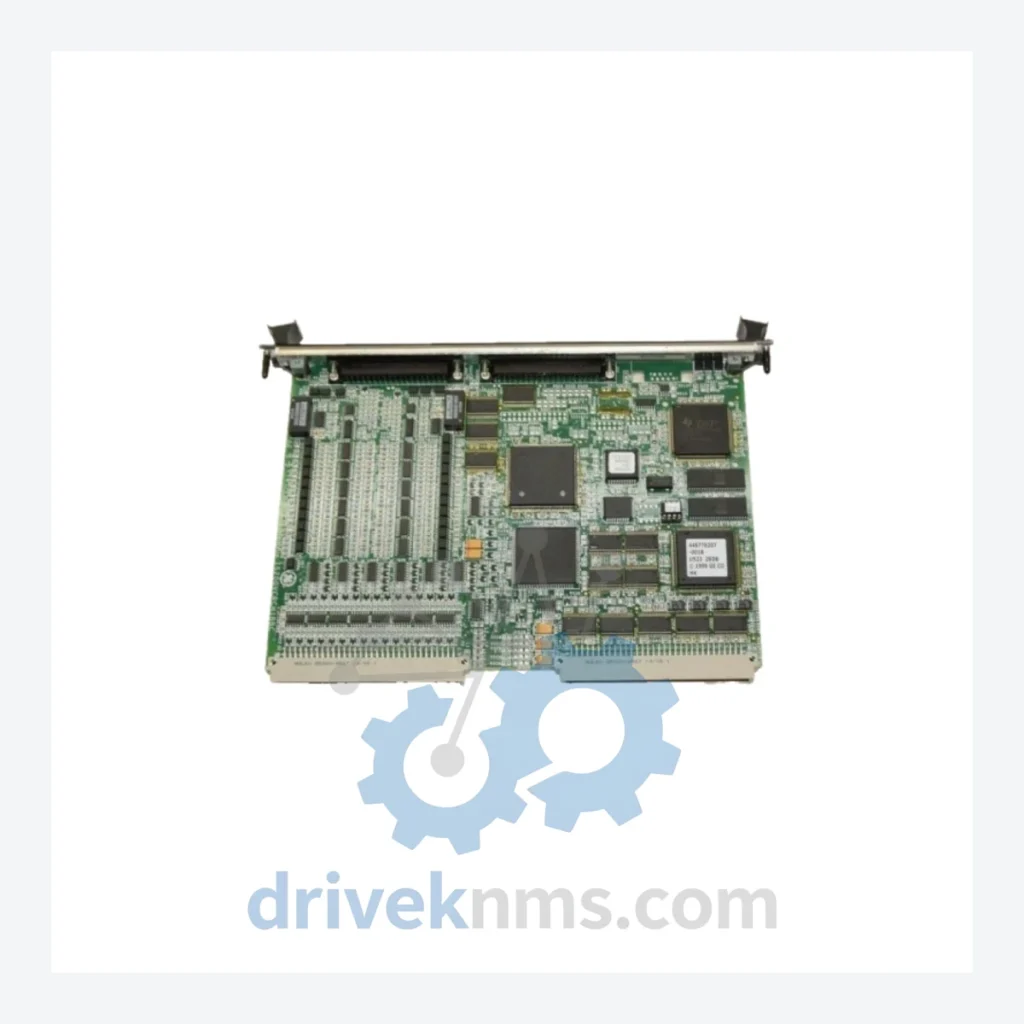

GE IS200VAICH1DAB: VAIC H1D Voltage Amplifier Interface Card

Technical Dossier

Product Details And Specifications

GE VAIC H1D Series Technical Notes

The Evolution of VAIC H1D Architecture

The VAIC card family was introduced alongside the Mark VI platform in the mid-1990s as GE transitioned from the Mark V's discrete analog signal chains to a fully digital, VME-bus-based control architecture. Early VAIC revisions (A-suffix boards) established the baseline voltage amplification topology using through-hole component construction. Subsequent B and C revisions introduced surface-mount technology (SMT), improving thermal stability and reducing susceptibility to vibration-induced solder joint failure — a known failure mode in turbine enclosures. The H1D hardware revision reflects GE's mature production standard for this card, incorporating conformal coating for humidity resistance and revised op-amp selection for extended temperature range operation (-20°C to +65°C ambient). Compatibility is maintained across Mark VI VCMI, VCRC, and VCCA I/O racks. The IS200 prefix denotes the second-generation I/O module standard; IS200-series cards are not directly interchangeable with IS215-series (Mark VIe) cards without backplane adapter hardware. As the Mark VI platform has entered end-of-active-production status with GE Vernova, the VAIC H1D series is now exclusively sourced through authorized aftermarket distributors and surplus inventory channels.

VAIC H1D Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly traded variants within the GE IS200 VAIC H1D product family. Each entry reflects a distinct board revision or configuration suffix as documented in GE's Mark VI hardware reference manuals.

IS200VAICH1DAB: VAIC H1D voltage amplifier interface card, Rev AB, standard Mark VI I/O rack configuration.
IS200VAICH1DAA: VAIC H1D voltage amplifier interface card, Rev AA, early production baseline revision.
IS200VAICH1DAC: VAIC H1D voltage amplifier interface card, Rev AC, updated conformal coating specification.
IS200VAICH1DBB: VAIC H1D Rev BB, revised analog front-end for improved CMR performance.
IS200VAICH1DBA: VAIC H1D Rev BA, transitional SMT revision with updated op-amp selection.
IS200VAICH1DCA: VAIC H1D Rev CA, extended temperature range qualification variant.
IS200VAICH1DCB: VAIC H1D Rev CB, production-mature SMT build with full conformal coat.
IS200VAICH2DAA: VAIC H2D variant, dual-channel voltage amplifier interface, Rev AA.
IS200VAICH2DAB: VAIC H2D dual-channel variant, Rev AB, updated backplane connector spec.
IS200VAICH3DAA: VAIC H3D three-channel amplifier interface card, Rev AA.
IS200VAICH1AAA: VAIC H1A early-generation voltage amplifier, through-hole construction baseline.
IS200VAICH1AAB: VAIC H1A Rev AB, first SMT transition revision for Mark VI I/O.
IS200VAICH1BAA: VAIC H1B mid-generation revision, improved thermal management layout.
IS200VAICH1BAB: VAIC H1B Rev AB, updated passive component tolerances for signal accuracy.
IS200VAICH1CAA: VAIC H1C pre-H1D revision, conformal coat pilot production variant.
IS200VAICH1CAB: VAIC H1C Rev AB, final pre-H1D production standard with SMT op-amp array.
IS200VAICH1DAD: VAIC H1D Rev AD, latest known production suffix, full RoHS compliance.

Sourcing Hard-to-Find & Obsolete VAIC H1D Parts

GE Vernova has formally transitioned Mark VI support to a limited-availability model, with many VAIC H1D variants no longer available through OEM channels. DriveKNMS maintains a dedicated surplus inventory of IS200-series I/O modules sourced from decommissioned turbine control panels, plant upgrades, and authorized liquidation programs. For the IS200VAICH1DAB and related revisions, DriveKNMS provides: verified pull-out units with documented service history where available; reconditioned boards that have passed full functional test protocols; cross-revision compatibility assessment to confirm fit within the customer's specific VCMI or VCRC rack configuration; and long-term hold programs for customers requiring guaranteed availability across multi-year maintenance contracts. Customers operating aging Mark VI fleets in regions where GE field service support has been reduced — including parts of Southeast Asia, the Middle East, and Latin America — rely on DriveKNMS as a primary lifecycle extension partner for these components.
