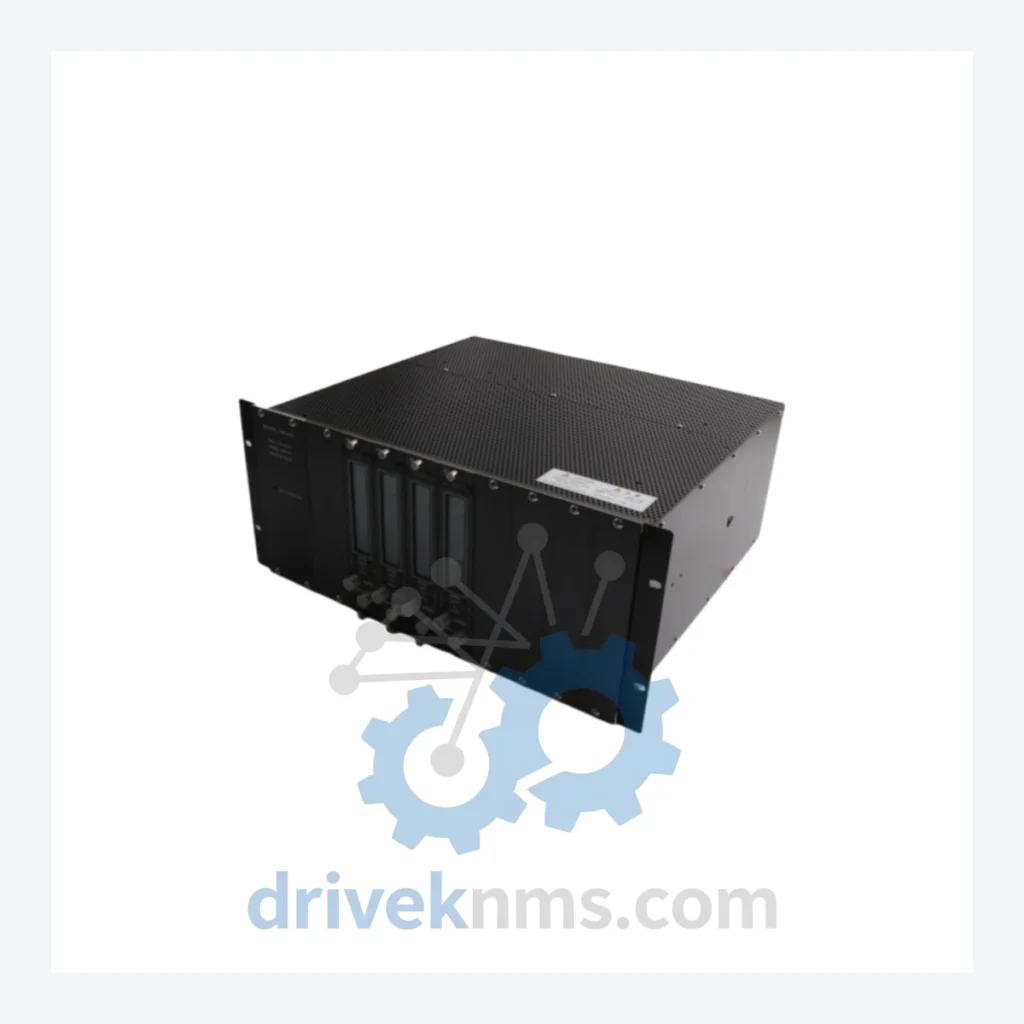

GE Multilin VM Series Modules: VM-5H3, VM-5Z, VM-5K, VM-5J, VM-5L

Technical Dossier

Product Details And Specifications

GE Multilin VM Series: Comprehensive Module Range and Technical Overview

The GE Multilin VM Series is a family of rack-integrated power supply monitor modules with a documented installed base across global heavy industry sectors, including petrochemical refineries, nuclear power stations, offshore platforms, and continuous-process chemical plants. Developed under GE's industrial automation division, the VM Series established a long-term presence in facilities requiring high-reliability, rack-integrated power monitoring with deterministic response times. Its modular backplane architecture enables plant engineers to configure mixed I/O and power supervision assemblies within a standard 19-inch rack envelope, reducing panel footprint in control rooms where space and thermal management are critical constraints. The series remains active in maintenance inventories at facilities operating GE Mark V, Mark VI, and legacy Speedtronic turbine control systems, where VM-series racks serve as auxiliary power distribution and monitoring nodes.

The Evolution of VM Series Architecture

The VM Series architecture evolved through three identifiable generations. The first generation, represented by the base VM-5 unit, used discrete analog monitoring circuits with relay-based alarm outputs, compatible with GE's Series 90 and early CIMPLICITY control environments. These units communicated via hardwired discrete I/O and required manual calibration of voltage and current thresholds at the module level.

The second generation introduced the VM-5Z and VM-5K variants, which retained the same 5-slot rack form factor but incorporated ASIC-based signal conditioning, wider input voltage tolerance ranges, and enhanced EMI filtering. The VM-5Z added isolated analog output channels for SCADA integration; the VM-5K introduced a dedicated RS-485 port for serial Modbus RTU connectivity, enabling remote monitoring without additional gateway hardware.

The third generation, exemplified by the VM-5H3, introduced a hardened processor core with non-volatile parameter storage, allowing configuration retention through power cycles without battery backup. The VM-5H3 expanded monitored channel count and added front-panel LED diagnostics for field-level fault isolation. Cross-generation hot-swap interchangeability is not supported without backplane adapter kits and host controller firmware verification. The VM Series as a whole has entered the mature-to-end-of-life phase, with OEM lead times for remaining active SKUs extending to 16–52 weeks through standard distribution channels.

VM Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the GE Multilin VM Series, classified by functional role:

— Power Supply & Rack Infrastructure —
VM-5P: Rack power supply module; provides regulated 5 VDC and ±15 VDC internal bus power to all installed VM-series modules.
VM-5: Base-generation 5-slot rack power monitor unit; relay alarm outputs; discrete I/O interface; analog monitoring circuits.
VM-5H: Dual-output power monitor; battery-backed parameter storage; predecessor to VM-5H3 with limited channel count.

— Advanced Monitor Modules —
VM-5H3: Triple-output power supply monitor; hardened processor; non-volatile config storage; front-panel LED diagnostics.
VM-5A: Single-channel AC voltage monitor; configurable alarm thresholds; DIN rail or rack mount compatible.
VM-5B: Dual-channel DC voltage monitor; isolated inputs; 24 VDC and 48 VDC bus supervision.
VM-5C: Current monitor module; 4–20 mA loop-powered; configurable over/under current alarm relay outputs.
VM-5D: Frequency deviation monitor; AC line frequency tracking within ±0.5 Hz resolution; relay trip output.
VM-5E: Power factor monitor; single-phase measurement; analog output for PF trending to historian systems.
VM-5F: Ground fault detection module; high-impedance ground monitoring for ungrounded distribution systems.
VM-5G: Multi-function power quality monitor; combined voltage, current, and frequency measurement in single slot.
VM-5N: Neutral current monitor; 3-phase 4-wire systems; detects neutral conductor overload conditions.

— Analog Output Modules —
VM-5Z: Dual-channel isolated analog output monitor; SCADA-ready; wide input voltage tolerance; enhanced EMI filtering.
VM-5M: Metering output module; pulse output for energy metering integration with third-party kWh meters.

— Communication & Supervision Modules —
VM-5K: Serial Modbus RTU communication monitor; dedicated RS-485 port; remote supervisory access without external gateway.
VM-5J: Rack controller/supervisor module; coordinates alarm aggregation across up to 8 VM-series slots; optional Ethernet interface.
VM-5L: Load shedding control module; integrates with VM-5J supervisor for automatic load priority management during undervoltage events.

Sourcing Hard-to-Find & Obsolete VM Series Parts

The GE Multilin VM Series has entered the mature-to-end-of-life phase of its product lifecycle. GE has progressively discontinued active manufacturing of several VM-5 sub-variants. For facilities operating continuous processes — refineries, power generation stations, chemical plants — standard OEM lead times of 16–52 weeks are operationally unacceptable when a module failure triggers a control system alarm or process shutdown.

DriveKNMS maintains a dedicated inventory of VM Series modules sourced through certified industrial surplus channels, OEM overstock recovery, and decommissioned plant asset liquidation. All units are cataloged by revision level and firmware version where applicable. For obsolete variants such as the VM-5, VM-5A, VM-5B, and VM-5H, DriveKNMS provides lifecycle extension support including cross-reference verification against the customer's existing backplane configuration, revision compatibility assessment, and functional test reports issued prior to shipment. Customers operating under long-term maintenance contracts (LTSA) for GE turbine or generator control systems are encouraged to submit their full VM Series BOM for a consolidated availability assessment. DriveKNMS can provide multi-year stocking agreements for critical spare modules to eliminate unplanned downtime risk.

Quality Control for the VM Series Range

VM Series modules incorporate multi-layer backplane bus interfaces and precision analog signal conditioning circuits that require specialized test procedures beyond standard power-on verification. DriveKNMS applies the following quality control protocol to all VM Series units processed through its facility:

Each module undergoes incoming inspection against GE's published dimensional and connector-pin specifications. Backplane edge connectors are inspected under magnification for pin deformation, oxidation, and contamination. Modules with corroded or bent backplane pins are rejected at intake.

Functional testing is performed using a dedicated VM Series rack test fixture that replicates the backplane power bus and communication signals of a live GE control rack. Each module is powered at nominal and ±10% voltage extremes to verify regulation and alarm threshold accuracy. Communication modules (VM-5K, VM-5J) undergo Modbus RTU register read/write cycle verification against GE's published register map. Analog output modules (VM-5Z, VM-5E, VM-5M) are tested across the full 4–20 mA or 0–10 V output range using calibrated reference instruments traceable to NIST standards. Modules that pass all functional tests are issued a DriveKNMS test report documenting input/output measurements, alarm relay actuation verification, and communication protocol confirmation.
