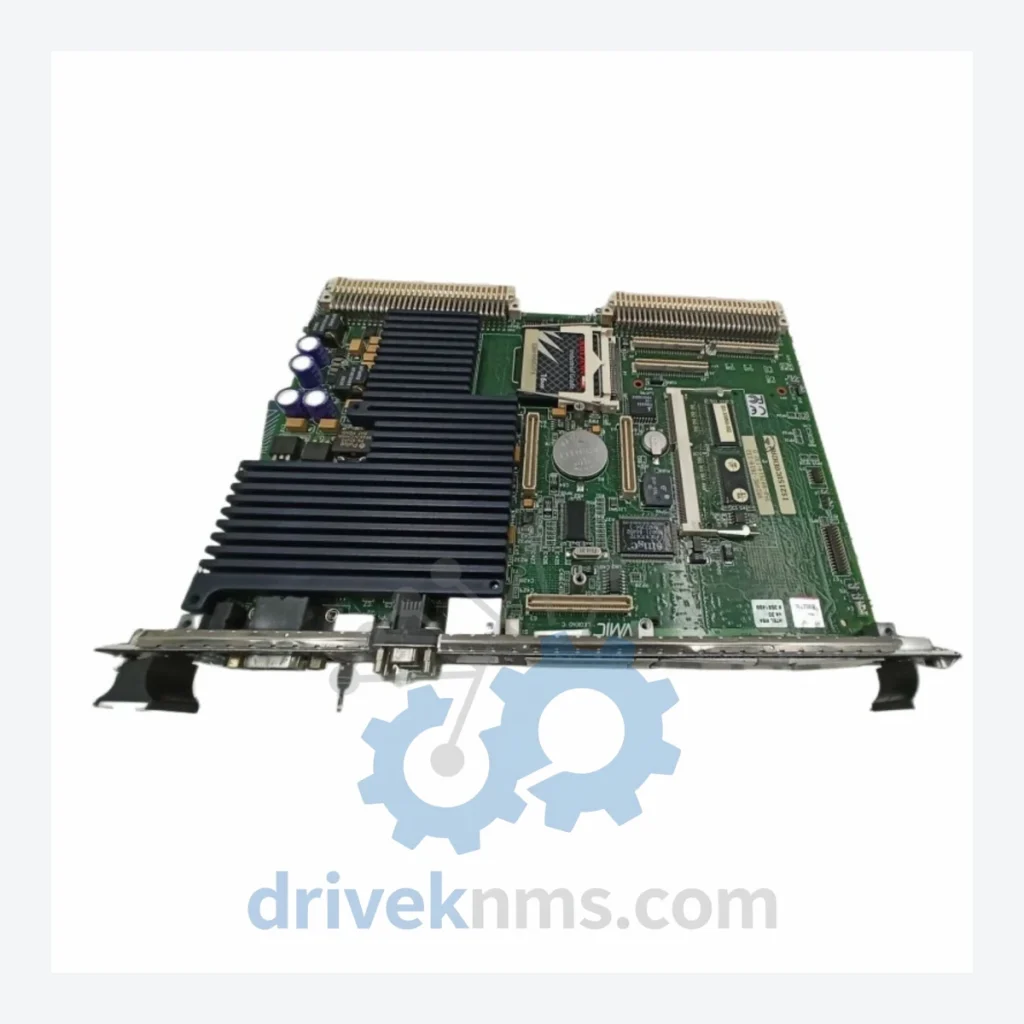

GE VMIC VMIVME-2540 Series: Comprehensive Module Range and Technical Overview

The GE VMIC VMIVME-2540 series is a family of VMEbus-based intelligent counter and controller modules engineered for high-reliability industrial environments. Deployed extensively across global heavy industry — including petrochemical refineries, nuclear power generation facilities, offshore platforms, and continuous-process chemical plants — the VMIVME-2540 platform has established a long-term installed base that demands sustained spare parts availability well beyond the series' active production lifecycle.

The VMIVME-2540 architecture is built on the VME (Versa Module Eurocard) bus standard, providing deterministic real-time performance for pulse counting, frequency measurement, quadrature encoder decoding, and closed-loop motion control. Its modular design allows integration into both standalone VMEbus crates and larger distributed control system (DCS) architectures. The series is particularly prevalent in turbine control, flow metering, and position feedback applications where encoder signal integrity and counter resolution are critical parameters.

The Evolution of VMIVME-2540 Architecture

The VMIVME-2540 series was introduced during the peak adoption period of VMEbus in industrial control systems — a standard that dominated process automation from the mid-1980s through the early 2000s. GE VMIC (formerly Versa Module Eurocard Industrial Computers, later absorbed into GE Intelligent Platforms and subsequently Emerson Automation Solutions) developed the VMIVME-2540 to address the growing demand for high-speed pulse and encoder processing within VME rack environments.

Early Generation: Initial variants focused on single-channel quadrature decoding with TTL-level inputs, targeting servo positioning and rotary encoder feedback in machine tool and turbine applications. Counter depth was 24-bit, with basic interrupt-driven readback via the VMEbus A24/D16 interface.

Mid-Generation Expansion: The -200 and related sub-variants introduced expanded channel counts, configurable input thresholds (TTL/RS-422), and onboard programmable gate arrays (FPGA/CPLD precursors) enabling flexible counting modes — up/down, quadrature x1/x2/x4, period measurement, and pulse-width capture. The VMEbus interface was extended to support A32/D32 transfers for higher throughput in multi-axis systems.

Compatibility Considerations: The VMIVME-2540 series operates within standard 6U VMEbus crates and is compatible with GE VMIC backplanes including the VMIVME-7587 and VMIVME-7588 series. Software support was provided under VxWorks, LynxOS, and Windows NT real-time environments via GE VMIC's VMISFT driver libraries. Migration to modern platforms (e.g., CompactPCI, PXI, or EtherCAT-based motion controllers) requires signal-level adaptation and software re-engineering — making long-term spares support for the VMIVME-2540 a preferred strategy for facilities with extended plant lifecycles.

VMIVME-2540 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented VMIVME-2540 series range. Each module operates within the VMEbus 6U form factor. Functional classifications follow GE VMIC's internal taxonomy.

Counter / Encoder Input Modules:

VMIVME-2540-000: Base 4-channel quadrature counter, TTL input, 24-bit resolution, A24/D16 VMEbus interface.

VMIVME-2540-100: 4-channel counter with RS-422 differential input support; enhanced noise immunity for long cable runs.

VMIVME-2540-200: Intelligent counter/controller variant; onboard processing for closed-loop position control, configurable counting modes (x1/x2/x4 quadrature, up/down, period), A32/D32 VMEbus.

VMIVME-2540-300: Extended-range 32-bit counter channels; suited for high-resolution linear encoder feedback in precision machining environments.

VMIVME-2540-400: 8-channel counter expansion variant; doubles channel density for multi-axis turbine or flow metering racks.

VMIVME-2540-500: High-frequency input variant; supports pulse rates up to 10 MHz for turbine blade-pass and tachometer applications.

VMIVME-2540-600: Isolated input version; optocoupler-isolated channels for environments with high common-mode voltage or ground loop risk.

VMIVME-2540-700: Combination counter/timer module; integrates interval timing and event counting for synchronized multi-parameter acquisition.

VMIVME-2540-800: Low-power variant for thermally constrained VME crates; reduced dissipation design for sealed enclosure deployments.

VMIVME-2540-900: Extended temperature range (-40°C to +85°C); qualified for outdoor and harsh-environment industrial enclosures.

Controller / Closed-Loop Variants:

VMIVME-2540A: Revised 'A' silicon stepping; corrects early-generation FPGA timing errata; drop-in replacement for -000 through -200 base variants.

VMIVME-2540B: 'B' revision with expanded onboard SRAM buffer for high-speed data logging of counter events without VMEbus intervention.

VMIVME-2540C: 'C' revision introducing EEPROM-based configuration storage; eliminates jumper-based mode selection of earlier variants.

VMIVME-2540-200A: Revised intelligent controller; incorporates 'A' silicon fix plus extended diagnostic register set for field fault isolation.

VMIVME-2540-200B: Final production revision of the -200 intelligent controller; adds watchdog timer output and hardware interlock signal for safety-critical loop integration.

VMIVME-2540-400A: Revised 8-channel variant; updated backplane connector specification for improved contact reliability in high-vibration installations.

Sourcing Hard-to-Find & Obsolete VMIVME-2540 Parts

The VMIVME-2540 series has entered end-of-life status under GE Intelligent Platforms / Emerson's product lifecycle policy. New production units are no longer available through OEM channels. For facilities operating VMEbus-based control systems with VMIVME-2540 modules installed, the primary procurement options are: certified refurbished units, tested surplus stock, and exchange/repair programs.

DriveKNMS maintains a dedicated inventory of VMIVME-2540 series modules sourced from decommissioned plant equipment, controlled surplus, and verified distributor stock. All units are catalogued by revision level and sub-variant to ensure compatibility with the customer's existing backplane and software configuration. DriveKNMS provides:

— Revision-matched replacement units (critical for FPGA-dependent firmware compatibility)
— Long-lead procurement for low-volume sub-variants (e.g., -600 isolated, -900 extended temperature)
— Exchange programs: return a failed unit, receive a tested replacement with reduced lead time
— Repair and refurbishment for boards with repairable fault modes (power supply section, connector damage, SRAM failure)

For facilities with multi-year maintenance contracts or scheduled turnaround requirements, DriveKNMS offers consignment stocking agreements to ensure VMIVME-2540 availability aligned with plant maintenance windows.

Quality Control for the VMIVME-2540 Range

The VMIVME-2540 series presents specific test challenges due to its VMEbus backplane interface, onboard FPGA/CPLD logic, and multi-mode counter architecture. DriveKNMS applies a structured test protocol to all VMIVME-2540 units prior to shipment:

1. Visual and Mechanical Inspection: PCB examined for corrosion, cold solder joints, damaged DIN 41612 connector pins, and component substitution inconsistent with OEM BOM.

2. Power Rail Verification: +5V, ±12V VMEbus supply rails measured under load; onboard regulator output verified against GE VMIC specification tolerances.

3. VMEbus Interface Test: Module installed in a reference VME crate; A24/D16 and A32/D32 read/write cycles executed via automated test controller. Address decode, interrupt acknowledge, and BERR* response verified.

4. Counter Channel Functional Test: Each counter channel exercised with calibrated pulse generator inputs at multiple frequencies (1 Hz, 1 kHz, 100 kHz, maximum rated frequency). Up/down, quadrature x1/x2/x4, and period measurement modes verified against known reference counts.

5. Input Threshold Verification: TTL and RS-422 input switching thresholds measured; compared against GE VMIC datasheet limits. Optocoupler isolation resistance verified on -600 variant units.

6. Thermal Soak: Units operated at elevated ambient temperature (50°C minimum) for a minimum 4-hour burn-in period. Counter accuracy and VMEbus communication monitored continuously for intermittent fault detection.

7. Revision and Firmware Verification: Onboard revision markings cross-referenced against GE VMIC engineering change records. EEPROM configuration (where applicable, -C revision and later) read and verified.

Test records are retained and available upon request for traceability in regulated industries (nuclear, pharmaceutical, defense).
