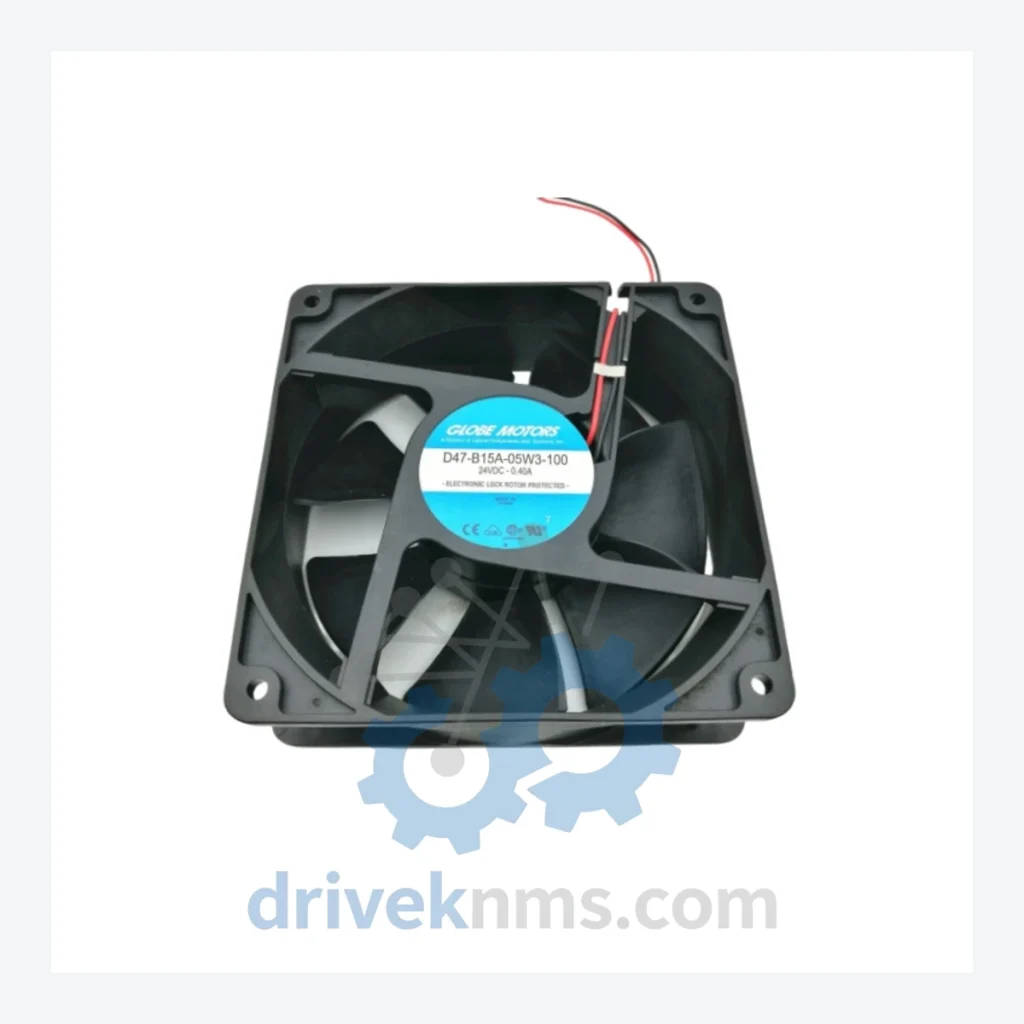

Globe Motors D47-B15A-05W3-100 Cooling Fan – Obsolete D47 Series Spare Part

When a cooling fan fails inside a legacy control cabinet, the consequences extend far beyond a single component. Thermal runaway in an unventilated enclosure can cascade into drive failures, PLC damage, and unplanned line shutdowns measured in days, not hours. For plants still operating Globe Motors D47-series-equipped systems, sourcing a direct replacement is no longer a matter of calling a distributor — this part is discontinued, and the engineering cost of retrofitting an alternative fan into an existing mounting frame, wiring harness, and thermal management scheme can run into tens of thousands of dollars before a single production hour is recovered. DriveKNMS holds verified physical stock of the D47-B15A-05W3-100. This is not a catalog listing. If it is on this page, it is in our warehouse.

Technical Specifications

Note: Electrical parameters (voltage, current draw, airflow CFM, RPM) are not published here to prevent specification mismatch. Contact us with your original nameplate data for cross-verification before ordering.

Solving the Discontinued Hardware Crisis

Globe Motors built the D47 series for the demanding thermal environments of industrial automation cabinets in an era when control hardware was engineered to last 20–30 years. That longevity is now a liability for procurement teams: the OEM stopped production, authorized distributors have exhausted buffer stock, and the installed base of equipment that depends on this fan continues to operate in factories across the world.

The business case for sourcing a genuine replacement rather than engineering around it is straightforward. A D47-B15A-05W3-100 replacement, sourced and installed in hours, preserves the thermal design intent of the original enclosure. An alternative fan retrofit requires mechanical adaptation, electrical re-termination, airflow validation, and in many jurisdictions, a formal engineering change record — a process that can consume 40–80 engineering hours and introduce new failure modes into a system that was otherwise stable.

For plant managers facing pressure to retire aging automation assets, the calculus is equally clear. A full drive or controller replacement on a production line typically costs USD 80,000–500,000 when engineering, commissioning, and lost production are included. Maintaining a small strategic inventory of critical wear components — cooling fans, capacitor banks, interface cards — can defer that capital expenditure by 5 to 10 years at a fraction of the cost. The D47-B15A-05W3-100 is precisely this category of component: low unit cost, high system criticality, zero OEM availability.

Condition & Reliability Assurance

Every unit of the D47-B15A-05W3-100 that leaves our facility passes a five-stage inspection protocol developed specifically for obsolete electromechanical components:

• Step 1 – Visual and Mechanical Inspection: Frame integrity, blade condition, mounting boss dimensions, and label legibility are verified against original production records.
• Step 2 – Bearing and Rotation Check: Shaft is rotated manually and under power to detect bearing wear, axial play, and abnormal noise signatures.
• Step 3 – Electrolytic Capacitor Assessment: Where run capacitors are present, capacitance and ESR are measured. Units with out-of-tolerance capacitors are either recapped with equivalent-spec components or quarantined.
• Step 4 – Terminal and Pin Corrosion Audit: All electrical connection points are inspected under magnification. Oxidized terminals are treated or the unit is rejected.
• Step 5 – Firmware / Label Version Verification: Part number, date code, and revision markings are cross-referenced to confirm the unit matches the D47-B15A-05W3-100 specification and not a superseded or substituted variant.

Units are shipped in anti-static packaging with desiccant. Long-term storage units are vacuum-sealed.

Key Features for System Maintenance

• Drop-in replacement: Designed to the original D47 series dimensional and electrical envelope. No bracket fabrication, no wiring modification.
• No reprogramming required: This is a passive electromechanical component. Swapping it does not affect drive parameters, PLC logic, or HMI configuration.
• Avoids engineering change overhead: A like-for-like replacement keeps your system within its validated configuration. No change record, no re-commissioning, no regulatory re-approval in most jurisdictions.
• Extends asset service life: Replacing a failed cooling fan is the lowest-cost intervention available to prevent thermal damage to the surrounding electronics — components that are far more expensive and equally difficult to source.
• Immediate dispatch: Stock is physically on hand. No lead time speculation, no back-order queues.

FAQ

What warranty applies to an obsolete part?
We provide a 90-day functional warranty on all units. If the part fails under normal operating conditions within 90 days of delivery, we will replace it or issue a refund. Warranty does not cover damage from incorrect installation or operation outside the original design envelope.

How do I know the unit is genuine and not a counterfeit?
All units are sourced through documented supply channels. Physical markings, date codes, and dimensional characteristics are verified against reference units. We do not sell unmarked, relabeled, or country-of-origin-substituted parts.

Should I buy more than one unit?
For any system where this fan is a single point of failure, holding a minimum of two spare units is standard practice. Given that OEM production has ceased and secondary market availability is finite, the cost of a second unit is negligible compared to the cost of an emergency sourcing effort during an unplanned outage.

Can you source other Globe Motors D47 series variants?
Contact us with your full part number. We maintain relationships with multiple obsolete parts networks and can advise on availability across the D47 family.
