HARTING Han Series: Comprehensive Module Range and Technical Overview

The HARTING Han series represents the global standard for heavy-duty industrial connectors, deployed across chemical processing plants, nuclear facilities, oil refineries, offshore platforms, and rail infrastructure. With over 70 years of continuous development, Han connectors are specified by engineers in more than 100 countries as the primary interface for power, signal, and data transmission in harsh environments. The series covers current ratings from 10 A to 200 A, voltage ratings up to 1000 V AC/DC, and protection classes from IP44 to IP68, making it the reference catalog for plant maintenance engineers managing both legacy installations and new builds.

The Evolution of Han Series Architecture

The Han connector platform was introduced by HARTING in the 1950s as a standardized heavy-duty interface for industrial machinery. The original Han B and Han E housings established the modular insert concept that remains the architectural foundation of the entire product line today. Through the 1970s and 1980s, the introduction of Han-Modular® allowed engineers to combine power, signal, pneumatic, and fiber-optic contacts within a single housing frame, eliminating the need for multiple discrete connectors on a single machine interface.

The 1990s saw the introduction of IP65/IP67-rated variants and the Han-Yellock® push-button locking system, addressing field-assembly reliability in mobile and vibration-intensive applications. The 2000s brought the Han-Eco® series — a cost-optimized thermoplastic housing range for less demanding environments — and the Han-Modular Domino system for high-density signal routing. From 2010 onward, HARTING expanded into Ethernet-capable inserts (Han-Modular® Cat.6A) and hybrid power-plus-data configurations to support Industry 4.0 machine architectures. Compatibility between housing generations is maintained through standardized frame dimensions (Han 3A, 6B, 10B, 16B, 24B, 32B, 48B), though insert generations must be matched to frame series for correct mating.

Han Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models across the Han Series product range, organized by functional category:

Power Inserts & Contacts

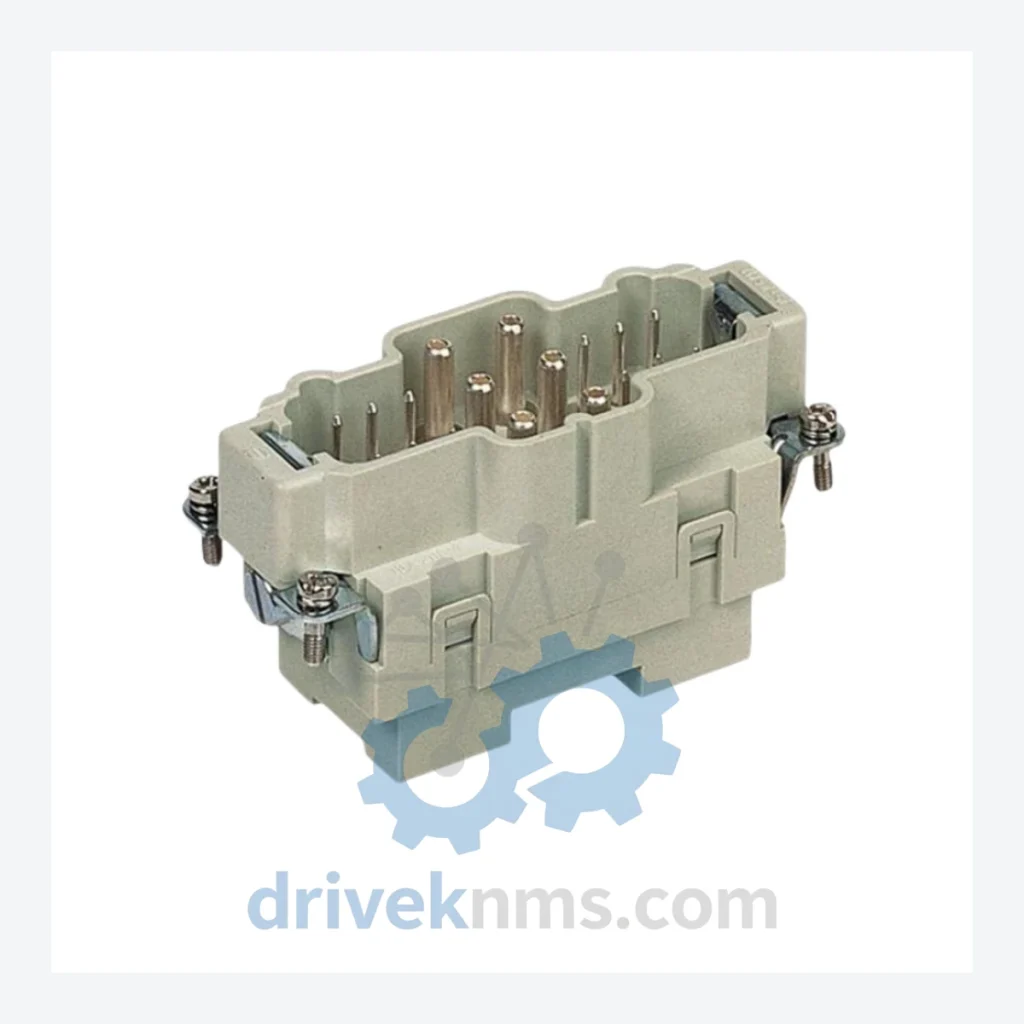

9380182601: Han 6B power insert, 6-pole, 16A/500V, screw termination, male
09200062601: Han E 6-pole male insert, 16A, screw termination, thermoplastic
09200062701: Han E 6-pole female insert, 16A, screw termination, thermoplastic
09200122601: Han E 12-pole male insert, 10A, screw termination
09200122701: Han E 12-pole female insert, 10A, screw termination
09200242601: Han E 24-pole male insert, 10A, high-density signal/power
09330062601: Han B 6-pole male insert, 16A/500V, screw termination
09330062701: Han B 6-pole female insert, 16A/500V, screw termination

Housings & Frames

09200160301: Han 16B housing, top entry, metal, IP65, for panel mounting
09200100301: Han 10B housing, top entry, metal, IP65
09200060301: Han 6B housing, top entry, metal, IP65
09200240301: Han 24B housing, top entry, metal, IP65, high-density frame

Han-Modular® Inserts

09140006201: Han-Modular Domino, 6-pole power module, 16A, push-in termination
09140012201: Han-Modular Domino, 12-pole signal module, 10A, push-in termination
09140023001: Han-Modular Cat.6A data module, RJ45, shielded, IP65 rated

Locking & Accessories

09200000301: Han locking lever assembly, metal, for B-series housings
09990000050: Han-Yellock 10 push-button locking frame, tool-free field assembly

Sourcing Hard-to-Find & Obsolete Han Series Parts

DriveKNMS maintains a dedicated inventory program for discontinued and long-lead HARTING Han Series components. As the Han platform spans multiple decades of industrial installations, maintenance engineers frequently require inserts, housings, and contact sets that have been superseded by revised part numbers or withdrawn from standard distribution channels.

Our sourcing process covers: original HARTING production stock held in bonded warehouses; tested pulls from decommissioned equipment with full inspection records; and cross-reference mapping between legacy part numbers and current equivalents where form-fit-function compatibility is confirmed. For plant operators running Han B or early Han E installations from the 1980s and 1990s, DriveKNMS provides lifecycle extension support including kitting of complete connector assemblies to minimize field assembly time during planned shutdowns.

Quality Control for the Han Series Range

HARTING Han Series connectors involve precision-machined contact systems and multi-layer housing assemblies that require structured inspection before redeployment. DriveKNMS applies the following test protocol to all Han Series stock:

Visual inspection of housing latch mechanisms, sealing gaskets (IP class verification), and contact retention clips. Contact resistance measurement per IEC 60512-2 using a four-wire milliohm meter; acceptance threshold ≤5 mΩ per contact. Insulation resistance test at 500 V DC between adjacent poles and between poles and housing; minimum 100 MΩ. Dielectric withstand test at 2000 V AC for 1 minute on power-rated inserts. Mating cycle assessment on locking mechanisms for Han-Yellock and standard lever-lock variants. All tested units are tagged with inspection date, technician ID, and test result record. Units failing any parameter are quarantined and not offered for sale.
