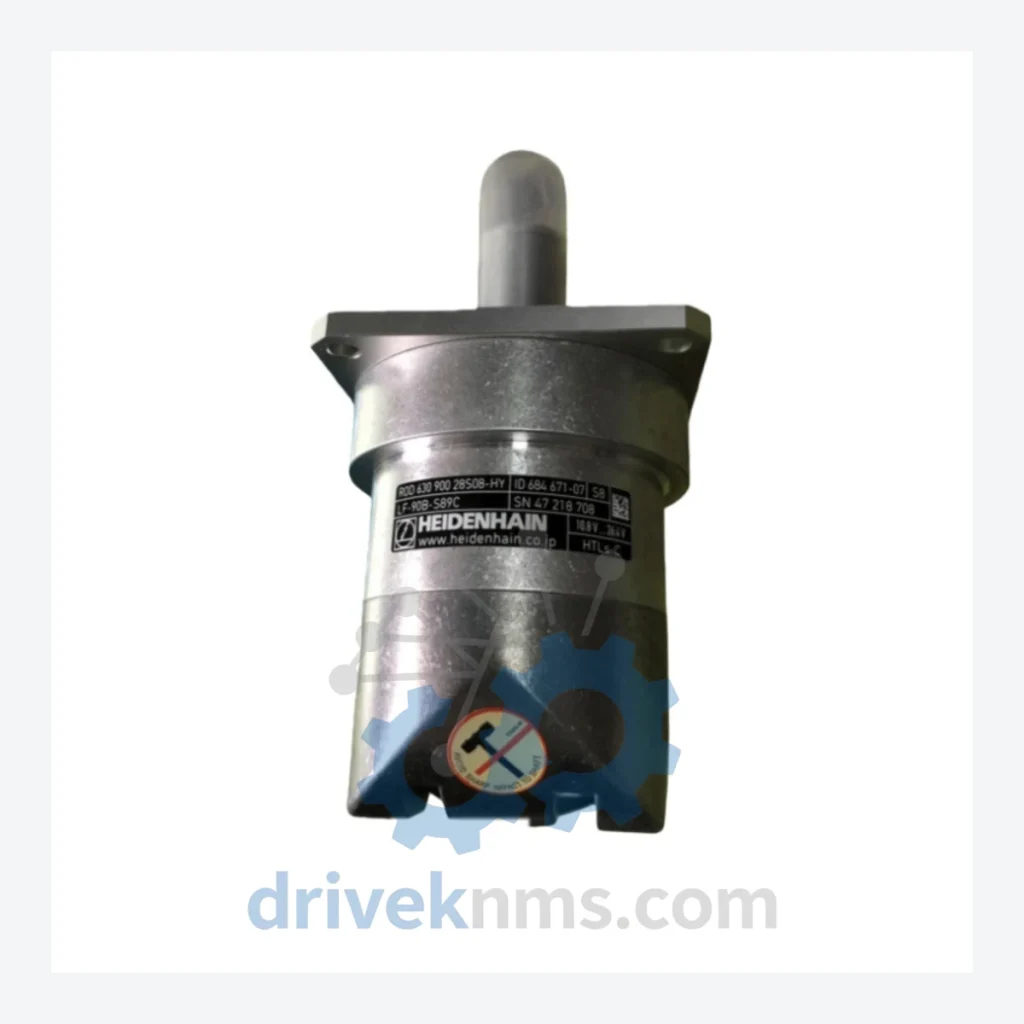

HEIDENHAIN ROD 630 900 28S0 Incremental Rotary Encoder – Obsolete ROD 600 Spare Part

Technical Dossier

Product Details And Specifications

HEIDENHAIN ROD 630 900 28S0 Incremental Rotary Encoder – Obsolete ROD 600 Spare Part

When a HEIDENHAIN ROD 630 encoder fails on a precision CNC machine tool, grinding center, or closed-loop servo axis, the consequences extend far beyond a replacement part cost. The ROD 630 900 28S0 is deeply embedded in legacy HEIDENHAIN TNC control architectures and Siemens SINUMERIK 840D/810D configurations that have been in continuous production service for 15–25 years. Replacing the entire motion control system — drives, controllers, cabling infrastructure, and machine re-commissioning — routinely costs plant operators USD $200,000 to over $1,000,000, plus weeks of lost production. A single verified spare encoder changes that calculation entirely. DriveKNMS maintains sourced stock of this discontinued unit specifically to protect the capital investment already embedded in your production floor.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ROD 600 series was the backbone of high-precision feedback on European CNC machine tools throughout the 1990s and 2000s. HEIDENHAIN's transition to the ERN and EQN series left a large installed base of ROD 630-equipped machines without a direct factory replacement path. The ROD 630 900 28S0 uses a specific 28-pin connector configuration and 900-line resolution that does not map cleanly to current catalog encoders without axis re-parameterization — a process that requires certified HEIDENHAIN service engineers and machine re-qualification downtime.

For factory management facing system retirement pressure, the arithmetic is straightforward: the cost of sourcing and stocking verified ROD 630 spares is a fraction of one percent of the capital cost of machine replacement. Plants operating HEIDENHAIN TNC-controlled machining centers, jig borers, or gear grinding machines can realistically extend asset service life by 5 to 10 years through a disciplined spare parts strategy. The critical components to address are the encoder (feedback device), the PWM drive module, and the TNC control board — three items that account for the majority of unplanned downtime on these platforms. Securing the encoder first eliminates the longest lead-time failure point.

DriveKNMS sources ROD 630 units through verified industrial surplus channels and direct estate acquisitions from decommissioned facilities. Each unit is individually assessed before listing.

Condition & Reliability Assurance

Obsolete encoders sourced from the open market carry real risks: electrolytic capacitor degradation in the signal conditioning circuit, firmware version mismatches on units with embedded electronics, and pin corrosion on the 28S0 connector that causes intermittent feedback faults under vibration. Our 5-step QA process addresses each failure mode directly:

• Step 1 – Visual & Mechanical Inspection: Housing integrity, shaft runout check, bearing drag assessment. Units with physical damage or excessive bearing wear are rejected.
• Step 2 – Connector & Pin Audit: All 28 pins inspected under magnification for oxidation, corrosion, and deformation. Affected pins are cleaned or the unit is downgraded.
• Step 3 – Electrolytic Capacitor Assessment: Internal capacitors checked for bulging, leakage, and ESR deviation where accessible. Units showing capacitor degradation are flagged.
• Step 4 – Signal Output Verification: Encoder is driven at rated speed on a test bench. A, B, and Z channel outputs are verified against specification on an oscilloscope. Signal integrity, quadrature relationship, and index pulse width are confirmed.
• Step 5 – Firmware & Label Verification: Part number, revision marking, and production date code are cross-referenced to confirm the unit matches the ordered specification.

Key Features for System Maintenance

• Drop-in Replacement: The ROD 630 900 28S0 installs directly into the original encoder mounting without mechanical modification. No shaft adapter, no bracket fabrication.
• No Re-Programming Required: The 900-line resolution and TTL output are parameter-compatible with the original axis configuration in HEIDENHAIN TNC and Siemens SINUMERIK controllers. Machine parameters do not require adjustment.
• Avoids Engineering Reconstruction Costs: Substituting a non-equivalent encoder requires axis re-scaling, re-homing, and full machine re-qualification — typically 3–5 days of certified engineer time. A verified ROD 630 spare eliminates this entirely.
• Protects Production Continuity: Unplanned encoder failure on a critical axis causes immediate machine shutdown. A stocked spare converts a potential week-long crisis into a same-shift repair.

FAQ

What warranty applies to obsolete parts?
DriveKNMS provides a 90-day functional warranty on all QA-verified obsolete units. The warranty covers signal output failure under normal operating conditions. It does not cover damage from incorrect installation or electrical overstress.

How do I confirm the unit is genuine and not counterfeit?
All HEIDENHAIN units we supply carry original manufacturer markings, production date codes, and serial number labels. We do not supply units with removed, altered, or re-labeled identification. Customers may request label photographs prior to shipment.

New or refurbished?
Stock condition varies. We clearly state whether a unit is new-old-stock (NOS), tested surplus, or professionally refurbished. Condition is confirmed in writing before order confirmation.

Should I stock more than one unit?
For machines where the ROD 630 is the sole feedback device on a critical axis, holding a minimum of two spares is standard practice. Encoder availability on the secondary market is not guaranteed — once current stock is exhausted, lead times for sourcing additional units are unpredictable.

Can you source other HEIDENHAIN ROD 600 variants?
Yes. Contact us with your full part number including line count and connector suffix. We maintain sourcing networks for the broader ROD 600 family.
