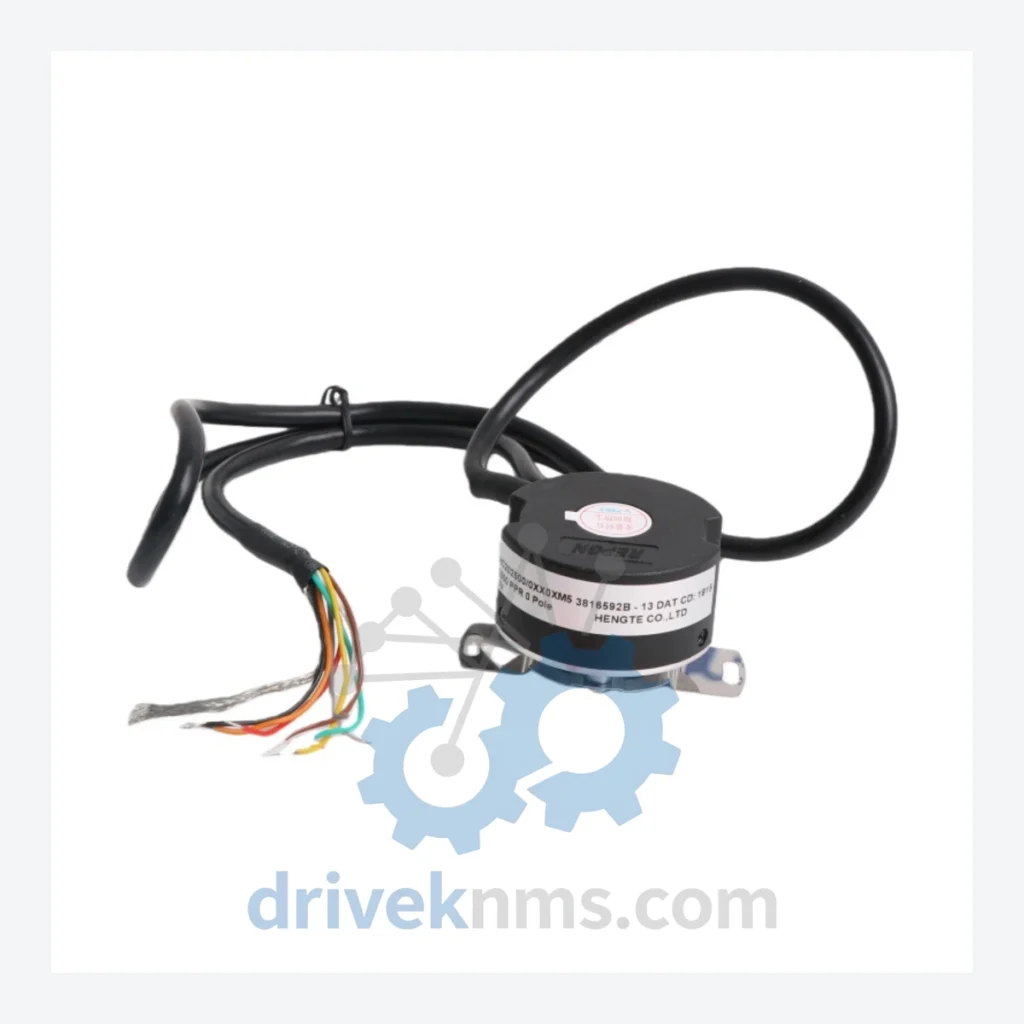

HENGSTLER HC20 Incremental Encoders

Technical Dossier

Product Details And Specifications

HENGSTLER HC20 Series: Comprehensive Module Range and Technical Overview

The HENGSTLER HC20 series is a line of compact incremental rotary encoders manufactured in Germany, widely deployed across heavy industrial sectors including petrochemical plants, nuclear power facilities, offshore platforms, and steel rolling mills. The HC20 encoder family is recognized for its robust mechanical construction, high pulse-per-revolution (PPR) resolution options, and compatibility with standard industrial signal interfaces (TTL, HTL, Push-Pull). These characteristics have made the HC20 a reference-grade component in motion control, speed feedback, and position measurement applications where long-term reliability and signal integrity are non-negotiable requirements.

In distributed control system (DCS) environments and PLC-driven automation architectures, HC20 encoders serve as primary feedback devices on motor shafts, conveyor drives, turbine governors, and winding machines. Their 58 mm flange format and solid-shaft or hollow-shaft mounting options allow direct integration into legacy and modern drive systems without mechanical adaptation.

The Evolution of HC20 Architecture

The HC20 series was introduced by HENGSTLER as part of its compact encoder portfolio targeting industrial OEM and MRO markets. Early variants of the HC20 were designed around analog-compatible TTL differential output circuits, providing 5 VDC signal levels compatible with the counter and motion control cards prevalent in 1990s-era PLC backplanes (Siemens S5, Allen-Bradley PLC-5, Modicon 984).

As industrial voltage standards shifted toward 24 VDC HTL (High Threshold Logic) in the 2000s, HENGSTLER expanded the HC20 output option matrix to include Push-Pull and HTL differential variants, enabling direct connection to modern Siemens S7-300/400 FM350 counter modules, Beckhoff EL5101 encoder terminals, and Schneider Electric Modicon M340 HSC inputs without external signal converters.

The HC20 series operates across a resolution range of 100 to 5000 PPR, with the 1024 PPR and 2500 PPR variants being the most widely specified in variable-speed drive (VSD) feedback loops. The mechanical interface uses a 6 mm or 10 mm solid shaft with a clamping flange, or a 10 mm through-hollow shaft for direct motor coupling. Bearing life is rated at >109 revolutions under nominal radial load, making the HC20 suitable for continuous-duty applications.

As the HC20 series has entered its mature/end-of-life phase for certain sub-variants, HENGSTLER's current catalog positions the RI58-O and RI76-TD series as functional successors. However, installed base volumes in legacy plant environments ensure continued demand for HC20 spare parts and direct replacements through specialist distributors such as DriveKNMS.

HC20 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the HENGSTLER HC20 incremental encoder series. Models are organized by resolution and output type.

HC20 0100/0XX0AJ2: 100 PPR, TTL differential output, 6 mm solid shaft, 5 VDC supply, cable exit radial.

HC20 0200/0XX0AJ2: 200 PPR, TTL differential output, 6 mm solid shaft, 5 VDC supply, standard industrial cable.

HC20 0360/0XX0AJ2: 360 PPR, TTL differential output, suitable for angular position measurement in 1°/pulse applications.

HC20 0500/0XX0AJ2: 500 PPR, TTL differential output, widely used in conveyor speed control and winding tension feedback.

HC20 0512/0XX0AJ2: 512 PPR, TTL differential output, binary-compatible resolution for legacy counter card interfaces.

HC20 1000/0XX0AJ2: 1000 PPR, TTL differential output, standard resolution for general-purpose servo and inverter feedback.

HC20 1024/0XX0AJ2: 1024 PPR, TTL differential output, binary resolution standard for digital motion controllers and CNC systems.

HC20 2048/0XX0AJ2: 2048 PPR, TTL differential output, high-resolution variant for precision positioning and electronic gearing.

HC20 2500/0XX0AJ2: 2500 PPR, TTL differential output, high-resolution speed feedback for AC vector drives and spindle control. (Current SKU: HC202500/0XX0AJ2)

HC20 5000/0XX0AJ2: 5000 PPR, TTL differential output, maximum resolution variant for fine-pitch positioning and high-speed spindle applications.

HC20 1000/0XX0BJ2: 1000 PPR, HTL Push-Pull output, 10–30 VDC supply, direct interface to 24 VDC PLC high-speed counter inputs.

HC20 1024/0XX0BJ2: 1024 PPR, HTL Push-Pull output, 24 VDC compatible, standard for Siemens S7 FM350-1 counter modules.

HC20 2500/0XX0BJ2: 2500 PPR, HTL Push-Pull output, 24 VDC supply, used in crane hoist and overhead conveyor speed regulation.

HC20 1000/0XX0CJ2: 1000 PPR, HTL differential output, high noise immunity for long cable runs in electrically noisy environments (steel mills, arc furnace areas).

HC20 2500/0XX0CJ2: 2500 PPR, HTL differential output, 24 VDC, preferred for variable frequency drive (VFD) encoder feedback in pump and compressor stations.

HC20 1024/0XX0DJ2: 1024 PPR, RS422 differential output, 5 VDC, for direct interface to motion controllers with RS422 encoder input (Beckhoff, B&R, Lenze).

HC20 2500/0XX0DJ2: 2500 PPR, RS422 differential output, high-speed signal integrity for long-distance encoder cable runs up to 100 m.

Sourcing Hard-to-Find & Obsolete HC20 Parts

DriveKNMS maintains a dedicated inventory program for HENGSTLER HC20 series encoders, including variants that have been discontinued from the standard HENGSTLER production schedule. As the HC20 series transitions into its extended service phase, procurement of specific PPR/output combinations through standard distribution channels becomes increasingly unreliable, with lead times extending to 16–26 weeks or resulting in no-quote responses.

DriveKNMS sources HC20 units through a verified network of industrial surplus channels, OEM decommissioning programs, and controlled-environment storage facilities. All units are inspected for shaft runout, bearing condition, and signal output integrity prior to dispatch. For plants operating under long-term maintenance contracts (LTMA) or asset integrity programs, DriveKNMS can provide consignment stock arrangements for critical HC20 variants to eliminate unplanned downtime risk.

Customers requiring cross-reference to current HENGSTLER catalog equivalents (RI58-O, RI76-TD) or third-party functional replacements (Kübler 3700, Baumer HOG 86) can request a compatibility assessment via email.

Quality Control for the HC20 Range

Each HENGSTLER HC20 unit processed by DriveKNMS undergoes a structured inspection and functional verification protocol before shipment:

Mechanical Inspection: Shaft radial runout measured with dial indicator (tolerance: ≤0.02 mm). Bearing rotation checked for axial play and audible defects. Housing integrity and IP54 seal condition verified.

Electrical Output Verification: Unit connected to a calibrated test bench at rated supply voltage (5 VDC for TTL variants; 24 VDC for HTL/Push-Pull variants). Output channels A, B, and Z (index) verified for signal amplitude, symmetry, and phase relationship using oscilloscope. PPR count verified against rated specification using a precision tachometer reference.

Signal Integrity Test: Differential output pairs (A/A̅, B/B̅, Z/Z̅) tested for common-mode rejection and short-circuit protection compliance. Cable connector continuity and insulation resistance verified to IEC 60068 standards.

Documentation: Each unit ships with a test report confirming measured PPR, output voltage levels, and inspection date. Traceability records retained for 5 years.
