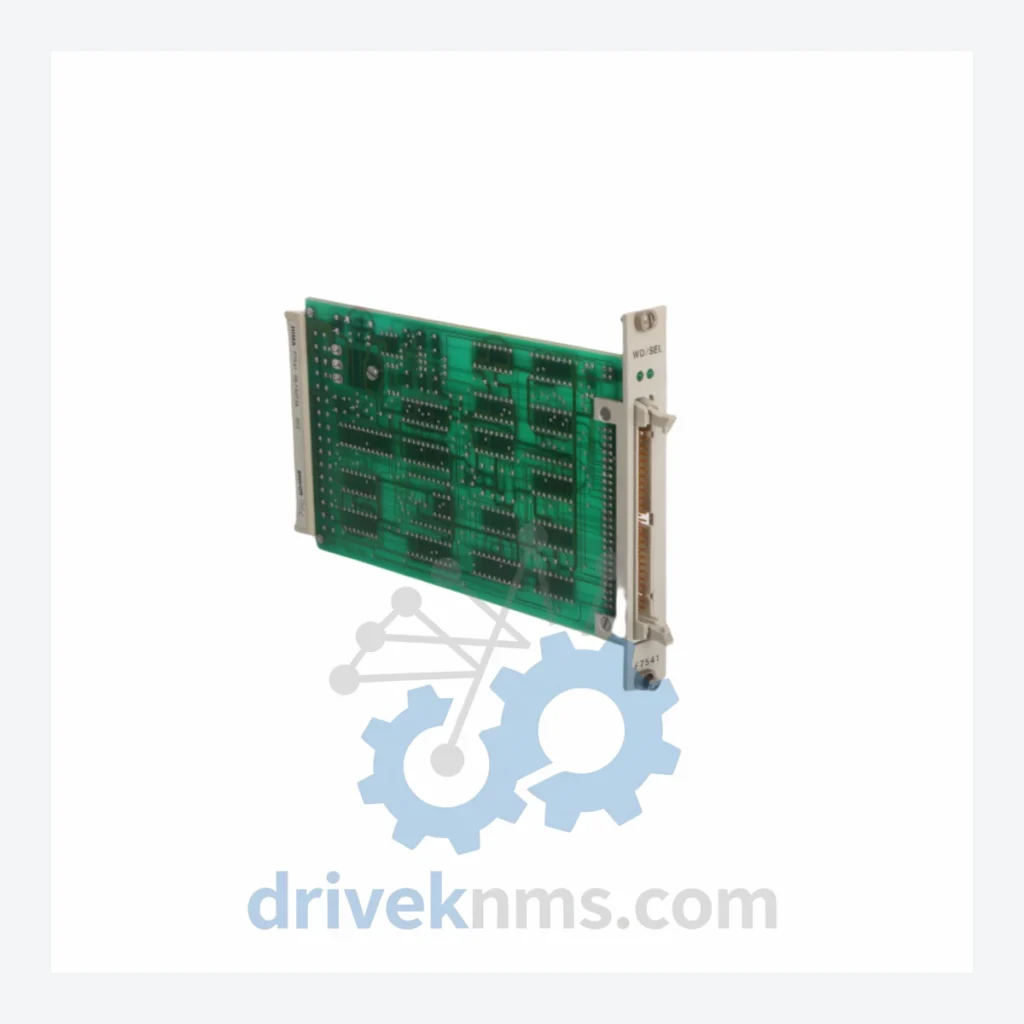

HIMA F7541 Connecting Module – Obsolete PLANAR4 Safety System Spare Part

When a HIMA F7541 Connecting Module fails in an operating safety instrumented system (SIS), the consequences extend far beyond the cost of the module itself. Plants running HIMA PLANAR4, H41q, or H51q architectures face a hard choice: locate a verified replacement unit, or initiate a full system migration. A complete SIS migration in a petrochemical or power generation facility routinely exceeds USD 2–5 million when engineering, re-validation, SIL re-certification, and production downtime are factored in. The F7541 is a discontinued component. New production has ceased. The global pool of available units shrinks with every field failure. DriveKNMS maintains sourced inventory of the F7541 specifically to serve facilities that cannot afford — or are not yet ready — to retire their HIMA legacy infrastructure.

Technical Specifications

Note: Electrical parameters not independently verified. DriveKNMS does not publish unconfirmed specifications. Contact us for datasheet support.

Solving the Discontinued Hardware Crisis

The HIMA PLANAR4 platform was engineered for high-availability, fail-safe operation in industries where a control system failure carries regulatory and human safety consequences: oil & gas terminals, chemical processing, nuclear auxiliary systems, and offshore platforms. The F7541 Connecting Module serves as a critical interface component within this architecture, enabling communication and signal routing between system backplanes and I/O assemblies.

Because the PLANAR4 platform operates on a proprietary backplane bus, there is no generic substitute for the F7541. A replacement must be the exact part number. Attempting to bridge the function with a non-OEM alternative risks SIL certification invalidation — an outcome that triggers mandatory re-validation audits and potential regulatory shutdown orders.

For plant managers operating under capital expenditure constraints, the calculus is straightforward: a verified F7541 spare extends the operational life of an existing, validated SIS installation by years. The alternative — a forced migration — consumes engineering resources, production capacity, and budget that most facilities cannot absorb on an unplanned basis.

How to extend your HIMA legacy system life by 5–10 years:

• Maintain a minimum of 2 cold-spare F7541 units per installed system. One unit covers an immediate failure; the second covers the repair cycle window.
• Conduct annual visual inspection of installed modules: check for electrolytic capacitor bulging, connector pin oxidation, and backplane seating integrity.
• Document firmware revision levels across all installed modules. Mixed firmware revisions within a PLANAR4 rack can introduce latent compatibility faults.
• Engage a qualified SIS maintenance contractor to perform periodic functional testing per IEC 61511 proof test intervals — this preserves SIL rating without requiring hardware replacement.
• Establish a vendor-managed spare parts agreement with a specialist supplier (such as DriveKNMS) to ensure priority access to F7541 units before your installed stock is depleted.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step qualification process to all F7541 units before dispatch. This process is designed specifically for legacy safety system components where field failure is not an acceptable outcome.

• Step 1 – Visual & Mechanical Inspection: Full examination of PCB surface, connector pins, and housing. Units with physical damage, corrosion, or evidence of prior repair are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Capacitors are the primary age-related failure point in modules of this generation. Each unit is assessed for capacitor bulging, leakage, and ESR deviation. Units with degraded capacitors are either recapped by qualified technicians or rejected.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and disclosed to the buyer prior to shipment. This allows the receiving facility to confirm compatibility with their installed system revision.
• Step 4 – Connector Pin & Backplane Interface Check: All edge connectors and backplane interface pins are inspected for oxidation, mechanical deformation, and contact resistance. Affected contacts are cleaned using approved non-residue methods.
• Step 5 – Functional Bench Test: Where test fixtures are available for the F7541, units undergo powered functional verification. Test results are documented and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The F7541 installs directly into the existing PLANAR4 rack slot. No rack modification, no re-wiring.
• No re-programming required: Configuration is held at the system controller level. Replacing the F7541 does not require re-engineering the safety logic.
• SIL-compatible maintenance path: Using an OEM-equivalent spare preserves the hardware basis of the existing SIL certification, avoiding re-validation costs.
• Avoids engineering reconstruction costs: A forced platform migration requires new hardware procurement, system design, FAT/SAT testing, and SIL re-certification — costs that a verified spare eliminates entirely.
• Immediate dispatch: DriveKNMS ships from existing inventory. No lead time associated with OEM production queues.

FAQ

Q: What warranty applies to an obsolete part like the F7541?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available under long-term supply agreements. Contact us to discuss your facility's requirements.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All F7541 units supplied by DriveKNMS are sourced from verified industrial decommissioning channels or authorized surplus distributors. We do not source from unverified secondary markets. Inspection documentation is available upon request.

Q: Should I purchase more than one unit?
A: For any facility with a single installed F7541, holding a minimum of one cold spare is standard practice under IEC 61511 lifecycle management guidelines. For multi-rack installations, a ratio of one spare per three installed units is a commonly applied benchmark. Given the declining availability of this part, purchasing additional units now is a lower-risk strategy than sourcing under emergency conditions.

Q: Can DriveKNMS support long-term spare parts management for our HIMA installation?
A: Yes. DriveKNMS offers reserved inventory arrangements for facilities with ongoing HIMA legacy system maintenance requirements. Contact us to discuss a structured supply agreement.
