HIMA F8000 Series: Comprehensive Module Range and Technical Overview

The HIMA F8000 series represents one of the most widely deployed safety instrumented system (SIS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and refinery process units, the F8000 architecture underpins Safety Integrity Level (SIL) 3-rated applications where failure is not an option. Its modular backplane design, redundant CPU architecture, and deterministic bus communication have made it the reference standard for functional safety in process automation since the mid-1990s. The series encompasses the HIMax and HIMatrix sub-platforms, both of which share a common engineering environment (SILworX) and a compatible I/O philosophy, enabling phased migration without full system replacement.

The Evolution of F8000 Architecture

The F8000 series originated as HIMA's response to the growing demand for IEC 61508-certified safety controllers in the late 1990s. Early modules operated on a proprietary HIMA Safety Bus (HISBUS), a deterministic token-ring protocol designed to guarantee cycle-time integrity under fault conditions. First-generation CPU modules such as the F8650E and F8651E established the dual-channel, cross-checking processor model that remains the architectural foundation of the platform today.

With the transition to the HIMax platform in the 2000s, HIMA introduced a scalable backplane capable of hosting up to 64 I/O modules per system, alongside a shift toward standard industrial Ethernet (ProfiSafe, Modbus TCP, OPC UA) for supervisory integration. The F8627 Ethernet Communication Module is a direct product of this evolution — it bridges the legacy HISBUS backplane environment with modern TCP/IP plant networks, enabling integration with DCS historians, SCADA systems, and safety management platforms without requiring CPU replacement.

By the 2010s, the F8000 series entered a mature lifecycle phase. HIMA continued to support the installed base while directing new projects toward the HIMax X-MIO platform. This lifecycle status makes sourcing of original F8000 spare parts — particularly communication and I/O modules — a critical operational concern for asset owners committed to long-term plant continuity.

F8000 Full Catalog & Functionalities (SKU List)

CPU & Processor Modules

• F8650E: Dual-channel SIL 3 CPU module, HISBUS master, 32 MB program memory
• F8651E: Enhanced CPU with extended diagnostic coverage, supports hot-standby redundancy
• F8652: High-speed processor module for fast-cycle safety applications (<10 ms)
• F8653: Redundant CPU pair module, integrated watchdog, SIL 3 certified

Digital Input (DI) Modules

• F8704: 16-channel 24 VDC digital input, SIL 3, short-circuit detection per channel
• F8705: 32-channel 24 VDC DI module, high-density format, diagnostic pulse output
• F8708: 16-channel 120 VAC digital input, galvanic isolation, SIL 2/3
• F8710: 8-channel NAMUR sensor input, intrinsically safe, Ex ia IIC T4 rated

Digital Output (DO) Modules

• F8720: 16-channel 24 VDC digital output, 0.5 A per channel, SIL 3 with readback
• F8721: 8-channel relay output module, 230 VAC / 5 A, SIL 2 rated
• F8722: 16-channel transistor output, short-circuit protected, diagnostic per channel

Analog Input (AI) Modules

• F8760: 8-channel 4–20 mA analog input, 16-bit resolution, HART pass-through
• F8761: 4-channel thermocouple/RTD input, cold junction compensation, SIL 2
• F8762: 8-channel voltage/current AI, configurable range ±10 V / 0–20 mA

Communication & Ethernet Modules

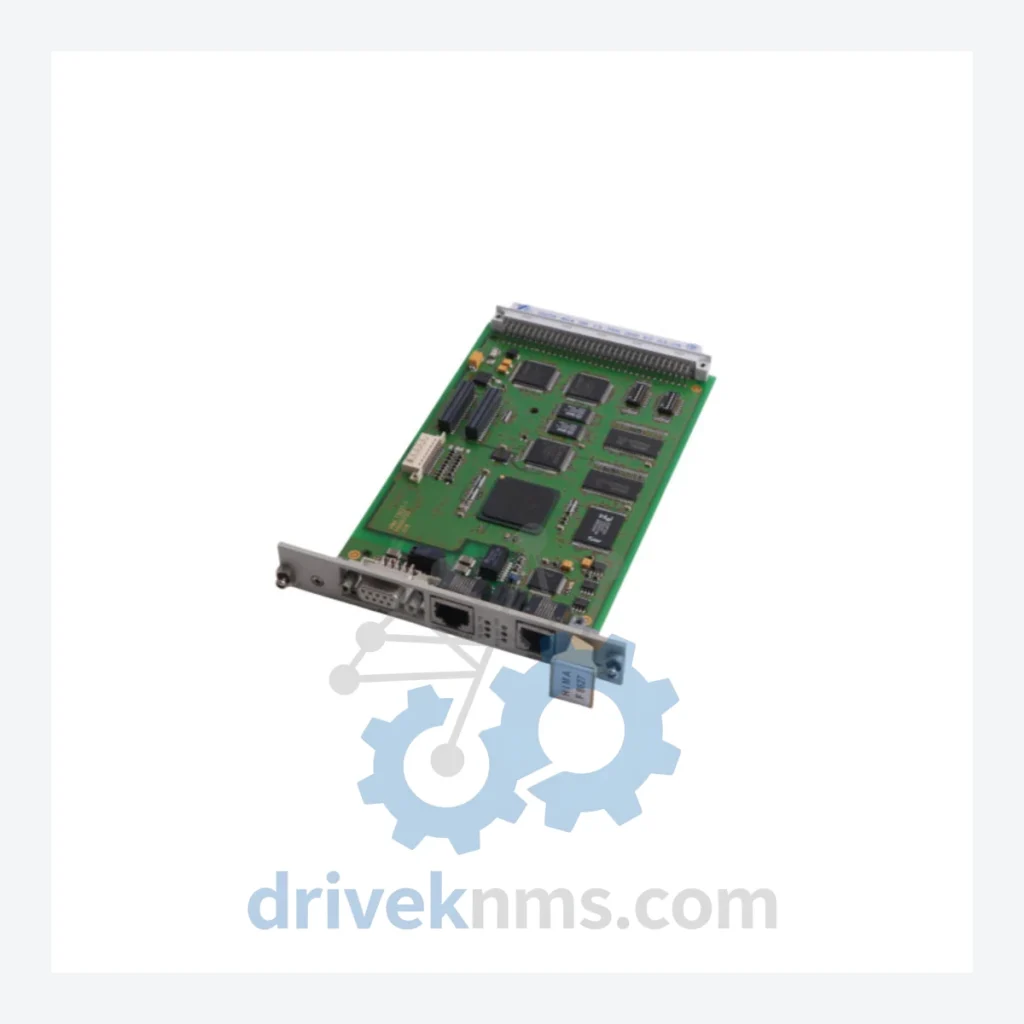

• F8627: Ethernet Communication Module, 10/100 Mbps, Modbus TCP / OPC DA gateway, dual RJ45 ports, SIL 3 system integration
• F8628: PROFIBUS DP master/slave communication module, 12 Mbps, up to 125 nodes
• F8621: Serial communication module, RS-232/RS-485, configurable baud rate up to 115.2 kbps

Power Supply Modules

• F8601: 24 VDC system power supply module, 10 A output, redundancy-capable
• F8602: Redundant power supply module, automatic switchover <1 ms, status relay output

Sourcing Hard-to-Find & Obsolete F8000 Parts

The HIMA F8000 series has entered a mature-to-end-of-active-production lifecycle for many module types. OEM lead times for original stock are extended or indefinite, and direct factory support for legacy variants is limited. DriveKNMS maintains a dedicated inventory of F8000 series modules — including communication adapters, I/O cards, and CPU assemblies — sourced through certified industrial channels. All units are subject to pre-shipment functional verification. For plant operators running long-term maintenance contracts on F8000-based SIS installations, DriveKNMS provides lifecycle extension support: identifying cross-compatible replacement modules, advising on firmware compatibility between module generations, and supplying tested spare units with full traceability documentation. Inquiries for bulk spare part packages, annual maintenance contracts, or emergency replacement orders are handled directly by our technical sales team.

Quality Control for the F8000 Range

F8000 series modules present specific test challenges due to their proprietary HISBUS backplane protocol and dual-channel diagnostic architecture. DriveKNMS applies a structured verification process to all F8000 units prior to dispatch. Communication modules such as the F8627 are tested for Ethernet port integrity, MAC address validity, and Modbus TCP frame response under simulated load. CPU modules undergo power-on self-test (POST) verification and memory integrity checks. I/O modules are bench-tested against channel-by-channel signal injection to confirm input threshold accuracy and output switching response. All modules are inspected for capacitor condition, connector pin integrity, and conformal coating status. Units that do not pass full functional verification are quarantined and not offered for sale. Test records are retained and available upon request for regulated industries.
