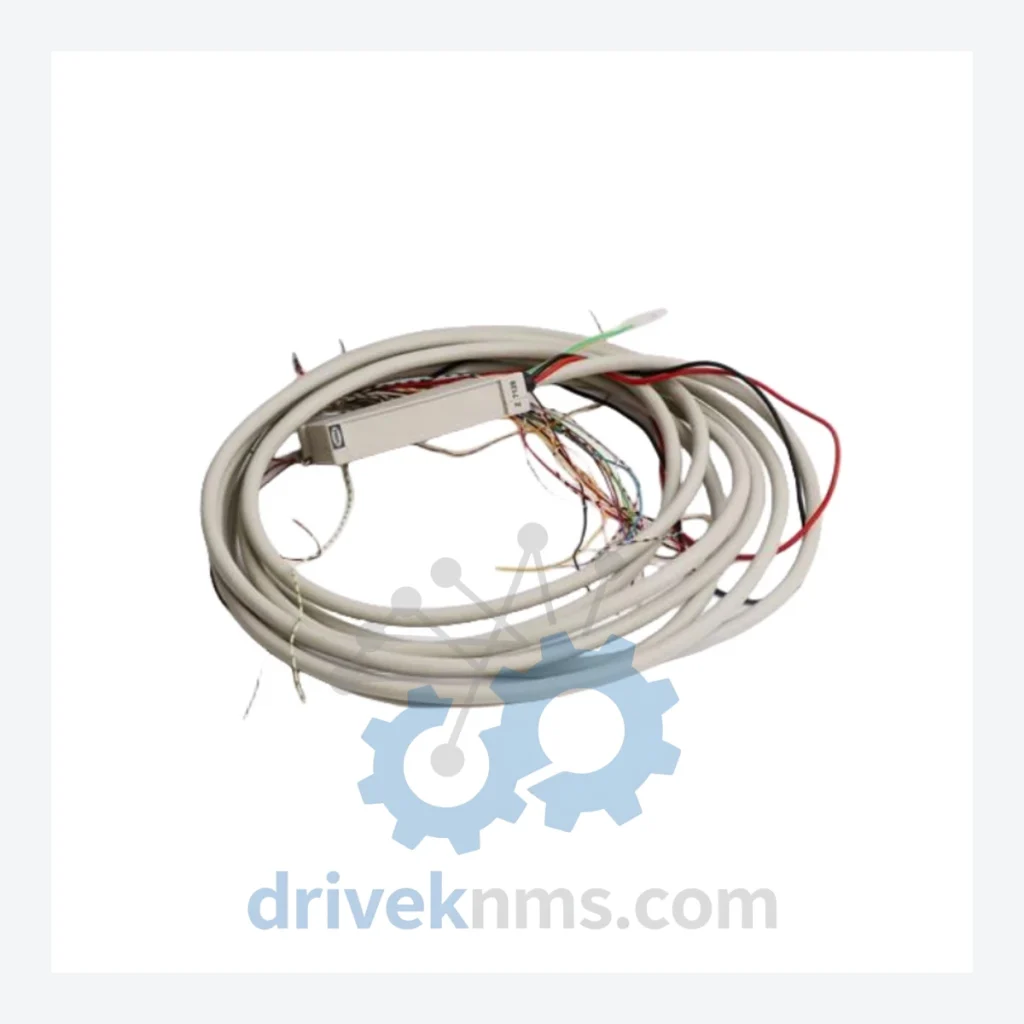

HIMA Z7000 Series Modules — Z7128 Cable Plug

Technical Dossier

Product Details And Specifications

HIMA Z7000 Series: Comprehensive Module Range and Technical Overview

The HIMA Z7000 series represents one of the most widely deployed safety-rated I/O and connectivity module families in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and refinery control rooms, the Z7000 range operates as the physical interface layer between HIMA's HIMax and HIMatrix safety controllers and field instrumentation. Its modular backplane architecture supports SIL 3 (IEC 61508) certified operations, making it a mandatory component in safety instrumented systems (SIS) where process shutdown, emergency depressurization, and burner management logic are executed. The series has accumulated decades of field hours in facilities operated by major energy companies across Europe, the Middle East, and Asia-Pacific, establishing it as a de facto standard for safety-critical connectivity in brownfield and greenfield installations alike.

The Evolution of Z7000 Architecture

The Z7000 series was introduced as part of HIMA's transition from relay-based safety logic to programmable electronic safety systems in the late 1990s. Early variants were designed for the HIMA H41q and H51q controller families, using proprietary backplane bus protocols with fixed I/O addressing. As HIMA migrated its platform to the HIMax architecture (introduced circa 2005), the Z7000 series was re-engineered to support hot-swap module replacement, redundant power distribution, and deterministic bus cycle times compatible with IEC 61784-3 functional safety communication profiles.

By the 2010s, the Z7000 range had expanded to include dedicated cable plug assemblies, termination modules, and shielded connector sets — all designed to maintain signal integrity in high-EMI industrial environments. The Z7128, for example, is a pre-wired cable plug assembly that eliminates field wiring errors at the module termination point, a critical reliability factor in SIL 3 loops. Current Z7000 components remain backward-compatible with HIMax I/O sub-racks, though several early-generation modules have reached end-of-production status and are now sourced exclusively through specialist distributors.

Z7000 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed components within the HIMA Z7000 series. Modules are classified by functional category:

Cable Plug & Connector Assemblies

• Z7128: 16-channel pre-wired cable plug for Z7000 I/O sub-rack termination, field-side connector
• Z7116: 16-pin cable plug assembly, compatible with digital input modules, screw-clamp termination
• Z7117: 16-pin cable plug with spring-clamp termination, vibration-resistant variant
• Z7118: 32-channel cable plug assembly for high-density I/O termination panels
• Z7119: Shielded cable plug with integrated EMC drain wire, for analog signal loops

Digital Input (DI) Modules

• Z7001: 16-channel 24 VDC digital input module, SIL 3 rated, single-channel architecture
• Z7002: 16-channel 24 VDC DI module with diagnostic pulse testing, for de-energize-to-trip loops
• Z7003: 8-channel 120 VAC digital input module, for legacy field device integration
• Z7004: 16-channel DI module with NAMUR sensor interface, intrinsically safe barrier compatible

Digital Output (DO) Modules

• Z7011: 8-channel 24 VDC digital output module, 2A per channel, SIL 3 certified
• Z7012: 8-channel relay output module, potential-free contacts, for solenoid valve actuation
• Z7013: 16-channel 24 VDC DO module, high-side switching, short-circuit protected

Analog Input (AI) Modules

• Z7021: 8-channel 4–20 mA analog input module, 16-bit resolution, HART pass-through
• Z7022: 4-channel thermocouple/RTD input module, multi-sensor type configurable
• Z7023: 8-channel AI module with redundant A/D conversion for SIL 2/3 analog loops

Power & Termination

• Z7050: Sub-rack power supply module, 24 VDC input, redundant feed capable
• Z7051: Redundant power distribution module for Z7000 backplane, load-sharing architecture

Sourcing Hard-to-Find & Obsolete Z7000 Parts

Several Z7000 series modules — particularly early DI and relay output variants — have been discontinued by HIMA as the HIMax platform matures. However, installed base volumes in long-lifecycle industries (nuclear, refining, offshore) mean that demand for these components persists well beyond their production end dates. DriveKNMS maintains a dedicated inventory of new-surplus, refurbished, and tested Z7000 modules sourced from decommissioned plant equipment, authorized distributor overstock, and controlled secondary market channels.

For end-users operating under IEC 61511 lifecycle management obligations, DriveKNMS provides documentation packages including test records, traceability certificates, and functional verification reports to support safety case maintenance. Customers requiring long-term supply agreements for Z7000 spares — covering 5 to 15-year maintenance windows — are invited to contact our technical sales team to discuss framework contracts.

Quality Control for the Z7000 Range

HIMA Z7000 modules incorporate proprietary backplane bus interfaces and multi-layer PCB assemblies that require specialized test procedures beyond standard continuity checks. DriveKNMS applies the following verification protocol to all Z7000 units processed through its facility:

• Backplane bus communication test: each module is seated in a live Z7000 sub-rack and polled via HIMA's diagnostic software to confirm correct module identification, channel mapping, and error-free bus communication.
• Channel-level functional test: all I/O channels are exercised at rated voltage and current. DI modules are tested with both energized and de-energized inputs. DO modules are loaded to 80% of rated current per channel.
• Analog accuracy verification: AI modules are calibrated against a traceable reference source. Zero, mid-scale, and full-scale points are verified to within ±0.1% of rated range.
• Thermal soak: units are operated at 55°C for a minimum of 4 hours to screen for latent component failures.
• Visual and mechanical inspection: connector pins, backplane edge connectors, and module locking mechanisms are inspected under magnification. Cable plug assemblies (including Z7128) are tested for contact resistance and mechanical retention force.
