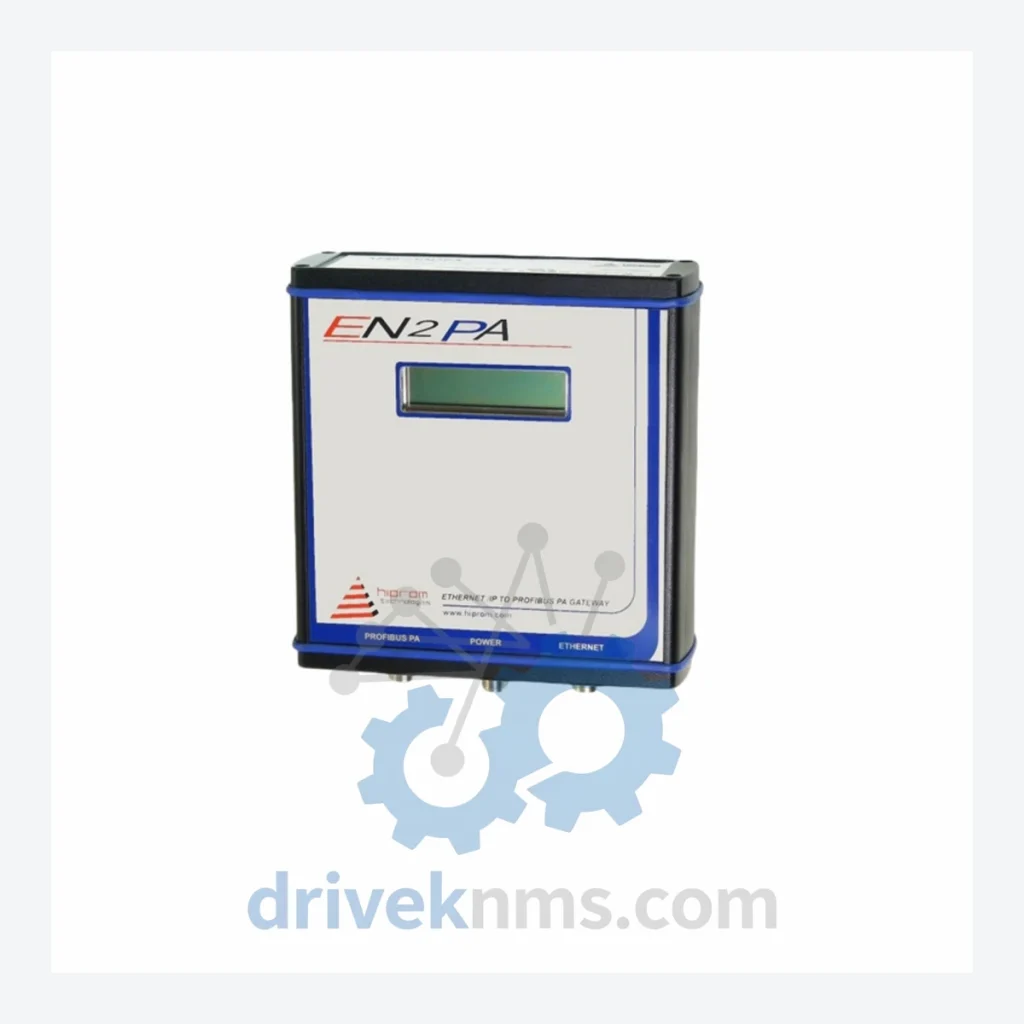

HIPROM 1788HP-EN2PA Linking Device – Obsolete ControlNet/PROFIBUS Spare Part

When a HIPROM 1788HP-EN2PA fails in a live production environment, the consequences are not limited to a single module replacement. This device sits at the communication backbone of ControlNet-to-PROFIBUS architectures — systems that, in many facilities, have been running continuously for 15 to 20 years. A single failed linking device can bring an entire PROFIBUS segment offline, halting production lines that may cost $10,000 to $50,000 per hour in downtime. The alternative — a full system migration to a modern fieldbus or Ethernet-based architecture — routinely demands engineering budgets of $500,000 to several million dollars, plus months of validation and requalification.

DriveKNMS holds verified stock of the 1788HP-EN2PA. For plant managers and maintenance engineers operating legacy Rockwell or HIPROM-integrated systems, this is not a commodity purchase. It is an asset protection decision.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on product family documentation. Do not rely on unconfirmed values for safety-critical applications.

Solving the Discontinued Hardware Crisis

The 1788HP-EN2PA was designed to bridge two fieldbus worlds that rarely coexist in modern installations: ControlNet, a deterministic, time-division-multiplexed network favored in Rockwell-heavy process plants, and PROFIBUS DP, the dominant fieldbus in European and Asian manufacturing automation. Facilities that built their control architecture around this combination in the late 1990s and 2000s now face a structural problem: neither HIPROM nor Rockwell offers a direct, drop-in successor for this specific gateway function.

Replacing the communication architecture means re-engineering the ControlNet segment, re-mapping all PROFIBUS slave addresses, rewriting PLC ladder logic or function block programs, and revalidating the entire control loop — a process that is neither fast nor inexpensive. For a plant running three shifts, the engineering downtime alone can exceed the cost of sourcing ten spare 1788HP-EN2PA units.

The rational strategy for asset-conscious operations is straightforward: maintain a buffer stock of this module. One unit in active service, one unit on the shelf. This approach has extended the operational life of comparable legacy gateway hardware by 5 to 10 years in documented industrial maintenance programs, deferring capital expenditure until a planned, budgeted migration cycle — not an emergency forced by a single component failure.

Facilities running Rockwell ControlLogix or PLC-5 systems with PROFIBUS DP field devices — drives, valve positioners, remote I/O — are the primary users of this module. If your plant falls into this category and you have not yet secured a spare, the risk exposure is real and quantifiable.

Condition & Reliability Assurance

Sourcing obsolete industrial hardware carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every 1788HP-EN2PA unit before it leaves our facility:

• Step 1 – Visual and Physical Inspection: Full examination of housing integrity, connector pins, and PCB surface. Units with physical damage, corrosion, or pin deformation are rejected at intake.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in hardware of this vintage. Each unit is inspected for capacitor bulging, leakage, or ESR deviation. Units with suspect capacitors are flagged and not sold as-is.
• Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatibility requirements for the target ControlNet and PROFIBUS DP environments.
• Step 4 – Pin and Connector Integrity Check: BNC and PROFIBUS DB9 connectors are inspected for oxidation, bent pins, and mechanical wear. Contact surfaces are cleaned where required.
• Step 5 – Functional Power-On Test: Units are powered and observed for normal initialization behavior. Communication handshake testing is performed where test infrastructure permits.

Units are shipped in anti-static packaging with desiccant. Condition grade (New, Refurbished-Grade A, or Tested-Used) is disclosed on the invoice.

Key Features for System Maintenance

• Drop-in Replacement: The 1788HP-EN2PA installs into the existing ControlNet/PROFIBUS infrastructure without changes to network topology or slave addressing, provided the replacement unit carries the same firmware revision.
• No PLC Reprogramming Required: The gateway's configuration is stored in the device itself or in the ControlNet scanner. A correctly configured replacement does not require PLC logic modification.
• Avoids Engineering Reconstruction Costs: Substituting this module preserves the existing validated control architecture. There is no need to engage a systems integrator for network redesign.
• Immediate Deployment: Stock units are available for same-week dispatch. For facilities with active production risk, contact us for expedited handling.

FAQ

Q: What warranty applies to an obsolete part like the 1788HP-EN2PA?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Warranty terms are stated on the invoice and vary by unit condition grade.

Q: How do I know the unit is genuine and not counterfeit?
A: All units are sourced through documented industrial surplus and decommissioning channels. We do not source from unverified secondary markets. Traceability documentation is available on request.

Q: Should I buy more than one unit?
A: For any system where this module is a single point of failure, holding a minimum of one spare is standard practice. Given that stock availability for obsolete parts is unpredictable, purchasing two units — one active, one reserve — is the approach most maintenance managers adopt once they have experienced an unplanned outage caused by an unavailable spare.

Q: Can you source additional units if I need more than you have in stock?
A: Contact us with your quantity requirement. We maintain sourcing relationships across industrial surplus networks and can often locate additional units, though lead times vary.
